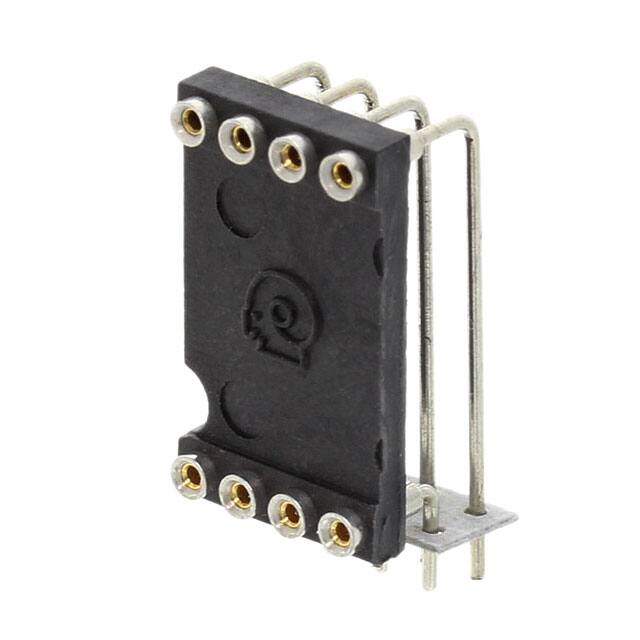

08-6820-90C [Aries Electronics]

Name: 08-6820-90C
Brand: Aries Electronics
SKU: 08-6820-90C
Availability: InStock

Part No:

08-6820-90C

Category:

IC & Component Sockets

Manufacturer:

Aries Electronics

RoHS Status:

Datasheet:

Stock Status:

Available for RFQ

Pricing:

Request Volume Pricing

Quote Response:

Within 24 Hours

Shipping:

In-stock parts ship in 1–2 business days

Specification

Type

Parameter

Factory Lead Time

6 Weeks

Mount

Horizontal, Through Hole

Mounting Type

Through Hole, Right Angle, Horizontal

Housing Material

Polyamide (PA46), Nylon 4/6, Glass Filled

Number of Positions or Pins (Grid)

8 (2 x 4)

Contact Material - Mating

Beryllium Copper

Contact Material - Post

Brass

Operating Temperature

-55°C~105°C

Packaging

Bulk

Published

2007

Feature

Closed Frame

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Termination

Solder

ECCN Code

EAR99

Type

DIP, 0.6 (15.24mm) Row Spacing

Number of Positions

8

Additional Feature

STANDARD: UL 94V-0

Contact Finish - Mating

Gold

Current Rating

3A

Pitch - Mating

0.100 2.54mm

Number of Contacts

8

Contact Finish - Post

Tin

Lead Length

3.556mm

Termination Post Length

0.140 3.56mm

Pitch - Post

0.100 2.54mm

Material Flammability Rating

UL94 V-0

RoHS Status

RoHS Compliant

Flammability Rating

UL94 V-0

Lead Free

Documents

Datasheets:

800 Series, Collet Horizontal

Environmental Information:

Areies Electronics RoHS 3 Cert

Product FAQ

1. Is 08-6820-90C available for RFQ?

Yes. 08-6820-90C by Aries Electronics is available for RFQ. Submit your required quantity and our team will confirm real-time stock, lead time, and volume pricing.

2. Why is there no fixed price for 08-6820-90C?

Pricing for 08-6820-90C can vary by order quantity, market availability, date code, packaging, and delivery destination. Request a quote to receive the latest volume pricing.

3. What are the key specifications of 08-6820-90C?

08-6820-90C is a Aries Electronics IC & Component Sockets with Packaging: Bulk and Number of Positions or Pins (Grid): 8 (2 x 4) and Moisture Sensitivity Level (MSL): 1 (Unlimited). Review the product details or submit an RFQ if you need confirmation before purchase.

4. How fast can I get a quote for 08-6820-90C?

Our sales team usually responds within 24 hours after receiving your RFQ. The quote may include stock status, unit price, lead time, shipping options, and available alternatives.

5. How soon can 08-6820-90C be shipped?

If stock is confirmed, in-stock parts can usually ship within 1–2 business days. Final lead time depends on quantity, stock source, and delivery destination.

6. Can you suggest alternatives to 08-6820-90C?

Yes. If 08-6820-90C is unavailable, obsolete, or does not meet your required lead time, we can help check similar Aries Electronics IC & Component Sockets parts or compatible alternatives.
