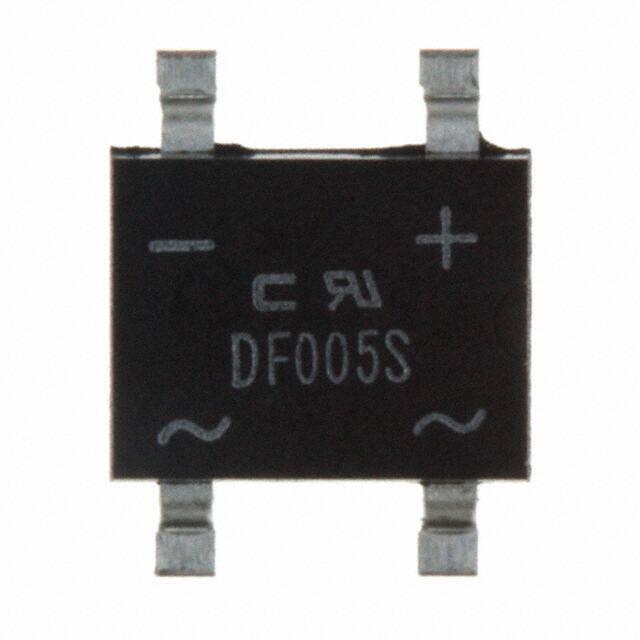

DF005S-G [Comchip Technology]

DF005S-G Overview

By using the base part number DF005, we can identify a number of related components.Basically, it is a 4-SMD, Gull Wing package-type electronic component.Monitoring the reverse leakage current and not allowing it to exceed10?A is necessary.There is no mounting method for the device.At -55°C~150°C TJ, it operates normally.In terms of output voltage, 1A is the maximum voltage that can be supported.Monitor surge current and prevent it from exceeding 50A.

DF005S-G Features

4-SMD, Gull Wing package
operating at a temperature of -55°C~150°C TJ
the maximum output voltage of 1A

DF005S-G Applications

There are a lot of Comchip Technology
DF005S-G applications of bridge rectifiers.

• Electrically isolated aluminum case
• Motor controls ? Low Voltage and Medium Voltage converters
• SCR power bridges for solid state starters
• SCR and diode based input rectifiers
• Crowbar systems for motor drives
• Wind power (alternative energy) ? Converters available as diodes, SCRs or IGBTs
• Transportation ? Traction rectifiers and auxiliary rectifiers
• Inductive heating ? Input rectifiers
• Welding systems ? Input rectifiers and fast recovery diodes
• Uninterruptible power supplies ? SCR transfer switches and input rectifiers
