    PD204-6B [EVERLIGHT]

    PD204-6B
    PD204-6B

    Part No:

    PD204-6B

    Category:

    Optical Detectors & Sensors

    Manufacturer:

    EVERLIGHT

    Description:

    PD204-6B is a high speed and high sensitive PIN photodiode in a standard 3Φ plastic package. The device is matched to infrared emitting diode.

    RoHS Status:

    Datasheet:

    Stock Status:

    Available for RFQ

    Pricing:

    Request Volume Pricing

    Quote Response:

    Within 24 Hours

    Shipping:

    In-stock parts ship in 1–2 business days

    Specification

    Type
    Parameter
    Power Dissipation
    150mW
    Soldering Temperature
    260°C
    Rise Time
    6 ns
    Fall Time
    6 ns
    Reverse Voltage
    32V
    Short Circuit Current
    3.0µA
    Operating Temperature
    -25°C ~ +85°C
    RoHS Status
    RoHS Compliant
    Storage Temperature
    -40°C ~ +85°C
    RoHS Status
    RoHS Compliant
    Package
    3Φ plastic package
    Open Circuit Voltage
    0.42V
    Reverse Breakdown Voltage
    32V
    Reverse Breakdown Voltage Typ
    170V
    Reverse Dark Current
    10 nA
    Reverse Light Current Max
    3.0µA
    Reverse Light Current Min
    1.0µA
    Spectral Bandwidth Max
    1100 nm
    Spectral Bandwidth Min
    840 nm
    Total Capacitance
    5pF
    Wavelength Peak Sensitivity
    940 nm

    Products Detail

    High speed and high sensitive PIN photodiode in a standard 3Φ plastic package. Features include fast response time, high photo sensitivity, small junction capacitance, Pb free construction, and RoHS compliance. Matched to infrared emitting diode for optimal performance.

    Key Features

    • Fast response time, High photo sensitivity, Small junction capacitance, Pb free, RoHS compliant

    Application scenarios

    • Automatic door sensor
    • Copier
    • Game machine

    Documents

    PCN Packaging:

    Anti-Static Pkg Update 19/Dec/2016

    Datasheets:

    PD204-6B-Everlight-datasheet-17566039.pdfPD204-6B-Everlight-datasheet-101745827.pdf
    Product FAQ

    1. Is PD204-6B available for RFQ?

    Yes. PD204-6B by EVERLIGHT is available for RFQ. Submit your required quantity and our team will confirm real-time stock, lead time, and volume pricing.

    2. Why is there no fixed price for PD204-6B?

    Pricing for PD204-6B can vary by order quantity, market availability, date code, packaging, and delivery destination. Request a quote to receive the latest volume pricing.

    3. What are the key specifications of PD204-6B?

    PD204-6B is a EVERLIGHT Optical Detectors & Sensors with Reverse Breakdown Voltage Typ: 170V and Wavelength Peak Sensitivity: 940 nm. Review the product details or submit an RFQ if you need confirmation before purchase.

    4. How fast can I get a quote for PD204-6B?

    Our sales team usually responds within 24 hours after receiving your RFQ. The quote may include stock status, unit price, lead time, shipping options, and available alternatives.

    5. How soon can PD204-6B be shipped?

    If stock is confirmed, in-stock parts can usually ship within 1–2 business days. Final lead time depends on quantity, stock source, and delivery destination.

    6. Can you suggest alternatives to PD204-6B?

    Yes. If PD204-6B is unavailable, obsolete, or does not meet your required lead time, we can help check similar EVERLIGHT Optical Detectors & Sensors parts or compatible alternatives.

    RFQ

    Part Number:

    PD204-6B

    Manufacturer:

    EVERLIGHT

    Looking for Pricing? Contact us for volume pricing.

    Shipping & Warranty

    Fast Dispatch: Ships in 5-7 days(in-stock parts within 1-2 days)

    Unishop Global Export: 1-7 days, $40.00

    Guaranteed Delivery: Door-to-door in 30 days

    Compliant Worldwide Shipping: DHL, FedEx, SF, and UPS.

    Feature

    • 30-Day Guarantee
      30-Day Guarantee
    • Fasted Delivery
      Fasted Delivery
    • Hassle-Free Returns
      Hassle-Free Returns
    • Secure payment method
      Secure payment method

    IMPORTANT NOTICE

    Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.

    Featured Product

    BEST SELL
    MPU-6000EVB

    MPU-6000EVB

    TDK

    BEST SELL
    MT48LC4M32B2P-6A IT:L

    MT48LC4M32B2P-6A IT:L

    Micron

    BEST SELL
    TMS320F28334ZJZS

    TMS320F28334ZJZS

    Texas Instruments

    BEST SELL
    89H16NT16G2ZCHLG

    89H16NT16G2ZCHLG

    RENESAS

    BEST SELL
    VN7050AJTR

    VN7050AJTR

    STMicroelectronics

    BEST SELL
    MTFC2GMDEA-0M WT A

    MTFC2GMDEA-0M WT A

    Micron

    BEST SELL
    K4B4G1646E-BYK0

    K4B4G1646E-BYK0

    SAMSUNG

    BEST SELL
    K4FBE3D4HM-THCL

    K4FBE3D4HM-THCL

    SAMSUNG

    BEST SELL
    M25P80-VMW6TG

    M25P80-VMW6TG

    Micron

    BEST SELL
    MT47H128M16RT-25E IT:C

    MT47H128M16RT-25E IT:C

    Micron

    Related Information
    • Part Number
      Manufacturer
      Stock Status
      Pricing
      RoHS/Datasheet
    • PT19-315B/TR8
      EVERLIGHT
      Available for RFQ
      Request Volume Pricing
      -
    • PT928-6C
      EVERLIGHT
      Available for RFQ
      Request Volume Pricing
      -
    • EL3032S(TB)
      EVERLIGHT
      Available for RFQ
      Request Volume Pricing
    • PD333-3B/L3
      EVERLIGHT
      Available for RFQ
      Request Volume Pricing
      -
    • EAPLP05RDDA1
      EVERLIGHT
      Available for RFQ
      Request Volume Pricing
    • EAPST2012A0
      EVERLIGHT
      Available for RFQ
      Request Volume Pricing
      -
    • PT204-6B(BY)(K)
      EVERLIGHT
      Available for RFQ
      Request Volume Pricing
      -
    • EL3042S(TB)-V
      EVERLIGHT
      Available for RFQ
      Request Volume Pricing
    • PT968-8C(6-1)
      EVERLIGHT
      Available for RFQ
      Request Volume Pricing
      -
    • PT204-6B
      EVERLIGHT
      Available for RFQ
      Request Volume Pricing

    EAPST3215Z0

    EAPST3215Z0

    EVERLIGHT

    PD333-3B/L4

    PD333-3B/L4

    EVERLIGHT

    EAPSV3026A0

    EAPSV3026A0

    EVERLIGHT

    EAPLP05RDDA1

    EAPLP05RDDA1

    EVERLIGHT

    PD234-6B/L3

    PD234-6B/L3

    EVERLIGHT

    PT908-7C(BIN4)

    PT908-7C(BIN4)

    EVERLIGHT

    EAPDLP05RDDA0

    EAPDLP05RDDA0

    EVERLIGHT

    PT11-21C/L41/TR8

    PT11-21C/L41/TR8

    EVERLIGHT

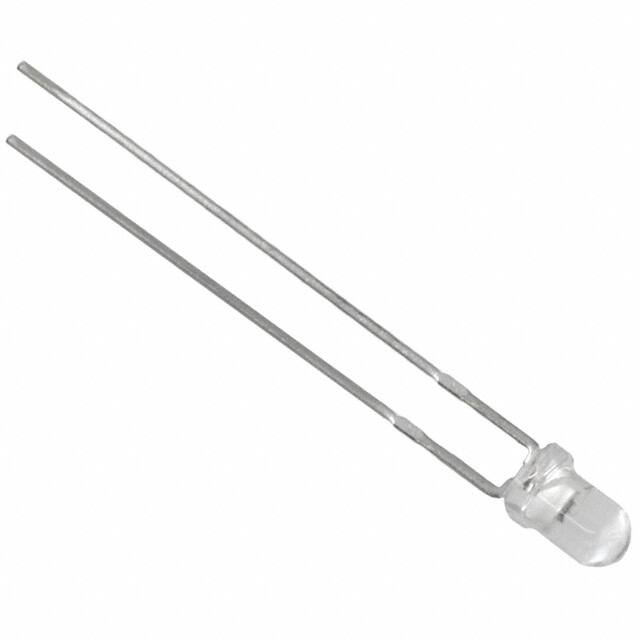

    PD204-6C
