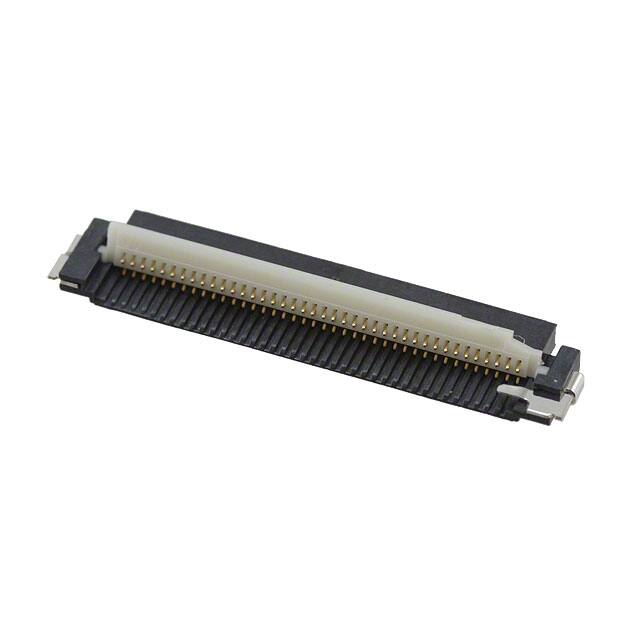

    FA5S040HP1 [JAE]

    FA5S040HP1
    FA5S040HP1

    Part No:

    FA5S040HP1

    Category:

    FFC / FPC

    Manufacturer:

    JAE

    Description:

    FA5 Series FPC Contacts, Bottom Strip 0.020 0.50mm Solder 40 Positions Surface Mount, Right Angle Gold -40°C~85°C 0.8A per Contact

    RoHS Status:

    Product FAQ

    1. Is FA5S040HP1 available for RFQ?

    Yes. FA5S040HP1 by JAE is available for RFQ. Submit your required quantity and our team will confirm real-time stock, lead time, and volume pricing.

    2. Why is there no fixed price for FA5S040HP1?

    Pricing for FA5S040HP1 can vary by order quantity, market availability, date code, packaging, and delivery destination. Request a quote to receive the latest volume pricing.

    3. What are the key specifications of FA5S040HP1?

    FA5S040HP1 is a JAE FFC / FPC with Packaging: Strip and Moisture Sensitivity Level (MSL): 1 (Unlimited) and Material Flammability Rating: UL94 V-0. Review the product details or submit an RFQ if you need confirmation before purchase.

    4. How fast can I get a quote for FA5S040HP1?

    Our sales team usually responds within 24 hours after receiving your RFQ. The quote may include stock status, unit price, lead time, shipping options, and available alternatives.

    5. How soon can FA5S040HP1 be shipped?

    If stock is confirmed, in-stock parts can usually ship within 1–2 business days. Final lead time depends on quantity, stock source, and delivery destination.

    6. Can you suggest alternatives to FA5S040HP1?

    Yes. If FA5S040HP1 is unavailable, obsolete, or does not meet your required lead time, we can help check similar JAE FFC / FPC parts or compatible alternatives.

    RFQ

    Part Number:

    FA5S040HP1

    Manufacturer:

    JAE

    Looking for Pricing? Contact us for volume pricing.

    IMPORTANT NOTICE

    Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.

    Featured Product

    Datasheet:

    Stock Status:

    Available for RFQ

    Pricing:

    Request Volume Pricing

    Quote Response:

    Within 24 Hours

    Shipping:

    In-stock parts ship in 1–2 business days

    Specification

    Type
    Parameter
    Factory Lead Time
    14 Weeks
    Contact Material
    Copper Alloy
    Mount
    Surface Mount
    Mounting Type
    Surface Mount, Right Angle
    Insulation Material
    Resin
    Housing Material
    Liquid Crystal Polymer (LCP), Glass Filled
    Actuator Material
    Polyamide (PA), Nylon, Glass Filled
    Operating Temperature
    -40°C~85°C
    Packaging
    Strip
    Series
    FA5
    Published
    2004
    Feature
    Solder Retention, Zero Insertion Force (ZIF)
    Part Status
    Active
    Moisture Sensitivity Level (MSL)
    1 (Unlimited)
    Termination
    Solder
    Number of Positions
    40
    Number of Rows
    1
    Gender
    Female
    Voltage - Rated
    50V
    Current Rating (Amps)
    0.8A per Contact
    Pitch
    0.020 0.50mm
    Orientation
    Right Angle
    Current Rating
    800mA
    Contact Finish
    Gold
    Voltage - Rated AC
    250V
    Housing Color
    Black
    Contact Resistance
    20mOhm
    Insulation Resistance
    100MOhm
    Mating Cycles
    20
    Flat Flex Type
    FPC
    Connector/Contact Type
    Contacts, Bottom
    Cable End Type
    Tapered
    Locking Feature
    Flip Lock
    Actuator Color
    White
    Contact Location
    Bottom
    Height Above Board
    0.057 1.45mm
    FFC, FCB Thickness
    0.30mm
    Material Flammability Rating
    UL94 V-0
    REACH SVHC
    Unknown
    RoHS Status
    RoHS Compliant
    Flammability Rating
    UL94 V-0
    Lead Free
    Lead Free

    Products Detail

    FA5S040HP1 Overview


    The mounting type of the device is Surface Mount, Right Angle.A Strip case is used to package the product.A product of the FA5 Series, it belongs to the range of products of that series.A number of features make the Solder Retention, Zero Insertion Force (ZIF) feature more powerful.Surface Mount represents the mounting point for the part.-40°C~85°C Operating Temperature is the default operating temperature for the device.

    FA5S040HP1 Features


    FA5 series


    FA5S040HP1 Applications


    There are a lot of JAE Electronics
    FA5S040HP1 FFC, FPC (Flat Flexible) Connectors applications.


    • Automotive Electronics
    • Telecommunications
    • Data Technology
    • Blowers
    • Control panels
    • Electrical substations
    • Energy efficient lighting (LED)
    • LED municipal outdoor and street lighting
    • All Electrical Machinery
    • Refrigeration control

    Documents

    Datasheets:

    FA5SxxxHP1 DrawingFA5 Series DatasheetBoard-to-Flex Connectors
