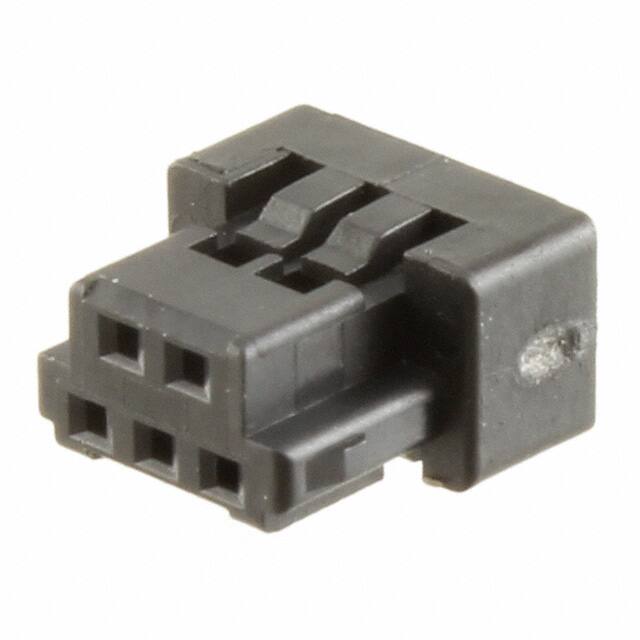

    FI-W5S [JAE]

    FI-W5S
    FI-W5S

    Part No:

    FI-W5S

    Category:

    Headers & Wire Housings

    Manufacturer:

    JAE

    Description:

    Board-to-Cable Connectors

    Datasheet:

    Product FAQ

    1. Is FI-W5S available for RFQ?

    Yes. FI-W5S by JAE is available for RFQ. Submit your required quantity and our team will confirm real-time stock, lead time, and volume pricing.

    2. Why is there no fixed price for FI-W5S?

    Pricing for FI-W5S can vary by order quantity, market availability, date code, packaging, and delivery destination. Request a quote to receive the latest volume pricing.

    3. What are the key specifications of FI-W5S?

    FI-W5S is a JAE Headers & Wire Housings with FI (single row) Discrete Wire Awg: #28,30,32 and FI (dual row) Discrete Wire Awg: #28,30,32. Review the product details or submit an RFQ if you need confirmation before purchase.

    4. How fast can I get a quote for FI-W5S?

    Our sales team usually responds within 24 hours after receiving your RFQ. The quote may include stock status, unit price, lead time, shipping options, and available alternatives.

    5. How soon can FI-W5S be shipped?

    If stock is confirmed, in-stock parts can usually ship within 1–2 business days. Final lead time depends on quantity, stock source, and delivery destination.

    6. Can you suggest alternatives to FI-W5S?

    Yes. If FI-W5S is unavailable, obsolete, or does not meet your required lead time, we can help check similar JAE Headers & Wire Housings parts or compatible alternatives.

    RFQ

    Part Number:

    FI-W5S

    Manufacturer:

    JAE

    Looking for Pricing? Contact us for volume pricing.

    IMPORTANT NOTICE

    Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.

    Featured Product

    Stock Status:

    Available for RFQ

    Pricing:

    Request Volume Pricing

    Quote Response:

    Within 24 Hours

    Shipping:

    In-stock parts ship in 1–2 business days

    Specification

    Type
    Parameter
    FI (dual row) Coax Awg
    N/A
    FI (dual row) Current Rating
    1.0A
    FI (dual row) Discrete Wire Awg
    #28,30,32
    FI (dual row) Durability
    50 cycles
    FI (dual row) Fpc Ffc
    N/A
    FI (dual row) Locking
    Friction
    FI (dual row) Pin Count
    5,7,9,11,13,15,17,19,21,31,41
    FI (dual row) Pitch
    1.25mm
    FI (dual row) R A Height
    3.7mm
    FI (dual row) Voltage Rating
    200V
    FI (single row) Coax Awg
    N/A
    FI (single row) Current Rating
    1.0A
    FI (single row) Discrete Wire Awg
    #28,30,32
    FI (single row) Durability
    50 cycles
    FI (single row) Fpc Ffc
    0.14(cid:16188)0.03mm
    FI (single row) Locking
    Friction
    FI (single row) Pin Count
    2-6,8,10,15,20,25,30
    FI (single row) Pitch
    1.25mm
    FI (single row) R A Height
    1.8mm
    FI (single row) Voltage Rating
    200V
    FI-DP Coax Awg
    #40-42
    FI-DP Current Rating
    0.5A
    FI-DP Discrete Wire Awg
    #32-36
    FI-DP Durability
    30 cycles
    FI-DP Fpc Ffc
    N/A
    FI-DP Locking
    Latches
    FI-DP Pin Count
    42, 58
    FI-DP Pitch
    0.5mm
    FI-DP R A Height
    2.0,8.8mm
    FI-DP Voltage Rating
    200V
    FI-J Coax Awg
    #42,44
    FI-J Current Rating
    0.3A
    FI-J Discrete Wire Awg
    N/A
    FI-J Durability
    30 cycles
    FI-J Fpc Ffc
    N/A
    FI-J Locking
    Friction
    FI-J Pin Count
    20,25,30,35,40
    FI-J Pitch
    0.4mm
    FI-J R A Height
    1.58mm
    FI-J Voltage Rating
    50V
    FI-JP Coax Awg
    #44,46
    FI-JP Current Rating
    0.2A
    FI-JP Discrete Wire Awg
    N/A
    FI-JP Durability
    20 cycles
    FI-JP Fpc Ffc
    N/A
    FI-JP Locking
    Friction
    FI-JP Pin Count
    40,50
    FI-JP Pitch
    0.25mm
    FI-JP R A Height
    1.1mm
    FI-JP Voltage Rating
    50V
    FI-R Coax Awg
    #40
    FI-R Current Rating
    0.8A
    FI-R Discrete Wire Awg
    #30,32,36
    FI-R Durability
    50 cycles
    FI-R Fpc Ffc
    FFC (JF04)
    FI-R Locking
    Latches
    FI-R Pin Count
    21,31,41,51
    FI-R Pitch
    0.5mm
    FI-R R A Height
    3.8mm
    FI-R Voltage Rating
    200V
    FI-X Coax Awg
    #32,40
    FI-X Current Rating
    1.0A
    FI-X Discrete Wire Awg
    #30,32,36
    FI-X Durability
    50 cycles
    FI-X Fpc Ffc
    0.14(cid:16188)0.03mm
    FI-X Locking
    Latches
    FI-X Pin Count
    30
    FI-X Pitch
    1.0mm
    FI-X R A Height
    1.0-2.35mm
    FI-X Voltage Rating
    200V
    IL-G Coax Awg
    N/A
    IL-G Current Rating
    3.0A
    IL-G Discrete Wire Awg
    #22,24,26,28
    IL-G Durability
    100 cycles
    IL-G Fpc Ffc
    N/A
    IL-G Locking
    Friction
    IL-G Pin Count
    2-15
    IL-G Pitch
    2.5mm
    IL-G R A Height
    6.0mm
    IL-G Voltage Rating
    500V
    IL-Z Coax Awg
    N/A
    IL-Z Current Rating
    1.0A
    IL-Z Discrete Wire Awg
    #28,30,32
    IL-Z Durability
    50 cycles
    IL-Z Fpc Ffc
    N/A
    IL-Z Locking
    Friction
    IL-Z Pin Count
    2-15
    IL-Z Pitch
    1.25mm
    IL-Z R A Height
    3.45mm
    IL-Z Voltage Rating
    200V

    Products Detail

    A series of board-to-cable connectors including multiple series such as FI-JP, FI-J, FI-R, FI-DP, FI-X, FI single row, FI dual row, IL-Z, and IL-G. Features include vertical mating, small footprint, VESA standard for LCD interface, compatibility with LVDS and eDP, and various locking mechanisms.

    Key Features

    • Vertical mating. Small footprint.
    • VESA standard for LCD interface of HD TV. Vertical mount available.
    • Vertical mating LCD connector compatible with LVDS and eDP.
    • VESA standard for 1.0mm pitch LVDS interface.
    • Single row for low profile.
    • Dual row for smaller footprint.
    • Multiple terminal lengths available.
    • Thru-hole. Extremely low cost. Vertical mount available.

    Application scenarios

    • HD TV
    • LCD interface
    • LVDS
    • eDP

    Documents

    Datasheets:

    Board-to-Cable ConnectorsFI-W(5,7,9,11)S Drawing
