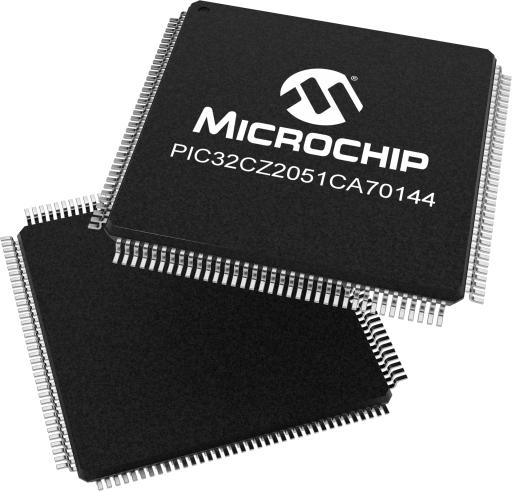

PIC32CZ2051CA70144-V/Z8X [Microchip]

Name: PIC32CZ2051CA70144-V/Z8X
Brand: Microchip
SKU: PIC32CZ2051CA70144-V/Z8X

Part No:

PIC32CZ2051CA70144-V/Z8X

Unclassified

Manufacturer:

Microchip

Description:

Arm® Cortex®-M7 Based 300 MHz with 2 MB Flash/512 KB SRAM

Datasheet:

Stock Status:

Available for RFQ

Pricing:

Request Volume Pricing

Quote Response:

Within 24 Hours

Shipping:

In-stock parts ship in 1–2 business days

Specification

Type

Parameter

Part Family

PIC32CZ CA70

CPU

Cortex-M7

CPU Speed Max MHz (megahertz)

300

Program Memory size (KB)

2048

RAM KB (kilobyte)

512

Multiple Flash Panels

Secure Subsystem

Yes

Hardware Crypto Graphic Features

ECC,AES,SHA,TRNG

ARM Trust Zone

Type of CAN module

CAN-FD

CAN/CAN-FD

USB

High Speed,Full Speed

Number of USB Modules

SPI

I2C

I2S

UART

QSPI

SDIO/SD-CARD/eMMC

Hardware Touch Peripheral

None

ADC Resolution (bits)

ADC Channels

ADC Sampling Rate (ksps)

1700

Direct Memory Access (DMA) Channels

DAC Resolution (Bits)

Number of DACs

Peripheral Pin Select / Pin Muxing

Yes

Packages

144/TQFP 144/eTQFP 144/TFBGA

Internal Oscillator

4,8,12Mhz, 32Khz

Operation Voltage Max.(V)

3.6

Operation Voltage Min.(V)

1.7

TempRange Max

105

TempRange Min

-40

Supported in MPLAB Code Configurator

Yes

Products Detail

The Microchip PIC32CZ CA70 devices are a family of Flash microcontrollers based on the high-performance 32-bit ARM Cortex-M7 processor with a Double Precision Floating Point Unit (FPU). These devices operate at up to 300MHz and feature up to 2048 Kbytes of Flash, and up to 512 Kbytes of multi-port SRAM which is configurable Instruction and Data Tightly Couple Memories to leverage the advanced DSP capabilities of the core.

The PIC32CZ CA70 series includes a 10/100 Ethernet MAC w/IEEE1588, HS USB Interface with integrated PHY, dual CAN-FD, QSPI, MediaLB, CMOS Imager interface, TDM/I2S (SSC,) multiple serial interfaces as well as on-board hardware cryptography including a TRNG, AES-256, and SHA-256 engines.

Supported by MPLAB X IDE and MPLAB Harmony.

ARM® Cortex®-M7 running up to 300MHz

16 Kbytes of ICache and 16 Kbytes of DCache with Error Code Correction (ECC)

Single- and double-precision HW Floating Point Unit (FPU)

Memory Protection Unit (MPU) with 16 zones

DSP Instructions, Thumb®-2 Instruction Set

Embedded Trace Module (ETM) with instruction trace stream, including Trace Port Interface Unit (TPIU)

2048 Kbytes embedded Flash with unique identifier and user signature for user-defined data

512 Kbytes embedded Multi-port SRAM

Tightly Coupled Memory (TCM) interface with four configurations (disabled, 2 x 32 Kbytes, 2 x 64 Kbytes, 2 x 128 Kbytes)

16 Kbytes ROM with embedded Bootloader routines (UART0, USB) and IAP routines

16-bit Static Memory Controller (SMC) with support for SRAM, PSRAM, LCD module, NOR and NAND Flash with on-the-fly scrambling

Embedded voltage regulator for single-supply operation

Power-on-Reset (POR), Brown-out Detector (BOD) and Dual Watchdog for safe operation

Quartz or ceramic resonator oscillators: 3 to 20 MHz main oscillator with failure detection, 12 MHz or 16 MHz needed for USB operations. Optional low-power 32.768 kHz for RTC or device clock

RTC with Gregorian calendar mode, waveform generation in low-power modes

RTC counter calibration circuitry compensates for 32.768 kHz crystal frequency variations

32-bit low-power Real-time Timer (RTT)

High-precision Main RC oscillator with 12 MHz default frequency for device startup. In-application trimming access for frequency adjustment. 8/12 MHz are factory-trimmed.

32.768 kHz crystal oscillator or Slow RC oscillator as source of low-power mode device clock (SLCK)

One 500 MHz PLL for system clock, one 480 MHz PLL for USB high-speed operations

Temperature Sensor

One dual-port 24-channel central DMA Controller (XDMAC)

Low-power Sleep, Wait and Backup modes, with typical power consumption down to 1.1 µA in Backup mode with RTC, RTT and wakeup logic enabled

Ultra-low-power RTC and RTT

1 Kbyte of backup RAM (BRAM) with dedicated regulator

One Ethernet MAC (GMAC) 10/100 Mbps in MII mode and RMII with dedicated DMA. IEEE1588 PTP frames and 802.3az Energy-efficiency support. Ethernet AVB support with IEEE802.1AS Timestamping and IEEE802.1Qav credit-based traffic-shaping hardware support

USB 2.0 Device/Mini Host High-speed (USBHS) at 480 Mbps, 4-Kbyte FIFO, up to 10 bidirectional endpoints, dedicated DMA

12-bit ITU-R BT. 601/656 Image Sensor Interface (ISI)

Two Host Controller Area Networks (MCAN) with Flexible Data Rate (CAN-FD) with SRAM-based mailboxes, time- and event-triggered transmission

MediaLB® device with 3-wire mode, up to 1024 x Fs speed, supporting MOST25 and MOST50 networks

Three USARTs. USART0/1/2 support LIN mode, ISO7816, IrDA®, RS-485, SPI, Manchester and Modem modes; USART1 supports LON mode.

Five 2-wire UARTs with SleepWalking™ support

Three Two-Wire Interfaces (TWIHS) (I2C-compatible) with SleepWalking™ support

Quad I/O Serial Peripheral Interface (QSPI) interfacing up to 256 MB Flash and with eXecute-In-Place and on-the-fly scrambling

Two Serial Peripheral Interfaces (SPI)

One Serial Synchronous Controller (SSC) with I2S and TDM support

Two Inter-IC Sound Controllers (I2SC)

One High-speed Multimedia Card Interface (HSMCI) (SDIO/SD Card/e.MMC)

Four Three-Channel 16-bit Timer/Counters (TC) with Capture, Waveform, Compare and PWM modes, constant on time. Quadrature decoder logic and 2-bit Gray Up/Down Counter for stepper motor

Two 4-channel 16-bit PWMs with complementary outputs, Dead Time Generator and eight fault inputs per PWM for motor control, two external triggers to manage power factor correction (PFC), DC-DC and lighting control.

Two Analog Front-End Controllers (AFEC), each supporting up to 12 channels with differential input mode and programmable gain stage, allowing dual sample-and-hold at up to 1.7 Msps. Offset and gain error correction feature.

One 2-channel 12-bit 1 Msps-per-channel Digital-to-Analog Controller (DAC) with Differential and Over Sampling modes

One Analog Comparator Controller (ACC) with flexible input selection, selectable input hysteresis

True Random Number Generator (TRNG)

AES: 256-, 192-, 128-bit Key Algorithm, Compliant with FIPS PUB-197 Specifications

Integrity Check Monitor (ICM). Supports Secure Hash Algorithm SHA1, SHA224 and SHA256.

Up to 114 I/O lines with external interrupt capability (edge- or level-sensitivity), debouncing, glitch filtering and On-die Series Resistor Termination

Five Parallel Input/output Controllers (PIO)

Single supply voltage from 3.0V to 3.6V

Qualification AEC-Q100 grade 2 ([-40°C : +105°C] ambient temperature)

LQFP144, 144-lead LQFP, 20 x 20 mm, pitch 0.5 mm

TFBGA144, 144-ball TFBGA, 10 x 10 mm, pitch 0.8 mm

Documents

Product FAQ

1. Is PIC32CZ2051CA70144-V/Z8X available for RFQ?

Yes. PIC32CZ2051CA70144-V/Z8X by Microchip is available for RFQ. Submit your required quantity and our team will confirm real-time stock, lead time, and volume pricing.

2. Why is there no fixed price for PIC32CZ2051CA70144-V/Z8X?

Pricing for PIC32CZ2051CA70144-V/Z8X can vary by order quantity, market availability, date code, packaging, and delivery destination. Request a quote to receive the latest volume pricing.

3. What are the key specifications of PIC32CZ2051CA70144-V/Z8X?

PIC32CZ2051CA70144-V/Z8X is a Microchip Unclassified with Supported in MPLAB Code Configurator: Yes and Direct Memory Access (DMA) Channels: 24. Review the product details or submit an RFQ if you need confirmation before purchase.

4. How fast can I get a quote for PIC32CZ2051CA70144-V/Z8X?

Our sales team usually responds within 24 hours after receiving your RFQ. The quote may include stock status, unit price, lead time, shipping options, and available alternatives.

5. How soon can PIC32CZ2051CA70144-V/Z8X be shipped?

If stock is confirmed, in-stock parts can usually ship within 1–2 business days. Final lead time depends on quantity, stock source, and delivery destination.

6. Can you suggest alternatives to PIC32CZ2051CA70144-V/Z8X?

Yes. If PIC32CZ2051CA70144-V/Z8X is unavailable, obsolete, or does not meet your required lead time, we can help check similar Microchip Unclassified parts or compatible alternatives.

RFQ

Part Number:

PIC32CZ2051CA70144-V/Z8X

Manufacturer:

Microchip

Looking for Pricing? Contact us for volume pricing.

Shipping & Warranty

Fast Dispatch: Ships in 5-7 days(in-stock parts within 1-2 days)

Unishop Global Export: 1-7 days, $40.00

Guaranteed Delivery: Door-to-door in 30 days

Compliant Worldwide Shipping: DHL, FedEx, SF, and UPS.

Feature

IMPORTANT NOTICE

Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.

Supported by MPLAB X IDE and MPLAB Harmony.

ARM® Cortex®-M7 running up to 300MHz

16 Kbytes of ICache and 16 Kbytes of DCache with Error Code Correction (ECC)

Single- and double-precision HW Floating Point Unit (FPU)

Memory Protection Unit (MPU) with 16 zones

DSP Instructions, Thumb®-2 Instruction Set

Embedded Trace Module (ETM) with instruction trace stream, including Trace Port Interface Unit (TPIU)

2048 Kbytes embedded Flash with unique identifier and user signature for user-defined data

512 Kbytes embedded Multi-port SRAM

Tightly Coupled Memory (TCM) interface with four configurations (disabled, 2 x 32 Kbytes, 2 x 64 Kbytes, 2 x 128 Kbytes)

16 Kbytes ROM with embedded Bootloader routines (UART0, USB) and IAP routines

16-bit Static Memory Controller (SMC) with support for SRAM, PSRAM, LCD module, NOR and NAND Flash with on-the-fly scrambling

Embedded voltage regulator for single-supply operation

Power-on-Reset (POR), Brown-out Detector (BOD) and Dual Watchdog for safe operation

Quartz or ceramic resonator oscillators: 3 to 20 MHz main oscillator with failure detection, 12 MHz or 16 MHz needed for USB operations. Optional low-power 32.768 kHz for RTC or device clock

RTC with Gregorian calendar mode, waveform generation in low-power modes

RTC counter calibration circuitry compensates for 32.768 kHz crystal frequency variations

32-bit low-power Real-time Timer (RTT)

High-precision Main RC oscillator with 12 MHz default frequency for device startup. In-application trimming access for frequency adjustment. 8/12 MHz are factory-trimmed.

32.768 kHz crystal oscillator or Slow RC oscillator as source of low-power mode device clock (SLCK)

One 500 MHz PLL for system clock, one 480 MHz PLL for USB high-speed operations

Temperature Sensor

One dual-port 24-channel central DMA Controller (XDMAC)

Low-power Sleep, Wait and Backup modes, with typical power consumption down to 1.1 µA in Backup mode with RTC, RTT and wakeup logic enabled

Ultra-low-power RTC and RTT

1 Kbyte of backup RAM (BRAM) with dedicated regulator

USB 2.0 Device/Mini Host High-speed (USBHS) at 480 Mbps, 4-Kbyte FIFO, up to 10 bidirectional endpoints, dedicated DMA

12-bit ITU-R BT. 601/656 Image Sensor Interface (ISI)

Two Host Controller Area Networks (MCAN) with Flexible Data Rate (CAN-FD) with SRAM-based mailboxes, time- and event-triggered transmission

MediaLB® device with 3-wire mode, up to 1024 x Fs speed, supporting MOST25 and MOST50 networks

Three USARTs. USART0/1/2 support LIN mode, ISO7816, IrDA®, RS-485, SPI, Manchester and Modem modes; USART1 supports LON mode.

Five 2-wire UARTs with SleepWalking™ support

Three Two-Wire Interfaces (TWIHS) (I2C-compatible) with SleepWalking™ support

Quad I/O Serial Peripheral Interface (QSPI) interfacing up to 256 MB Flash and with eXecute-In-Place and on-the-fly scrambling

Two Serial Peripheral Interfaces (SPI)

One Serial Synchronous Controller (SSC) with I2S and TDM support

Two Inter-IC Sound Controllers (I2SC)

One High-speed Multimedia Card Interface (HSMCI) (SDIO/SD Card/e.MMC)

Four Three-Channel 16-bit Timer/Counters (TC) with Capture, Waveform, Compare and PWM modes, constant on time. Quadrature decoder logic and 2-bit Gray Up/Down Counter for stepper motor

One 2-channel 12-bit 1 Msps-per-channel Digital-to-Analog Controller (DAC) with Differential and Over Sampling modes

One Analog Comparator Controller (ACC) with flexible input selection, selectable input hysteresis

True Random Number Generator (TRNG)

AES: 256-, 192-, 128-bit Key Algorithm, Compliant with FIPS PUB-197 Specifications

Integrity Check Monitor (ICM). Supports Secure Hash Algorithm SHA1, SHA224 and SHA256.

Up to 114 I/O lines with external interrupt capability (edge- or level-sensitivity), debouncing, glitch filtering and On-die Series Resistor Termination

Five Parallel Input/output Controllers (PIO)

Single supply voltage from 3.0V to 3.6V

Qualification AEC-Q100 grade 2 ([-40°C : +105°C] ambient temperature)

LQFP144, 144-lead LQFP, 20 x 20 mm, pitch 0.5 mm

TFBGA144, 144-ball TFBGA, 10 x 10 mm, pitch 0.8 mm
