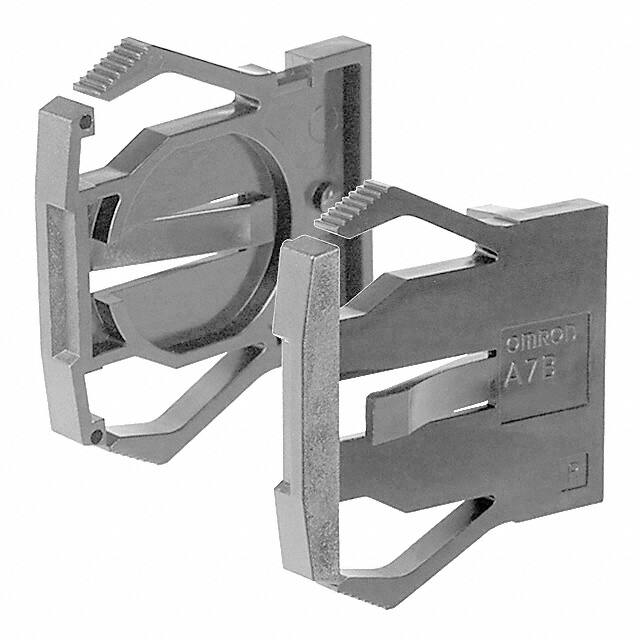

    A7B-M [OMRON]

    A7B-M
    A7B-M

    Part No:

    A7B-M

    Category:

    Unclassified

    Manufacturer:

    OMRON

    Description:

    Thumbwheel switch with locking-type models, available in 4.8 mm or 3.2 mm character height for easy viewing, and snap-in mounting for easy installation.

    Datasheet:

    Product FAQ

    1. Is A7B-M available for RFQ?

    Yes. A7B-M by OMRON is available for RFQ. Submit your required quantity and our team will confirm real-time stock, lead time, and volume pricing.

    2. Why is there no fixed price for A7B-M?

    Pricing for A7B-M can vary by order quantity, market availability, date code, packaging, and delivery destination. Request a quote to receive the latest volume pricing.

    3. What are the key specifications of A7B-M?

    A7B-M is a OMRON Unclassified with Insulation Resistance Non Current Carrying Min: 1000MΩ and Dielectric Strength Non Current Carrying: 1000 VAC. Review the product details or submit an RFQ if you need confirmation before purchase.

    4. How fast can I get a quote for A7B-M?

    Our sales team usually responds within 24 hours after receiving your RFQ. The quote may include stock status, unit price, lead time, shipping options, and available alternatives.

    5. How soon can A7B-M be shipped?

    If stock is confirmed, in-stock parts can usually ship within 1–2 business days. Final lead time depends on quantity, stock source, and delivery destination.

    6. Can you suggest alternatives to A7B-M?

    Yes. If A7B-M is unavailable, obsolete, or does not meet your required lead time, we can help check similar OMRON Unclassified parts or compatible alternatives.

    RFQ

    Part Number:

    A7B-M

    Manufacturer:

    OMRON

    Looking for Pricing? Contact us for volume pricing.

    IMPORTANT NOTICE

    Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.

    Featured Product

    Stock Status:

    Available for RFQ

    Pricing:

    Request Volume Pricing

    Quote Response:

    Within 24 Hours

    Shipping:

    In-stock parts ship in 1–2 business days

    Specification

    Type
    Parameter
    Contact Resistance
    300mΩ
    Continuous Carry Current Max
    1A
    Dielectric Strength Non Connected
    600 VAC
    Dielectric Strength Non Current Carrying
    1000 VAC
    Electrical Durability Min
    50000 operations
    Insulation Resistance Non Connected Min
    10MΩ
    Insulation Resistance Non Current Carrying Min
    1000MΩ
    Max Operating Force
    5.39 N
    Mechanical Durability Min
    100000 operations
    Operating Humidity
    45% ~ 85%
    Operating Temperature
    -10°C ~ 65°C
    Shock Resistance Min
    490 m/s2
    Storage Temperature
    -20°C ~ 80°C
    Switching Current
    0.1A
    Switching Current Min
    1mA
    Switching Voltage Ac
    50V
    Switching Voltage Dc
    28V
    Switching Voltage Dc Min
    3.3V
    Vibration Resistance
    10 to 55Hz, 1.5-mm double amplitude

    Products Detail

    The A7BS/A7BL series are thumbwheel switches featuring locking-type models to prevent accidental operation. They offer clear displays with character heights of 4.8 mm or 3.2 mm and are designed for easy snap-in mounting. The series includes various output codes (binary coded decimal or hexadecimal) and options for external stoppers, internal stoppers, and diodes. Accessories such as end caps, spacers, and connectors are available for modular assembly.

    Key Features

    • Locking-type models prevent accidental operation
    • Character height: 4.8 mm or 3.2 mm
    • Snap-in mounting
    • Output codes: 06 (BCD), 07 (BCD with component-adding), 54 (hex), 55 (hex with component-adding)
    • Options: external stoppers, internal stoppers, diodes, PCB terminals
    • Accessories: end caps, spacers, connectors
    • Switching capacity: 3.3 to 28 VDC or 50 VAC, 1 mA to 0.1 A
    • Durability: mechanical 100,000 operations, electrical 50,000 operations
    • Operating temperature: -10°C to 65°C

    Documents

    Datasheets:

    A7BS, A7BL SeriesA7B-M-Omron-datasheet-21401932.pdfA7B-M-Omron-datasheet-9606557.pdf
