LF-301VK [ROHM]

Name: LF-301VK
Brand: ROHM
SKU: LF-301VK
Availability: InStock

Part No:

LF-301VK

Category:

Displays

Manufacturer:

ROHM

Description:

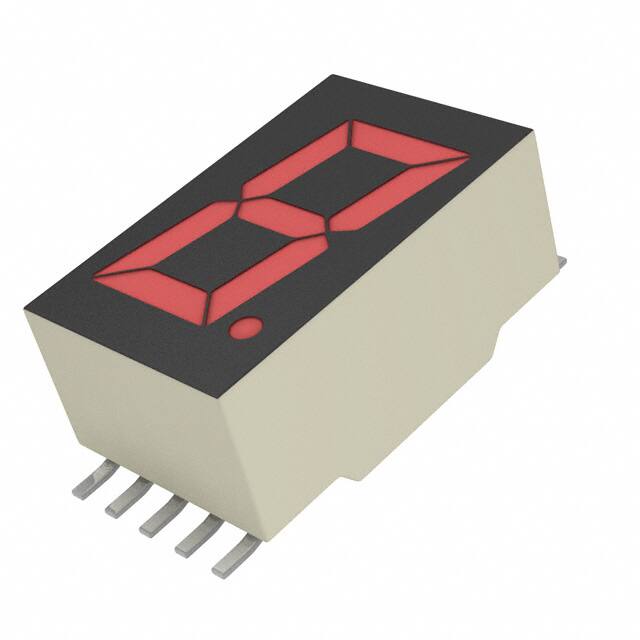

Single Digit Surface Mount LED Numeric Display with 8mm character height, designed for reflow soldering.

Datasheet:

Stock Status:

Available for RFQ

Pricing:

Request Volume Pricing

Quote Response:

Within 24 Hours

Shipping:

In-stock parts ship in 1–2 business days

Specification

Type

Parameter

RoHS Status

RoHS Compliant

RoHS Status

Packing

Tape and reel

LF-301MA Forward Current

20mA

LF-301MA Forward Voltage Max

2.8V

LF-301MA Forward Voltage Typ

2.1V

LF-301MA Luminous Intensity Min

3.6 mcd

LF-301MA Luminous Intensity Typ

10 mcd

LF-301MA Operating Temperature Max

+75°C

LF-301MA Operating Temperature Min

-25°C

LF-301MA Peak Forward Current

60mA

LF-301MA Peak Wavelength

563 nm

LF-301MA Power Dissipation

480mW

LF-301MA Power Dissipation Per Segment

60mW

LF-301MA Reverse Current Max

100µA

LF-301MA Reverse Voltage

5V

LF-301MA Spectral Line Half Width

40 nm

LF-301MA Storage Temperature Max

+85°C

LF-301MA Storage Temperature Min

-30°C

LF-301MK Forward Current

20mA

LF-301MK Forward Voltage Max

2.8V

LF-301MK Forward Voltage Typ

2.1V

LF-301MK Luminous Intensity Min

3.6 mcd

LF-301MK Luminous Intensity Typ

10 mcd

LF-301MK Operating Temperature Max

+75°C

LF-301MK Operating Temperature Min

-25°C

LF-301MK Peak Forward Current

60mA

LF-301MK Peak Wavelength

563 nm

LF-301MK Power Dissipation

480mW

LF-301MK Power Dissipation Per Segment

60mW

LF-301MK Reverse Current Max

100µA

LF-301MK Reverse Voltage

5V

LF-301MK Spectral Line Half Width

40 nm

LF-301MK Storage Temperature Max

+85°C

LF-301MK Storage Temperature Min

-30°C

LF-301VA Forward Current

15mA

LF-301VA Forward Voltage Max

2.8V

LF-301VA Forward Voltage Typ

2.0V

LF-301VA Luminous Intensity Min

3.6 mcd

LF-301VA Luminous Intensity Typ

10 mcd

LF-301VA Operating Temperature Max

+75°C

LF-301VA Operating Temperature Min

-25°C

LF-301VA Peak Forward Current

60mA

LF-301VA Peak Wavelength

650 nm

LF-301VA Power Dissipation

320mW

LF-301VA Power Dissipation Per Segment

40mW

LF-301VA Reverse Current Max

100µA

LF-301VA Reverse Voltage

5V

LF-301VA Spectral Line Half Width

40 nm

LF-301VA Storage Temperature Max

+85°C

LF-301VA Storage Temperature Min

-30°C

LF-301VK Forward Current

15mA

LF-301VK Forward Voltage Max

2.8V

LF-301VK Forward Voltage Typ

2.0V

LF-301VK Luminous Intensity Min

3.6 mcd

LF-301VK Luminous Intensity Typ

10 mcd

LF-301VK Operating Temperature Max

+75°C

LF-301VK Operating Temperature Min

-25°C

LF-301VK Peak Forward Current

60mA

LF-301VK Peak Wavelength

650 nm

LF-301VK Power Dissipation

320mW

LF-301VK Power Dissipation Per Segment

40mW

LF-301VK Reverse Current Max

100µA

LF-301VK Reverse Voltage

5V

LF-301VK Spectral Line Half Width

40 nm

LF-301VK Storage Temperature Max

+85°C

LF-301VK Storage Temperature Min

-30°C

Products Detail

Single digit surface mount LED numeric display featuring ROHM's original structure enabling reflow soldering. Available in red or green emitting colors with common anode or cathode configurations. Key features include Pb-free availability, automatic mounting with taping pack, and 8mm character height. Suitable for surface mount assembly processes.

Key Features

Reflow soldering
Pb-free available
Automatic mounting with taping pack
8mm character height
Common anode or cathode options
Red and Green emitting colors

Documents

Datasheets:

LF-301 A/K Series

Product FAQ

1. Is LF-301VK available for RFQ?

Yes. LF-301VK by ROHM is available for RFQ. Submit your required quantity and our team will confirm real-time stock, lead time, and volume pricing.

2. Why is there no fixed price for LF-301VK?

Pricing for LF-301VK can vary by order quantity, market availability, date code, packaging, and delivery destination. Request a quote to receive the latest volume pricing.

3. What are the key specifications of LF-301VK?

LF-301VK is a ROHM Displays with LF-301MA Power Dissipation Per Segment: 60mW and LF-301MK Power Dissipation Per Segment: 60mW. Review the product details or submit an RFQ if you need confirmation before purchase.

4. How fast can I get a quote for LF-301VK?

Our sales team usually responds within 24 hours after receiving your RFQ. The quote may include stock status, unit price, lead time, shipping options, and available alternatives.

5. How soon can LF-301VK be shipped?

If stock is confirmed, in-stock parts can usually ship within 1–2 business days. Final lead time depends on quantity, stock source, and delivery destination.

6. Can you suggest alternatives to LF-301VK?

Yes. If LF-301VK is unavailable, obsolete, or does not meet your required lead time, we can help check similar ROHM Displays parts or compatible alternatives.
