35TXV22M6.3X6.1 [rubycon]

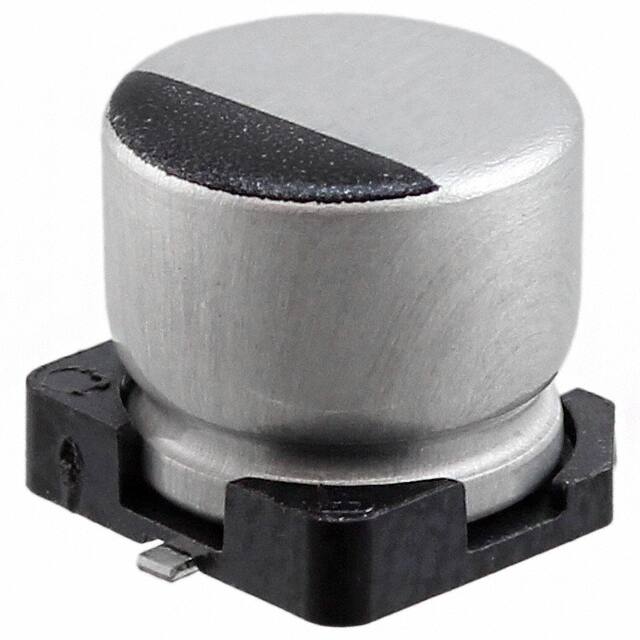

35TXV22M6.3X6.1 Overview

As far as the ripple current is concerned, it is 70mA @ 100kHz at full charge.The ESR (Equivalent Series Resistance) of 1Ohm needs to be provided to fully play its function.As far as the ripple current is concerned, it is 31.5mA @ 120Hz at the lowest charge.The height seated (Max) should be kept below 0.240 6.10mm.The rated (DC) voltage (URdc) of the device should be set at 35V.The operating temperature should be maintained at -40°C~125°C for high efficiency.

35TXV22M6.3X6.1 Features

the ripple current is 70mA @ 100kHz.
the ripple current is 31.5mA @ 120Hz.
an operating temperature of -40°C~125°C

35TXV22M6.3X6.1 Applications

There are a lot of Rubycon
35TXV22M6.3X6.1 applications of aluminum electrolytic capacitors.

• Power supplies
• Computer motherboards
• Uninterruptible power supplies
• Frequency converters
• Computer
• Telecommunication
• Industrial systems
• Smoothing and filtering applications
• Standard and switched mode power supplies
• Energy storage in pulse systems
