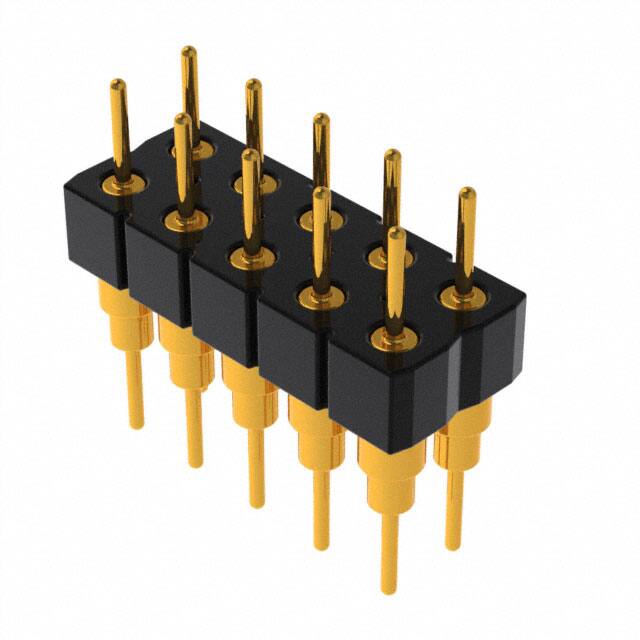

BBD-126-G-C [Samtec]

Name: BBD-126-G-C
Brand: Samtec
SKU: BBD-126-G-C
Availability: InStock

Part No:

BBD-126-G-C

Category:

Headers & Wire Housings

Manufacturer:

Samtec

Description:

BBD Series 2-Row Header Solder Brass Tube Through Hole Gold Polyester, Glass Filled 52-Position Board to Board 0.585 14.86mm Height

RoHS Status:

Datasheet:

Stock Status:

Available for RFQ

Pricing:

Request Volume Pricing

Quote Response:

Within 24 Hours

Shipping:

In-stock parts ship in 1–2 business days

Specification

Type

Parameter

Factory Lead Time

3 Weeks

Contact Material

Brass

Mount

Through Hole

Mounting Type

Through Hole

Contact Shape

Circular

Insulation Material

Polyester, Glass Filled

Operating Temperature

-55°C~125°C

Packaging

Tube

Series

BBD

JESD-609 Code

e4

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Termination

Solder

ECCN Code

EAR99

Connector Type

Header

Number of Positions

52

Number of Rows

2

Gender

Male

HTS Code

8536.69.40.40

Fastening Type

Push-Pull

Contact Finish - Mating

Gold

MIL Conformance

NO

DIN Conformance

NO

IEC Conformance

NO

Filter Feature

NO

Contact Type

Male Pin

Mixed Contacts

NO

Option

GENERAL PURPOSE

Insulation Height

0.585 14.86mm

Style

Board to Board

Number of Positions Loaded

All

Pitch - Mating

0.100 2.54mm

Insulation Color

Black

Number of Conductors

ONE

Reference Standard

UL

Reliability

COMMERCIAL

Row Spacing - Mating

0.100 (2.54mm)

Contact Length - Post

0.125 3.18mm

Shrouding

Unshrouded

Number Of PCB Rows

2

Contact Finish - Post

Nickel

Contact Length - Mating

0.125 3.18mm

PCB Contact Pattern

RECTANGULAR

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Overall Contact Length

0.835 21.21mm

Mating Contact Pitch

0.1 inch

RoHS Status

RoHS Compliant

Products Detail

BBD-126-G-C Overview

It comes in Header packaging.The device's mounting type is Through Hole.In order to package the product, a Tube case is used.It belongs to the BBD Series of products.The part is mounted by Through Hole.The device runs in -55°C~125°C Operating Temperature.

BBD-126-G-C Features

BBD series

BBD-126-G-C Applications

There are a lot of Samtec Inc.
BBD-126-G-C Rectangular Connectors applications.

Industrial Automation
Transportation
Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
