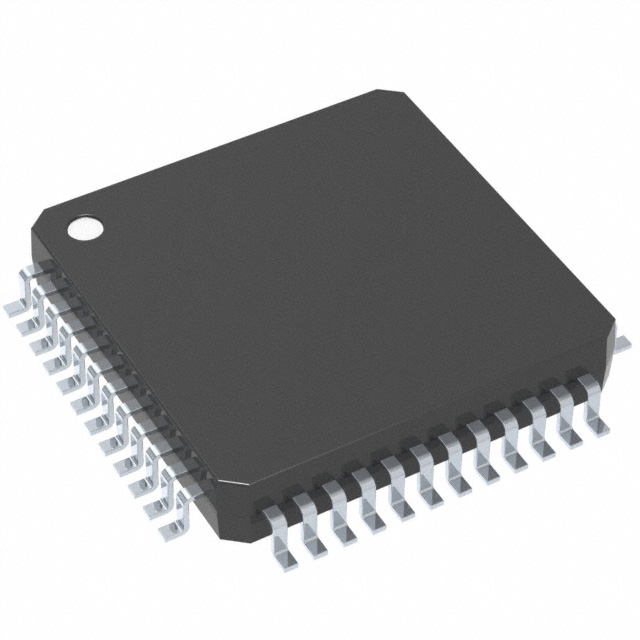

Name: LM3S1Z16-IQR50-C1
Brand: Texas Instruments
SKU: LM3S1Z16-IQR50-C1

Type

Parameter

Mounting Type

Surface Mount

Package / Case

64-LQFP

Surface Mount

YES

Number of Pins

Operating Temperature

-40°C~85°C TA

Packaging

Tray

Series

Stellaris® ARM® Cortex®-M3S 1000

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

3 (168 Hours)

Number of Terminations

Technology

CMOS

Terminal Position

QUAD

Terminal Form

GULL WING

Supply Voltage

3.3V

Terminal Pitch

0.5mm

Frequency

50MHz

Base Part Number

LM3S1Z16

Pin Count

Supply Voltage-Min (Vsup)

Interface

I2C, IrDA, LIN, SPI, UART, USART

Memory Size

16kB

Oscillator Type

Internal

Number of I/O

RAM Size

6K x 8

Voltage - Supply (Vcc/Vdd)

1.08V~1.32V

uPs/uCs/Peripheral ICs Type

MICROCONTROLLER

Core Processor

ARM® Cortex®-M3

Peripherals

Brown-out Detect/Reset, DMA, POR, PWM, WDT

Program Memory Type

FLASH

Core Size

32-Bit

Program Memory Size

16KB 16K x 8

Connectivity

I2C, IrDA, LINbus, Microwire, SPI, SSI, UART/USART

Bit Size

Data Converter

A/D 8x10b

Watchdog Timer

Yes

Has ADC

YES

DMA Channels

YES

Data Bus Width

32b

PWM Channels

YES

DAC Channels

Number of Timers/Counters

Core Architecture

ARM

Length

10mm

Height Seated (Max)

1.6mm

Radiation Hardening

RoHS Status

RoHS Compliant

LM3S1Z16-IQR50-C1 Overview

The package is in 64-LQFP format. The MCU has 33 I/O ports. There is a mounting type Surface Mount associated with this Microcontroller. This Microcontroller is based on the 32-Bit core. There is a memory type of FLASH in its program memory. The temperature range that this Microcontroller operates at is -40°C~85°C TA. The electrical component that you are looking at belongs to the Stellaris® ARM® Cortex®-M3S 1000 series of components. Microcontroller has abundant program memory size of 16KB 16K x 8. The ARM® Cortex®-M3 Core Processor powers the device and is one of its key features. This Microcontroller belongs to the MICROCONTROLLER uPs/uCs/peripheral ICs type. During the manufacture of the IC chip, there is a number 64 of terminations. A 32-bit operation is performed by this part. There is an output of 3.3V volts from the Microcontroller chip. A total of YES DMA channels are available on MCU chip. This MCU is implemented with 16kB memory. LM3S1Z16 serves as a base part number to find alternatives. It exhibits good efficiency when it operates at a frequency of 50MHz and it is able to operate at a high frequency. It is possible for the device to work with the motor using the PWM channel YES. It is possible to access the 64 pins on the chip through the 64 pins. It is equipped with 3 timers and counters. It consists of 64 pins. There is a ARM core architecture integrated into it.
