    PT79SR108V [Rochester]

    PT79SR108V
    PT79SR108V

    Part No:

    PT79SR108V

    Category:

    DC/DC Converters

    Manufacturer:

    Rochester

    Description:

    PT79SR100 Series is a line of -1.5A negative step-down integrated switching regulators with self-contained inductor, short circuit and over-temperature protection.

    Datasheet:

    Product FAQ

    1. Is PT79SR108V available for RFQ?

    Yes. PT79SR108V by Rochester is available for RFQ. Submit your required quantity and our team will confirm real-time stock, lead time, and volume pricing.

    2. Why is there no fixed price for PT79SR108V?

    Pricing for PT79SR108V can vary by order quantity, market availability, date code, packaging, and delivery destination. Request a quote to receive the latest volume pricing.

    3. What are the key specifications of PT79SR108V?

    PT79SR108V is a Rochester DC/DC Converters with Recommended Operating Temperature Max: +60°C and Recommended Operating Temperature Min: -40°C. Review the product details or submit an RFQ if you need confirmation before purchase.

    4. How fast can I get a quote for PT79SR108V?

    Our sales team usually responds within 24 hours after receiving your RFQ. The quote may include stock status, unit price, lead time, shipping options, and available alternatives.

    5. How soon can PT79SR108V be shipped?

    If stock is confirmed, in-stock parts can usually ship within 1–2 business days. Final lead time depends on quantity, stock source, and delivery destination.

    6. Can you suggest alternatives to PT79SR108V?

    Yes. If PT79SR108V is unavailable, obsolete, or does not meet your required lead time, we can help check similar Rochester DC/DC Converters parts or compatible alternatives.

    RFQ

    Part Number:

    PT79SR108V

    Manufacturer:

    Rochester

    Looking for Pricing? Contact us for volume pricing.

    IMPORTANT NOTICE

    Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.

    Featured Product

    Stock Status:

    Available for RFQ

    Pricing:

    Request Volume Pricing

    Quote Response:

    Within 24 Hours

    Shipping:

    In-stock parts ship in 1–2 business days

    Specification

    Type
    Parameter
    Efficiency
    85% (Typ)
    Line Regulation
    ±1.0% (Typ) ±2.0% (Max)
    Switching Frequency
    0.95MHz ~ 1.05MHz
    Input Voltage
    -9V ~ -30V
    Load Regulation
    ±0.5% (Typ) ±1.0% (Max)
    Temperature Coefficient
    ±0.5mV/°C (Typ) ±1.5mV/°C (Max)
    Output Current
    -0.1A ~ -1.5A
    Operating Temperature
    -40°C ~ +85°C
    Storage Temperature
    -40°C ~ +125°C
    RoHS Status
    RoHS Compliant
    Package
    SIPMOD (3-pin)
    Weight
    7.0 Grams
    RoHS Status
    Packing
    Tray; Tape and reel
    Mechanical Shock
    500 G's
    Mechanical Vibration
    5 G's
    Output Voltage Tolerance
    ±1.0% (Typ) ±3.0% (Max)
    Recommended Operating Temperature Max
    +60°C
    Recommended Operating Temperature Min
    -40°C
    Ripple Noise
    35 mVpp
    Short Circuit Current
    -3.5A
    Thermal Resistance
    45°C/W
    Transient Response
    100 µSec

    Products Detail

    The PT79SR100 series are negative input/negative output 3-terminal integrated switching regulators. They feature high efficiency (>85%), self-contained inductor, maximum output current of -1.5A, and output voltage laser trimmed to industry standard voltages. They have excellent line and load regulation, and are ideal for applications such as RS232 and Ethernet communications, ECL logic, and op-amp circuitry. The regulators include short circuit protection and over-temperature protection.

    Key Features

    • High Efficiency >85%
    • Self-Contained Inductor
    • Maximum output current -1.5A
    • Laser trimmed output voltage
    • Excellent line and load regulation
    • Short Circuit Protection
    • Over-Temperature Protection

    Application scenarios

    • RS232 communications
    • Ethernet communications
    • ECL logic
    • op-amp circuitry

    Documents

    Datasheets:

    PT79SR108V-Texas-Instruments-datasheet-10256995.pdfPT79SR108V-Texas-Instruments-datasheet-148723.pdfPT79SR108V-Texas-Instruments-datasheet-3389.pdf
    Shipping & Warranty

    Fast Dispatch: Ships in 5-7 days(in-stock parts within 1-2 days)

    Unishop Global Export: 1-7 days, $40.00

    Guaranteed Delivery: Door-to-door in 30 days

    Compliant Worldwide Shipping: DHL, FedEx, SF, and UPS.

    Feature

    • 30-Day Guarantee
      30-Day Guarantee
    • Fasted Delivery
      Fasted Delivery
    • Hassle-Free Returns
      Hassle-Free Returns
    • Secure payment method
      Secure payment method
    Related Information
    • Part Number
      Manufacturer
      Stock Status
      Pricing
      RoHS/Datasheet
    • MAX1742EEE
      Rochester
      Available for RFQ
      Request Volume Pricing
    • MIC2185BQS
      Rochester
      Available for RFQ
      Request Volume Pricing
    • PT4506A
      Rochester
      Available for RFQ
      Request Volume Pricing
      -
    • PT6409P
      Rochester
      Available for RFQ
      Request Volume Pricing
      -
    • ISL6520CR
      Rochester
      Available for RFQ
      Request Volume Pricing
    • PT5544A
      Rochester
      Available for RFQ
      Request Volume Pricing
      -
    • 78ST205VC
      Rochester
      Available for RFQ
      Request Volume Pricing
      -
    • FAN5068MPX
      Rochester
      Available for RFQ
      Request Volume Pricing
    • PT4585C
      Rochester
      Available for RFQ
      Request Volume Pricing
      -
    • PT6884A
      Rochester
      Available for RFQ
      Request Volume Pricing

    LV5768MZ-TLM-H

    LV5768MZ-TLM-H

    Rochester

    FAN5068MPX

    FAN5068MPX

    Rochester

    PT5045A

    PT5045A

    Rochester

    ISL6413IR-T5K

    ISL6413IR-T5K

    Rochester

    PT5544A

    PT5544A

    Rochester

    TPS56302PWP

    TPS56302PWP

    Rochester

    PT5821A

    PT5821A

    Rochester

    PT5823N

    PT5823N

    Rochester

    PT4826A

    PT4826A

    Rochester

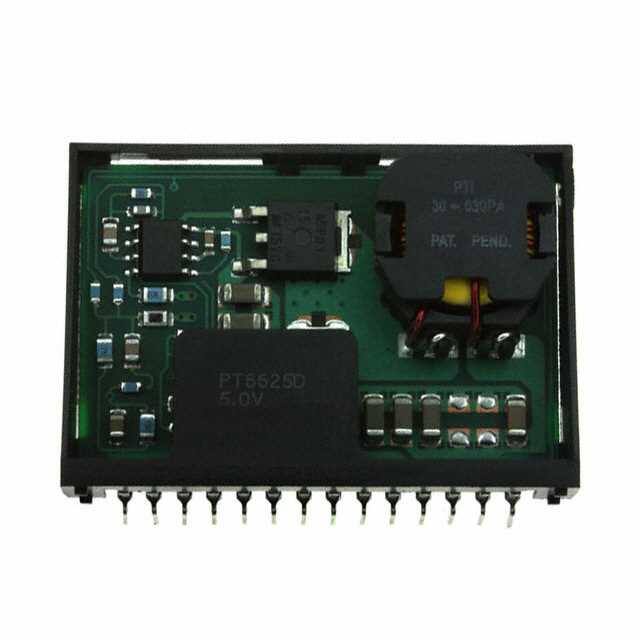

    PT6625D
