1-36-5151 [3M]

Name: 1-36-5151
Brand: 3M
SKU: 1-36-5151
Availability: InStock

Part No:

1-36-5151

Category:

Adhesive Tapes

Manufacturer:

3M

Description:

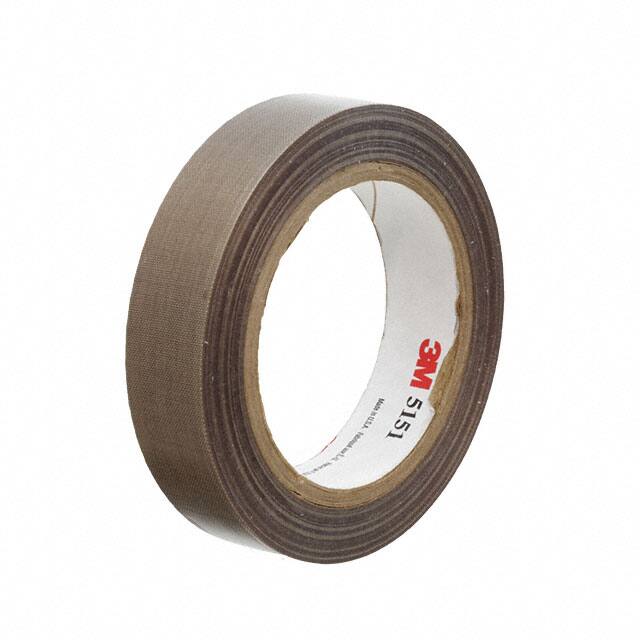

Product 3M™ PTFE Glass Cloth Tapes 5151 and 5153 are constructed using (PTFE) polytetrafluoroethylene impregnated glass cloth with silicone adhesive. These tapes are used in many applications requiring high temperature performance and high abrasion resistance.

Datasheet:

Stock Status:

Available for RFQ

Pricing:

Request Volume Pricing

Quote Response:

Within 24 Hours

Shipping:

In-stock parts ship in 1–2 business days

Specification

Type

Parameter

Temperature Use Range

-100°F ~ 500°F

Adhesive Type

silicone

Roll Length

36 yds. (32.9 m)

Shelf Life

two years from date of manufacture

Storage Temperature

60°F ~ 80°F

5151 Adhesion To Steel

33 oz./in. width (36 N/100 mm)

5151 Backing Thickness

3.0 mils (0.08 mm)

5151 Tensile Strength At Break

110 lbs./in.width (1925 N/100 mm)

5151 Total Tape Thickness

5.3 mils (0.13 mm)

5151PL Liner Material

embossed UPVC

5153 Adhesion To Steel

43 oz./in. width (47 N/100 mm)

5153 Backing Thickness

5.8 mils (0.15 mm)

5153 Tensile Strength At Break

290 lbs./in.width (5075 N/100 mm)

5153 Total Tape Thickness

8.0 mils (0.20 mm)

5153L Liner Material

embossed UPVC

Backing Material

woven glass cloth impregnated with PTFE

Maximum Temperature

600°F (316°C)

Roll Widths

12, 24 and 36 in.

Storage Relative Humidity

40% ~ 50%

Storage Temperature Max C

27°C

Storage Temperature Min C

15°C

Products Detail

3M™ PTFE Glass Cloth Tapes 5151 and 5153 are made of woven glass cloth impregnated with PTFE and coated with silicone adhesive. They come in standard and premium grades, with or without liner. Features include very low moisture absorption, high tensile strength, thick glass cloth backing for wear life and impact resistance, thick PTFE coating for smooth non-stick surface, and silicone adhesive for high temperature performance. Available in roll lengths of 36 yards (32.9 m) and widths of 12, 24, and 36 inches.

Key Features

Very low moisture absorption
Greater tensile strength and resistance to tear and puncture than typical PTFE film backed tapes
Thick glass cloth backing for long wear life and high impact and puncture resistance
Thick PTFE coating for exceptionally smooth surface and non-stick, low friction surface
Easy release liner on versions with liner
Silicone adhesive offers high temperature performance and long aging.

Application scenarios

Easy release surface on packaging and heat sealing machines
ironing and pressing equipment; Release surface on metal bonding tools; Lining conveying chutes
troughs and ducts; Covering rollers
drums
turnbars and formers on stitches
binders and other process machinery.

Documents

Datasheets:

5151,53 1-36-5151-3M-datasheet-60817883.pdf

ConflictMineralStatement:

3M-company-24.pdf

Product FAQ

1. Is 1-36-5151 available for RFQ?

Yes. 1-36-5151 by 3M is available for RFQ. Submit your required quantity and our team will confirm real-time stock, lead time, and volume pricing.

2. Why is there no fixed price for 1-36-5151?

Pricing for 1-36-5151 can vary by order quantity, market availability, date code, packaging, and delivery destination. Request a quote to receive the latest volume pricing.

3. What are the key specifications of 1-36-5151?

1-36-5151 is a 3M Adhesive Tapes with 5151 Tensile Strength At Break: 110 lbs./in.width (1925 N/100 mm) and 5153 Tensile Strength At Break: 290 lbs./in.width (5075 N/100 mm). Review the product details or submit an RFQ if you need confirmation before purchase.

4. How fast can I get a quote for 1-36-5151?

Our sales team usually responds within 24 hours after receiving your RFQ. The quote may include stock status, unit price, lead time, shipping options, and available alternatives.

5. How soon can 1-36-5151 be shipped?

If stock is confirmed, in-stock parts can usually ship within 1–2 business days. Final lead time depends on quantity, stock source, and delivery destination.

6. Can you suggest alternatives to 1-36-5151?

Yes. If 1-36-5151 is unavailable, obsolete, or does not meet your required lead time, we can help check similar 3M Adhesive Tapes parts or compatible alternatives.
