3609/30 [3M]

Name: 3609/30
Brand: 3M
SKU: 3609/30
Availability: InStock

Part No:

3609/30

Multi-Conductor Cables

Manufacturer:

3M

Description:

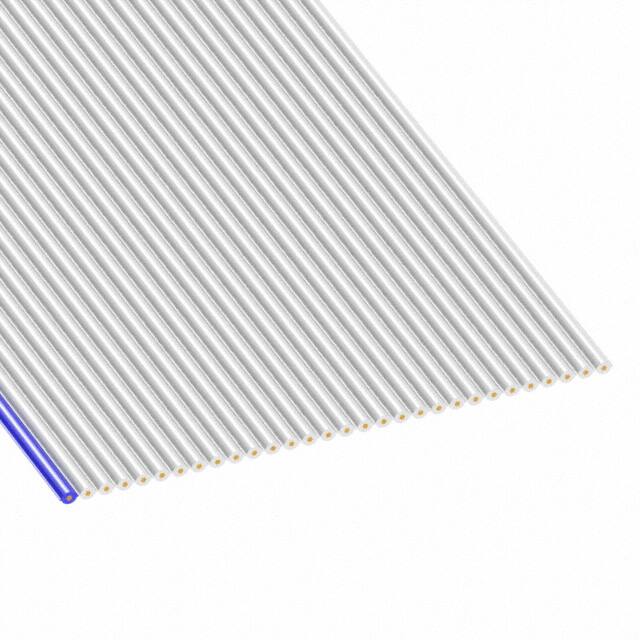

3M Round Conductor Flat Cable, 0.025 inch pitch, 30 AWG stranded, FEP insulation, 3609 Series.

RoHS Status:

Datasheet:

Stock Status:

Available for RFQ

Pricing:

Request Volume Pricing

Quote Response:

Within 24 Hours

Shipping:

In-stock parts ship in 1–2 business days

Specification

Type

Parameter

Insulation Resistance

> 1 × 10^10Ω/10 ft

Characteristic Impedance

91Ω

Operating Temperature

-55°C ~ +150°C

Insulation Material

FEP

RoHS Status

RoHS Compliant

RoHS Status

RoHS Compliant

Packing

Roll (100 ft)

Capacitance

14.7pF/ft

Conductor Pitch

0.025 inch

Conductor Spec

30 AWG 7 × 38 AWG Silver Plated Stranded Copper

Flammability Rating

VW-1

Products Detail

The 3M™ Round Conductor Flat Cable 3609 Series features FEP insulation compatible with most insulation displacement connectors and a 0.025 inch pitch for mass termination. It offers low dielectric constant, excellent abrasion and chemical resistance, excellent mechanical durability, and is nonflammable. The cable is UL Recognized to 150°C and RoHS compliant. Conductors are 30 AWG 7 × 38 AWG silver plated stranded copper. Electrical specifications include a voltage rating of 150V (USA) and <50V (EU), insulation resistance > 1 × 10^10 Ω/10 ft, characteristic impedance of 91 Ω (unbalanced), capacitance of 14.7 pF/ft, inductance of 0.12 μH/ft, propagation delay of 1.34 ns/ft, and velocity of propagation of 76%. Environmental specifications include a temperature rating of -55°C to +150°C and a flammability rating of VW-1 (USA).

Key Features

FEP insulation compatible with most insulation displacement connectors
0.025 inch pitch parallel conductors for mass termination
Low dielectric constant
Excellent abrasion and chemical resistance
Excellent mechanical durability
Nonflammable
UL Recognized to 150°C
RoHS Compliant
30 AWG 7 × 38 AWG Silver Plated Stranded Copper conductors
Voltage Rating: USA: 150V, EU: <50V
Temperature Rating: -55°C to +150°C
