LTM4644IY#PBF [Analog Devices]

Part No:

LTM4644IY#PBF

Name: LTM4644IY#PBF
Brand: Analog Devices
SKU: LTM4644IY#PBF

Category:DC/DC Converters

Manufacturer:Analog Devices

Description:DC DC CONVERTER 4X0.6-5.5V.Non-Isolated PoL Module DC DC Converter 4 Output 0.6 ~ 5.5V 0.6 ~ 5.5V 0.6 ~ 5.5V 0.6 ~ 5.5V 4A, 4A, 4A, 4A 4V - 14V Input

Package:BGA-77

RoHS Status:

Datasheet:

Production Status:

Active

In Stock Status:

Available

Specification

Type

Parameter

Series

µModule®

Packaging

Tray

Part Status

Active

Manufacturer Lead Time

39 Weeks

Applications

ITE (Commercial)

Current - Output (Max)

4A, 4A, 4A, 4A

Features

OCP, OTP, OVP

Mounting Type

Surface Mount

Number of Outputs

4

Operating Temperature

-40°C ~ 125°C

Package / Case

77-BBGA Module

Size / Dimension

0.59" L x 0.35" W x 0.20" H (15.0mm x 9.0mm x 5.0mm)

Supplier Device Package

77-BGA (15x9)

Type

Non-Isolated PoL Module

Voltage - Input (Max)

14V

Voltage - Input (Min)

4V

Voltage - Output 1

0.6 ~ 5.5V

Voltage - Output 2

0.6 ~ 5.5V

Voltage - Output 3

0.6 ~ 5.5V

Voltage - Output 4

0.6 ~ 5.5V

ExportControlClassNumber

EAR99

HtsusCode

8542.39.0060

MoistureSensitivityLevel

3 (168 Hours)

ReachStatus

REACH Unaffected

RohsStatus

ROHS3 Compliant

Products Detail

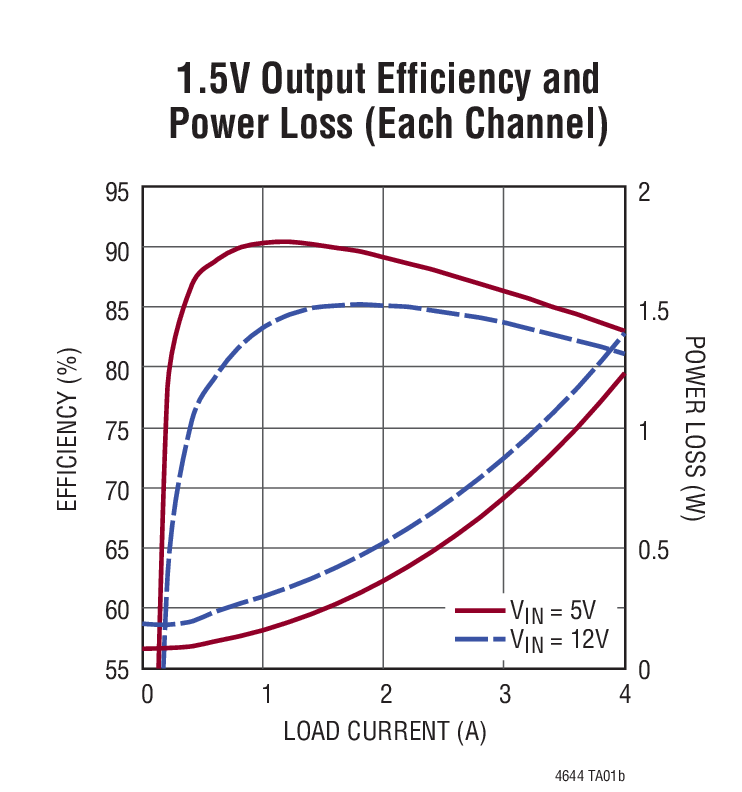

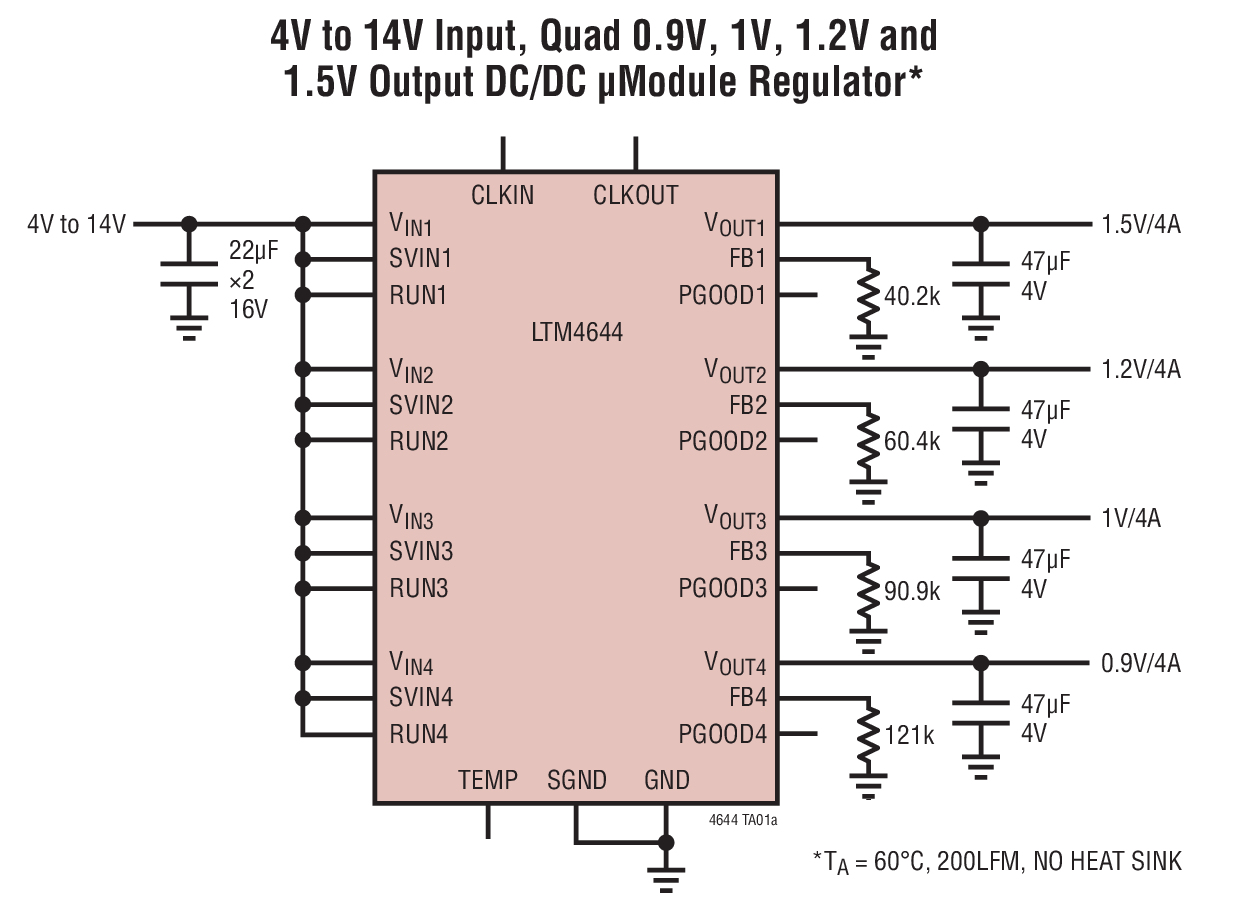

The LTM®4644/LTM4644-1 is a quad DC/DC step-down µModule (micromodule) regulator with 4A per output. Outputs can be paralleled in an array for up to 16A capability. Included in the package are the switching controllers, power FETs, inductors and support components. Operating over an input voltage range of 4V to 14V or 2.375V to 14V with an external bias supply, the LTM4644/LTM4644-1 supports an output voltage range of 0.6V to 5.5V. Its high efficiency design delivers 4A continuous (5A peak) output current per channel. Only bulk input and output capacitors are needed.

Product Package 1
