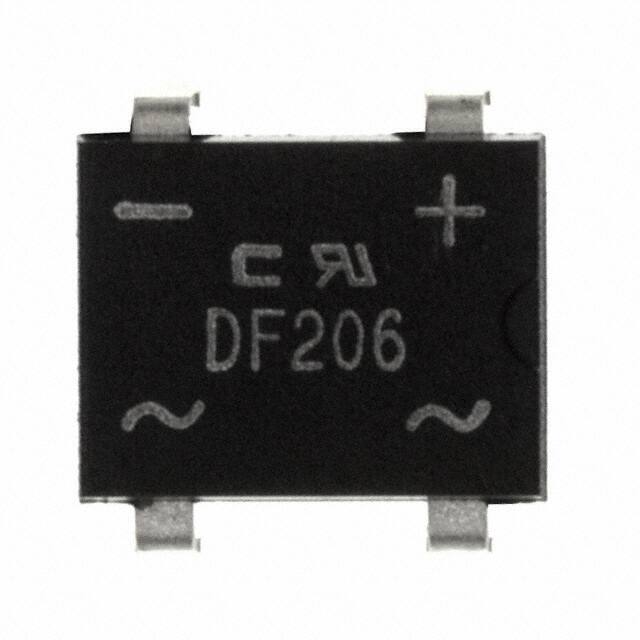

DF206-G Overview

By using the base part number DF206, the base part number can identify several related parts.Basically, it's an electronic component with a 4-EDIP (0.321, 8.15mm) package.Bridge rectifier is important to monBridge rectifieror the reverse leakage current and ensure Bridge rectifier does not exceed 0 .Through Hole represents the mounting method.In order to ensure normal operation, the temperature must be set to -55°C~150°C TJ.In terms of maximum output voltage, it can support 2A.Monitor surge currents and limit them to zero.

DF206-G Features

4-EDIP (0.321, 8.15mm) package
operating at a temperature of -55°C~150°C TJ
the maximum output voltage of 2A

DF206-G Applications

There are a lot of Comchip Technology
DF206-G applications of bridge rectifiers.

• Motor controls ? Low Voltage and Medium Voltage converters
• SCR power bridges for solid state starters
• SCR and diode based input rectifiers
• Crowbar systems for motor drives
• Wind power (alternative energy) ? Converters available as diodes, SCRs or IGBTs
• Transportation ? Traction rectifiers and auxiliary rectifiers
• Inductive heating ? Input rectifiers
• Welding systems ? Input rectifiers and fast recovery diodes
• Uninterruptible power supplies ? SCR transfer switches and input rectifiers
• Electroplating systems ? Input SCRs and output rectifiers
