    EAIRMDA4 [EVERLIGHT]

    EAIRMDA4
    EAIRMDA4

    Part No:

    EAIRMDA4

    Category:

    Optical Sensors

    Manufacturer:

    EVERLIGHT

    Description:

    The EAIRMDA4 is an infrared receiver module with a DIP type package, designed using the latest IC technology. It features high sensitivity, long reception range, and immunity against ambient light and EMI.

    RoHS Status:

    Product FAQ

    1. Is EAIRMDA4 available for RFQ?

    Yes. EAIRMDA4 by EVERLIGHT is available for RFQ. Submit your required quantity and our team will confirm real-time stock, lead time, and volume pricing.

    2. Why is there no fixed price for EAIRMDA4?

    Pricing for EAIRMDA4 can vary by order quantity, market availability, date code, packaging, and delivery destination. Request a quote to receive the latest volume pricing.

    3. What are the key specifications of EAIRMDA4?

    EAIRMDA4 is a EVERLIGHT Optical Sensors with Reception Range L45 Min: 6 m and Reception Range L0 Min: 14 m. Review the product details or submit an RFQ if you need confirmation before purchase.

    4. How fast can I get a quote for EAIRMDA4?

    Our sales team usually responds within 24 hours after receiving your RFQ. The quote may include stock status, unit price, lead time, shipping options, and available alternatives.

    5. How soon can EAIRMDA4 be shipped?

    If stock is confirmed, in-stock parts can usually ship within 1–2 business days. Final lead time depends on quantity, stock source, and delivery destination.

    6. Can you suggest alternatives to EAIRMDA4?

    Yes. If EAIRMDA4 is unavailable, obsolete, or does not meet your required lead time, we can help check similar EVERLIGHT Optical Sensors parts or compatible alternatives.

    RFQ

    Part Number:

    EAIRMDA4

    Manufacturer:

    EVERLIGHT

    Looking for Pricing? Contact us for volume pricing.

    IMPORTANT NOTICE

    Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.

    Featured Product

    Datasheet:

    Stock Status:

    Available for RFQ

    Pricing:

    Request Volume Pricing

    Quote Response:

    Within 24 Hours

    Shipping:

    In-stock parts ship in 1–2 business days

    Specification

    Type
    Parameter
    Soldering Temperature
    260°C
    Current Consumption
    0.6mA
    Operating Temperature
    -20°C ~ +80°C
    Supply Voltage
    2.7V ~ 5.5V
    Storage Temperature
    -40°C ~ +85°C
    RoHS Status
    RoHS Compliant
    Package
    DIP
    RoHS Status
    RoHS Compliant
    Packing
    1500pcs/box, 10 boxes/carton
    Half Angle Horizontal
    ±35 deg
    Half Angle Vertical
    ±25 deg
    Halogen Free
    Yes
    Halogen Free Desc
    Br<900ppm, Cl<900ppm, Br+Cl<1500ppm
    Output High Voltage
    Vcc-0.4V
    Output Low Voltage
    0.5V
    Peak Wavelength
    940 nm
    Pull Up Resistor Max
    115kΩ
    Pull Up Resistor Min
    85kΩ
    Pulse Width High Max
    750 µs
    Pulse Width High Min
    450 µs
    Pulse Width Low Max
    750 µs
    Pulse Width Low Min
    450 µs
    Reception Range L0 Min
    14 m
    Reception Range L45 Min
    6 m

    Products Detail

    The EAIRMDA4 is a DIP type infrared receiver module that integrates a PIN diode and preamplifier assembled onto a lead frame and molded into a black epoxy package, which acts as an IR filter. It features high protection against EMI, an ellipsoid lens for improved reception, and is available for various carrier frequencies (38 kHz for this model). It has low operating voltage (2.7V to 5.5V) and low power consumption, high immunity against ambient light and TFT backlight, long reception range, and high sensitivity. The demodulated output signal can be directly decoded by a microprocessor. The device is Pb free, RoHS compliant, compliant with EU REACH, and halogen free (Br<900ppm, Cl<900ppm, Br+Cl<1500ppm).

    Key Features

    • High EMI protection
    • Ellipsoid lens for improved reception
    • Available for various carrier frequencies
    • Min burst length: 10 cycles
    • Min gap length: 14 cycles
    • Low operating voltage and low power consumption
    • High immunity against ambient light
    • High immunity against TFT backlight
    • Long reception range
    • High sensitivity
    • Pb free and RoHS compliant
    • Compliance with EU REACH
    • Halogen Free (Br<900ppm, Cl<900ppm, Br+Cl<1500ppm)

    Application scenarios

    • AV equipment such as TV
    • VCR
    • DVD
    • CD
    • MD
    • etc.; CATV set top boxes; Multi-media Equipment; Other devices using IR remote control

    Documents

    Datasheets:

    EAIRMDA4
    Shipping & Warranty

    Fast Dispatch: Ships in 5-7 days(in-stock parts within 1-2 days)

    Unishop Global Export: 1-7 days, $40.00

    Guaranteed Delivery: Door-to-door in 30 days

    Compliant Worldwide Shipping: DHL, FedEx, SF, and UPS.

    Feature

    • 30-Day Guarantee
      30-Day Guarantee
    • Fasted Delivery
      Fasted Delivery
    • Hassle-Free Returns
      Hassle-Free Returns
    • Secure payment method
      Secure payment method

    BEST SELL
    MT29F4G08ABADAWP-IT:D

    MT29F4G08ABADAWP-IT:D

    Micron

    BEST SELL
    INA226AIDGSR

    INA226AIDGSR

    Texas Instruments

    BEST SELL
    K4FBE3D4HM-THCL

    K4FBE3D4HM-THCL

    SAMSUNG

    BEST SELL
    MTFC4GACAJCN-4M IT

    MTFC4GACAJCN-4M IT

    Micron

    BEST SELL
    H5AN4G6NBJR-UHI

    H5AN4G6NBJR-UHI

    SK HYNIX

    BEST SELL
    MT53E1G32D2FW-046 AAT:C

    MT53E1G32D2FW-046 AAT:C

    Micron

    BEST SELL
    BH66F5362

    BH66F5362

    Holtek

    BEST SELL
    ISL8215MIRZ

    ISL8215MIRZ

    RENESAS

    BEST SELL
    K4A4G085WF-BCTD

    K4A4G085WF-BCTD

    SAMSUNG

    BEST SELL
    PCI1003

    PCI1003

    Microchip

    Related Information
    • Part Number
      Manufacturer
      Stock Status
      Pricing
      RoHS/Datasheet
    • IRM-H638M3/TR2
      EVERLIGHT
      Available for RFQ
      Request Volume Pricing
      -
    • ITR8104
      EVERLIGHT
      Available for RFQ
      Request Volume Pricing
    • IRM-V038/TR1-P
      EVERLIGHT
      Available for RFQ
      Request Volume Pricing
    • IRM-8601M2(GPS)
      EVERLIGHT
      Available for RFQ
      Request Volume Pricing
      -
    • EAIRMIA2
      EVERLIGHT
      Available for RFQ
      Request Volume Pricing
    • EAIRMIA1
      EVERLIGHT
      Available for RFQ
      Request Volume Pricing
    • EL-PT5529B/L2/S3
      EVERLIGHT
      Available for RFQ
      Request Volume Pricing
      -
    • ITR20510/TR8
      EVERLIGHT
      Available for RFQ
      Request Volume Pricing
    • EAIRMIA0
      EVERLIGHT
      Available for RFQ
      Request Volume Pricing
    • EAPDLP04SCAA4
      EVERLIGHT
      Available for RFQ
      Request Volume Pricing

    IRM-8602S-2

    IRM-8602S-2

    EVERLIGHT

    EAIRMLA2

    EAIRMLA2

    EVERLIGHT

    IRM-3738T

    IRM-3738T

    EVERLIGHT

    IRM-3638J15

    IRM-3638J15

    EVERLIGHT

    IRM-3636N3

    IRM-3636N3

    EVERLIGHT

    ITR20001/T

    ITR20001/T

    EVERLIGHT

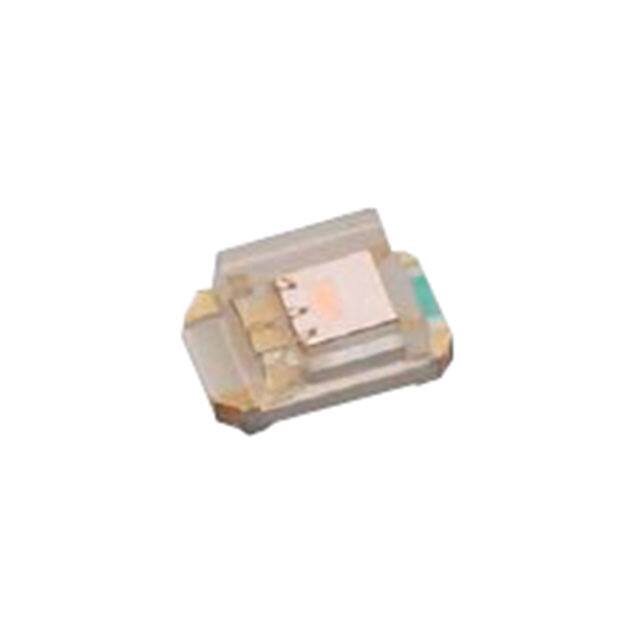

    ALS-PDIC17-55C/TR8
