EAPSR3216A1 [EVERLIGHT]

Name: EAPSR3216A1
Brand: EVERLIGHT
SKU: EAPSR3216A1
Availability: InStock

Part No:

EAPSR3216A1

Category:

Optical Detectors & Sensors

Manufacturer:

EVERLIGHT

Description:

0.8mm Height Flat Top Phototransistor

RoHS Status:

Datasheet:

Stock Status:

Available for RFQ

Pricing:

Request Volume Pricing

Quote Response:

Within 24 Hours

Shipping:

In-stock parts ship in 1–2 business days

Specification

Type

Parameter

Power Dissipation

75mW

Soldering Temperature

260°C

Collector Emitter Voltage

30V

Operating Temperature

-25°C ~ +85°C

RoHS Status

RoHS Compliant

Storage Temperature

-40°C ~ +85°C

RoHS Status

RoHS Compliant

Packing

Tape and reel

Collector Current

20mA

Collector Dark Current

50 nA

Collector Emitter Breakdown Voltage

60V

Collector Emitter Saturation Voltage

0.4V

Emitter Collector Breakdown Voltage

7V

On State Collector Current

1.0mA

Peak Sensitivity Wavelength

940 nm

Spectral Bandwidth Max

1100 nm

Spectral Bandwidth Min

730 nm

Products Detail

EAPSR3216A1 is a phototransistor in miniature SMD package molded in black with spherical top view lens. Spectrally matched to visible and infrared emitting diodes. Features include fast response time, high photo sensitivity, small junction capacitance, Pb-free construction, and RoHS compliance.

Key Features

Fast response time, High photo sensitivity, Small junction capacitance, Pb free, RoHS compliant

Application scenarios

Miniature switch
Counters and sorter
Position sensor
Infrared applied system
Encoder

Documents

Datasheets:

EAPSR3216A1

Product FAQ

1. Is EAPSR3216A1 available for RFQ?

Yes. EAPSR3216A1 by EVERLIGHT is available for RFQ. Submit your required quantity and our team will confirm real-time stock, lead time, and volume pricing.

2. Why is there no fixed price for EAPSR3216A1?

Pricing for EAPSR3216A1 can vary by order quantity, market availability, date code, packaging, and delivery destination. Request a quote to receive the latest volume pricing.

3. What are the key specifications of EAPSR3216A1?

EAPSR3216A1 is a EVERLIGHT Optical Detectors & Sensors with Collector Emitter Saturation Voltage: 0.4V and Collector Emitter Breakdown Voltage: 60V. Review the product details or submit an RFQ if you need confirmation before purchase.

4. How fast can I get a quote for EAPSR3216A1?

Our sales team usually responds within 24 hours after receiving your RFQ. The quote may include stock status, unit price, lead time, shipping options, and available alternatives.

5. How soon can EAPSR3216A1 be shipped?

If stock is confirmed, in-stock parts can usually ship within 1–2 business days. Final lead time depends on quantity, stock source, and delivery destination.

6. Can you suggest alternatives to EAPSR3216A1?

Yes. If EAPSR3216A1 is unavailable, obsolete, or does not meet your required lead time, we can help check similar EVERLIGHT Optical Detectors & Sensors parts or compatible alternatives.

Featured Product

Related Information

Part Number
Manufacturer
Stock Status
Pricing
RoHS/Datasheet
PD70-01B/TR7
EVERLIGHT
Available for RFQ
Request Volume Pricing
PD204-6C
EVERLIGHT
Available for RFQ
Request Volume Pricing
-
EAPDSZ4439A4
EVERLIGHT
Available for RFQ
Request Volume Pricing
PD70-01C/TR10
EVERLIGHT
Available for RFQ
Request Volume Pricing
PD60-48C/TR8
EVERLIGHT
Available for RFQ
Request Volume Pricing
-
PT2559B/L2/H2(A5)
EVERLIGHT
Available for RFQ
Request Volume Pricing
-
EL3021S1(TB)
EVERLIGHT
Available for RFQ
Request Volume Pricing
EL3051S(TA)
EVERLIGHT
Available for RFQ
Request Volume Pricing
EL3063S(TB)
EVERLIGHT
Available for RFQ
Request Volume Pricing
EL3033M
EVERLIGHT
Available for RFQ
Request Volume Pricing

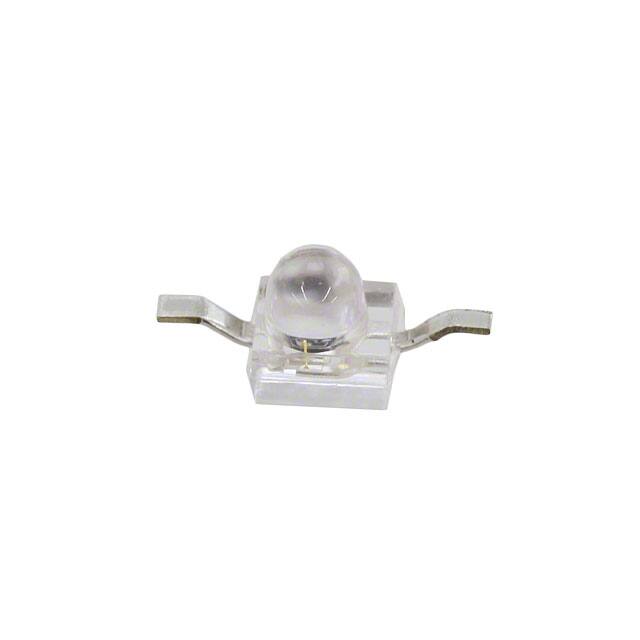

PT91-21C/TR10
