Name: FR30GR02
Brand: GeneSiC Semiconductor
SKU: FR30GR02

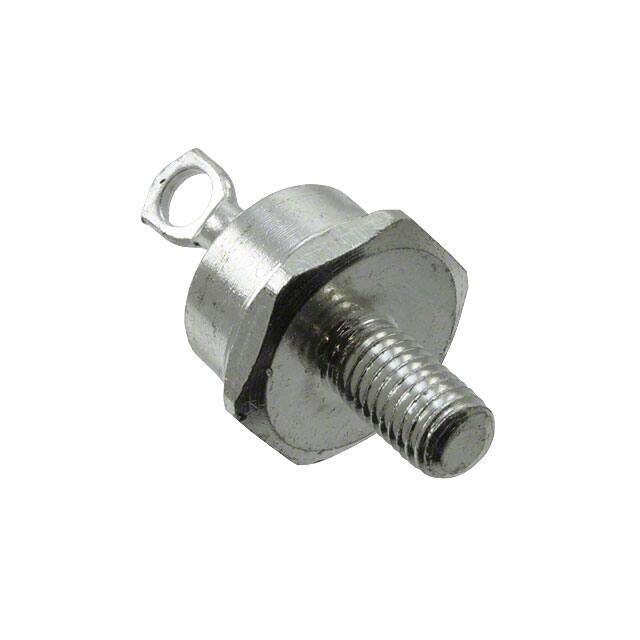

FR30GR02 [GeneSiC Semiconductor]

Part No:

FR30GR02

Diodes & Rectifiers

Manufacturer:

GeneSiC Semiconductor

Description:

Standard, Reverse Polarity Diode Rectifier Fast Recovery =< 500ns, > 200mA (Io) 1V @ 30A -40°C~125°C 25?A @ 50V 1-Termination Bulk DO-203AB, DO-5, Stud Chassis, Stud Mount

Package:

-

RoHS Status:

Datasheet:

-

Production Status:

In Stock Status:

Specification

Type

Parameter

Lifecycle Status

PRODUCTION (Last Updated: 6 months ago)

Factory Lead Time

10 Weeks

Mount

Chassis, Stud, Through Hole

Mounting Type

Chassis, Stud Mount

Package / Case

DO-203AB, DO-5, Stud

Number of Pins

Diode Element Material

SILICON

Packaging

Bulk

Published

2003

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

Termination

Solder

ECCN Code

EAR99

HTS Code

8541.10.00.80

Pitch

2.54mm

Terminal Position

UPPER

Orientation

Right Angle

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

JESD-30 Code

O-MUPM-D1

Number of Contacts

Number of Elements

Element Configuration

Single

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Diode Type

Standard, Reverse Polarity

Voltage - Forward (Vf) (Max) @ If

1V @ 30A

Case Connection

ANODE

Forward Current

30A

Operating Temperature - Junction

-40°C~125°C

Max Surge Current

300A

Forward Voltage

1.4V

Max Reverse Voltage (DC)

400V

Average Rectified Current

30A

Number of Phases

Reverse Recovery Time

200 ns

Max Repetitive Reverse Voltage (Vrrm)

400V

Reverse Voltage

400V

Recovery Time

200 ns

REACH SVHC

No SVHC

RoHS Status

RoHS Compliant

Products Detail

FR30GR02 Overview

Reverse voltage 400V is a reasonable value.For this device, the average rectified current is 30A volts.In this case, forward current can reach 30A.Phase diode rectifier is possible to use a surge current of maximum value 300A.Based on the data chart, the peak reverse is 25?A.

FR30GR02 Features

an average rectified current of 30A volts
the peak reverse is 25?A

FR30GR02 Applications

There are a lot of GeneSiC Semiconductor
FR30GR02 applications of single-phase diode rectifier.

DC motor control and drives
Battery chargers
Welders
Power converters
Reverse Polarity Protection
Ultra High-Speed Switching
Freewheeling
Polarity Protection Diode
Recirculating Diode
Switching Diode

Key Features

No key features available

Application scenarios

No application scenarios available
