Name: FR70G02
Brand: GeneSiC Semiconductor
SKU: FR70G02

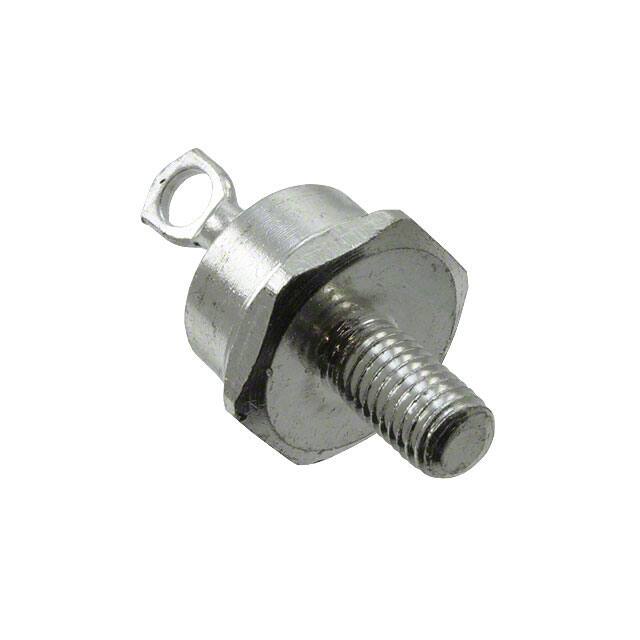

FR70G02 [GeneSiC Semiconductor]

Part No:

FR70G02

Category:

Diodes & Rectifiers

Manufacturer:

GeneSiC Semiconductor

Description:

Standard Diode Rectifier Fast Recovery =< 500ns, > 200mA (Io) 1.4V @ 70A -40°C~125°C 25?A @ 100V 1-Termination Bulk DO-203AB, DO-5, Stud Chassis, Stud Mount

Package:

-

RoHS Status:

Datasheet:

-

Production Status:

In Stock Status:

Specification

Type

Parameter

Lifecycle Status

PRODUCTION (Last Updated: 6 months ago)

Factory Lead Time

10 Weeks

Mount

Chassis, Stud

Mounting Type

Chassis, Stud Mount

Package / Case

DO-203AB, DO-5, Stud

Number of Pins

2

Diode Element Material

SILICON

Packaging

Bulk

Published

2010

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

1

ECCN Code

EAR99

HTS Code

8541.10.00.80

Terminal Position

UPPER

Terminal Form

SOLDER LUG

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

JESD-30 Code

O-MUPM-D1

Number of Elements

1

Element Configuration

Single

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Diode Type

Standard

Voltage - Forward (Vf) (Max) @ If

1.4V @ 70A

Case Connection

CATHODE

Forward Current

70A

Operating Temperature - Junction

-40°C~125°C

Max Surge Current

870A

Forward Voltage

1.5V

Max Reverse Voltage (DC)

400V

Average Rectified Current

70A

Number of Phases

1

Reverse Recovery Time

200 ns

Max Repetitive Reverse Voltage (Vrrm)

400V

Reverse Voltage

400V

Recovery Time

200 ns

RoHS Status

RoHS Compliant

Products Detail

FR70G02 Overview

An appropriate reverse voltage is 400V.Devices with this rating have an average rectified current of 70A volts.70A is the maximum value of forward current.There can be no surge current above 870A.Using the data chart, the peak reverse is 25?A in the datasheets.
