    RN-111B-E [Microchip]

    RN-111B-E
    RN-111B-E

    Part No:

    RN-111B-E

    Category:

    Wireless Modules

    Manufacturer:

    Microchip

    Description:

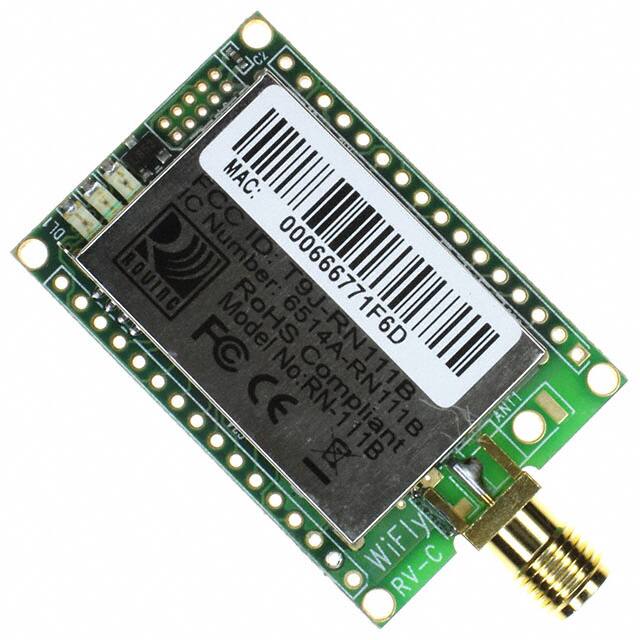

    The WiFly module is a stand alone, embedded 802.11b device. Because of its small form factor and extremely low power consumption, the RN-111B is perfect for mobile wireless applications such as asset monitoring, GPS tracking and portable devices.

    RoHS Status:

    Product FAQ

    1. Is RN-111B-E available for RFQ?

    Yes. RN-111B-E by Microchip is available for RFQ. Submit your required quantity and our team will confirm real-time stock, lead time, and volume pricing.

    2. Why is there no fixed price for RN-111B-E?

    Pricing for RN-111B-E can vary by order quantity, market availability, date code, packaging, and delivery destination. Request a quote to receive the latest volume pricing.

    3. What are the key specifications of RN-111B-E?

    RN-111B-E is a Microchip Wireless Modules with Power Consumption Connected Idle Typ: 40mA and Power Consumption Connected TX Max: 180mA. Review the product details or submit an RFQ if you need confirmation before purchase.

    4. How fast can I get a quote for RN-111B-E?

    Our sales team usually responds within 24 hours after receiving your RFQ. The quote may include stock status, unit price, lead time, shipping options, and available alternatives.

    5. How soon can RN-111B-E be shipped?

    If stock is confirmed, in-stock parts can usually ship within 1–2 business days. Final lead time depends on quantity, stock source, and delivery destination.

    6. Can you suggest alternatives to RN-111B-E?

    Yes. If RN-111B-E is unavailable, obsolete, or does not meet your required lead time, we can help check similar Microchip Wireless Modules parts or compatible alternatives.

    RFQ

    Part Number:

    RN-111B-E

    Manufacturer:

    Microchip

    Looking for Pricing? Contact us for volume pricing.

    IMPORTANT NOTICE

    Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.

    Featured Product

    Datasheet:

    Stock Status:

    Available for RFQ

    Pricing:

    Request Volume Pricing

    Quote Response:

    Within 24 Hours

    Shipping:

    In-stock parts ship in 1–2 business days

    Specification

    Type
    Parameter
    Frequency Range
    2402 ~ 2480MHz
    Operating Temperature
    -40°C ~ +85°C
    RoHS Status
    RoHS Compliant
    Storage Temperature
    -40°C ~ +85°C
    RoHS Status
    RoHS Compliant
    Package
    32 Pin DIP
    Body Dimensions
    38.3 mm x 12.7 mm (±0.5 mm)
    Channels
    1-14
    Data Rate
    11/5.5/2/1 Mbit
    Fcc Id
    T9JRN111B
    Flash Memory
    500 KB
    Gpio Count
    6
    Ic Id
    6514A-RN111B
    Modulation
    DSSS(CCK-11, CCK-5.5, DQPSK-2, DBPSK-1)
    Operating Humidity
    90%
    Output Level Max
    12dBm
    Pin Pitch
    2 mm
    Power Consumption Connected Idle Typ
    40mA
    Power Consumption Connected TX Max
    180mA
    Power Consumption Connected TX Typ
    110mA
    Power Consumption Sleep Max
    15uA
    Power Consumption Sleep Min
    10uA
    Power Consumption Sleep Typ
    12uA
    Power Consumption Standby Typ
    35mA
    Receive Sensitivity
    -82 to -93dBm
    Rtc
    Yes
    Security
    WEP128, WPA-PSK, WPA2-PSK (TKIP and AES)
    Sensor Inputs
    8
    Spi
    Yes
    Storage Humidity
    90%
    Supply Voltage VBATT Max
    3.3V
    Supply Voltage VBATT Min
    2.0V
    Supply Voltage VBATT Typ
    3.0V
    Supply Voltage VDD Max
    3.6V
    Supply Voltage VDD Min
    3.0V
    Supply Voltage VDD Typ
    3.3V
    Supply Voltage VIN Max
    12V
    Supply Voltage VIN Min
    4.0V
    Supply Voltage VIN Typ
    5.0V
    Sustained Data Rate
    >200 kbps
    Uart
    TTL, 1200-921600 bps, even/odd parity
    Wake Up Time
    30 ms

    Products Detail

    The WiFly module is a stand alone, embedded 802.11b device with an on board TCP/IP stack and networking applications (telnet, FTP). It requires only four connections (PWR, TX, RX, GND) for wireless data. Features include ultra-low power consumption, flash memory for user code, FTP over-the-air firmware upgrade, simple ASCII command interface, sustained data rates >200 kbps, security (WEP128, WPA-PSK, WPA2-PSK), real-time clock, up to 500KB flash storage for data logs, worldwide certifications (FCC, IC, CE), and RoHS compliance. Accepts 3.0V-16VDC input, includes UART (1200bps-921Kbps), SPI, 6 GPIOs, and 8 sensor inputs (0-1.2VDC).

    Key Features

    • Ultra-low power (40mA RX, 120mA TX burst), Embedded TCP/UDP/IP stack (no host processor required), ICMP/Telnet/TFTP/DHCP/FTP/UDP Time server clients, Flash memory for user code/API, FTP client OTA firmware upgrade, Simple ASCII command interface (local UART/remote TCP/IP), Sustained data rates >200 kbps, Security: WEP128/WPA-PSK/WPA2-PSK (TKIP/AES), Real-time clock for datalogging, Up to 500KB Flash storage, Worldwide approvals (FCC/IC/CE), RoHS compliant, Wide DC input (3.0V-16V), 802.11b radio (CHIP ANT/U.FL/SMA options), UART TTL (1200bps-921Kbps, even/odd parity), SPI port, Low power (<120mA TX, 40mA idle), Ultra-low sleep (~12µA) with instant-on (30ms) wake, Programmable/UART wake, Small 32-pin DIP package (2mm pitch), 6 GPIOs (4mA source/sink), 8 sensor inputs (0-1.2VDC)

    Application scenarios

    • Wireless thermostats
    • RS232/RS485 cable replacement
    • Remote equipment monitoring
    • Scanners
    • GPS and measurement systems
    • Industrial sensor and control

    Documents

    Datasheets:

    RN-111B WiFly ModuleRN-111B-EVAL KitRN-111B-EVAL User Manual

    ConflictMineralStatement:

    Microchip-company-68.pdf
