    Part number
    Part number
    1. Home/
    2. All Categories/
    3. Passive Components/
    4. Capacitors/
    5. 2SWZ330MR06 rubycon

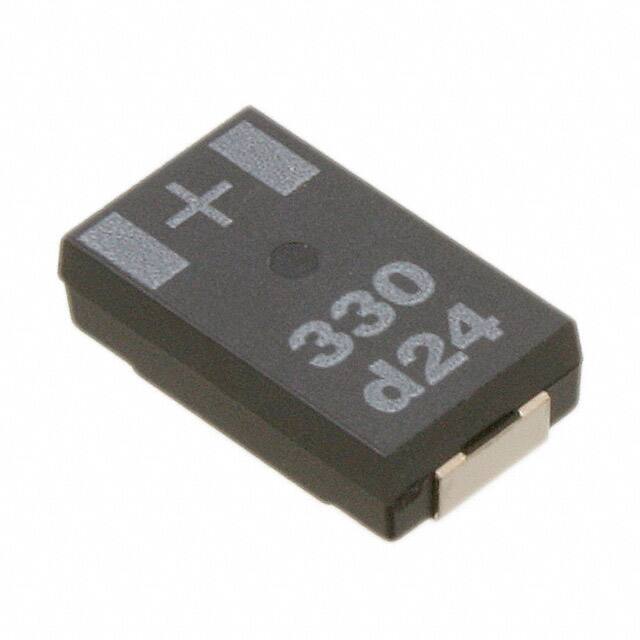

    2SWZ330MR06 [rubycon]

    2SWZ330MR06
    2SWZ330MR06

    Part No:

    2SWZ330MR06

    Category:

    Capacitors

    Manufacturer:

    rubycon

    Description:

    Conductive polymer aluminum solid electrolytic capacitors with ultra low profile (SLG series) and high capacitance with low ESR (SW and SWZ series).

    Datasheet:

    Product FAQ

    1. Is 2SWZ330MR06 available for RFQ?

    Yes. 2SWZ330MR06 by rubycon is available for RFQ. Submit your required quantity and our team will confirm real-time stock, lead time, and volume pricing.

    2. Why is there no fixed price for 2SWZ330MR06?

    Pricing for 2SWZ330MR06 can vary by order quantity, market availability, date code, packaging, and delivery destination. Request a quote to receive the latest volume pricing.

    3. What are the key specifications of 2SWZ330MR06?

    2SWZ330MR06 is a rubycon Capacitors with SLG Maximum Allowable Ripple Current Max: 2700mA and SLG Maximum Allowable Ripple Current Min: 2100mA. Review the product details or submit an RFQ if you need confirmation before purchase.

    4. How fast can I get a quote for 2SWZ330MR06?

    Our sales team usually responds within 24 hours after receiving your RFQ. The quote may include stock status, unit price, lead time, shipping options, and available alternatives.

    5. How soon can 2SWZ330MR06 be shipped?

    If stock is confirmed, in-stock parts can usually ship within 1–2 business days. Final lead time depends on quantity, stock source, and delivery destination.

    6. Can you suggest alternatives to 2SWZ330MR06?

    Yes. If 2SWZ330MR06 is unavailable, obsolete, or does not meet your required lead time, we can help check similar rubycon Capacitors parts or compatible alternatives.

    RFQ

    Part Number:

    2SWZ330MR06

    Manufacturer:

    rubycon

    Looking for Pricing? Contact us for volume pricing.

    IMPORTANT NOTICE

    Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.

    Featured Product

    Stock Status:

    Available for RFQ

    Pricing:

    Request Volume Pricing

    Quote Response:

    Within 24 Hours

    Shipping:

    In-stock parts ship in 1–2 business days

    Specification

    Type
    Parameter
    SLG Capacitance Range Max
    220µF
    SLG Capacitance Range Min
    47µF
    SLG Capacitance Tolerance
    ±20%
    SLG Category Temperature Range Max
    +105°C
    SLG Category Temperature Range Min
    -55°C
    SLG Damp Heat
    60°C, 90%RH, 500hrs, no voltage, within -20% to +60% for capacitance and tanδ, and within -20% to +40% for LC
    SLG Dissipation Factor
    ≤0.1
    SLG Endurance
    105°C, 2000hrs, rated voltage applied, within ±20% of initial value for capacitance, tanδ ≤200% of initial, LC ≤ initial specified value
    SLG Esr Max
    15mΩ
    SLG Esr Min
    9mΩ
    SLG Leakage Current
    ≤0.04CV
    SLG Maximum Allowable Ripple Current Max
    2700mA
    SLG Maximum Allowable Ripple Current Min
    2100mA
    SLG Rated Voltage Range Max
    6.3V
    SLG Rated Voltage Range Min
    2V
    SLG Surge Voltage
    rated voltage X1.25
    SW Capacitance Range Max
    470µF
    SW Capacitance Range Min
    68µF
    SW Capacitance Tolerance
    ±20%
    SW Category Temperature Range Max
    +105°C
    SW Category Temperature Range Min
    -55°C
    SW Damp Heat
    60°C, 90%RH, 500hrs, no voltage, within -20% to +60% for capacitance and tanδ, and within -20% to +40% for LC
    SW Dissipation Factor
    ≤0.1
    SW Endurance
    105°C, 2000hrs, rated voltage applied, within ±20% of initial value for capacitance, tanδ ≤200% of initial, LC ≤ initial specified value
    SW Esr Max
    18mΩ
    SW Esr Min
    9mΩ
    SW Leakage Current
    ≤0.04CV
    SW Maximum Allowable Ripple Current Max
    3500mA
    SW Maximum Allowable Ripple Current Min
    2500mA
    SW Rated Voltage Range Max
    8V
    SW Rated Voltage Range Min
    2V
    SW Surge Voltage
    rated voltage X1.25
    SWZ Capacitance Range Max
    330µF
    SWZ Capacitance Range Min
    47µF
    SWZ Capacitance Tolerance
    ±20%
    SWZ Category Temperature Range Max
    +105°C
    SWZ Category Temperature Range Min
    -55°C
    SWZ Damp Heat
    60°C, 90%RH, 500hrs, no voltage, within -20% to +60% for capacitance and tanδ, and within -20% to +40% for LC
    SWZ Dissipation Factor
    ≤0.1
    SWZ Endurance
    105°C, 2000hrs, rated voltage applied, within ±20% of initial value for capacitance, tanδ ≤200% of initial, LC ≤ initial specified value
    SWZ Esr Max
    25mΩ
    SWZ Esr Min
    4.5mΩ
    SWZ Leakage Current
    ≤0.04CV
    SWZ Maximum Allowable Ripple Current Max
    3500mA
    SWZ Maximum Allowable Ripple Current Min
    1800mA
    SWZ Rated Voltage Range Max
    10V
    SWZ Rated Voltage Range Min
    2V
    SWZ Surge Voltage
    rated voltage X1.25

    Products Detail

    These are conductive polymer aluminum solid electrolytic capacitors featuring ultra low profile (SLG), high capacitance and low ESR (SW), and high capacitance and ultra low ESR (SWZ). They are RoHS compliant and support lead-free reflow soldering. Available in multiple series with different voltage and capacitance ranges.

    Key Features

    • Ultra Low Profile (SLG series)
    • High Capacitance, Low ESR (SW series)
    • High Capacitance, Ultra Low ESR (SWZ series)
    • RoHS Compliance
    • Lead-free reflow soldering (available for MSL3)

    Documents

    Datasheets:

    SLG, SWZ, SW Series2SWZ330MR06-Rubycon-datasheet-12534392.pdf
