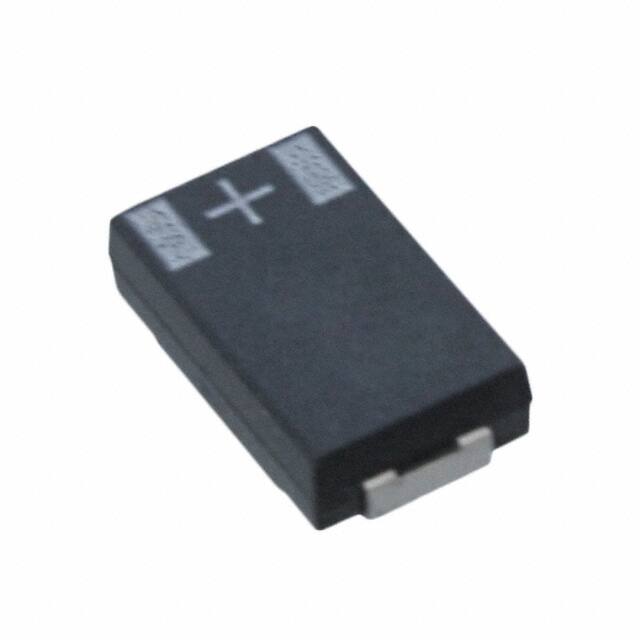

    2SXB150M [rubycon]

    2SXB150M
    2SXB150M

    Part No:

    2SXB150M

    Category:

    Capacitors

    Manufacturer:

    rubycon

    Description:

    Conductive Polymer Aluminum Solid Electrolytic Capacitors PC-CON series including SXB, SXE, SLE, and SZE.

    RoHS Status:

    Product FAQ

    1. Is 2SXB150M available for RFQ?

    Yes. 2SXB150M by rubycon is available for RFQ. Submit your required quantity and our team will confirm real-time stock, lead time, and volume pricing.

    2. Why is there no fixed price for 2SXB150M?

    Pricing for 2SXB150M can vary by order quantity, market availability, date code, packaging, and delivery destination. Request a quote to receive the latest volume pricing.

    3. What are the key specifications of 2SXB150M?

    2SXB150M is a rubycon Capacitors with Damp Heat Delta C SXB SXE SLE: Within -20〜+40% of the initial value and Damp Heat Leakage Current: ≦300% of initial specified value. Review the product details or submit an RFQ if you need confirmation before purchase.

    4. How fast can I get a quote for 2SXB150M?

    Our sales team usually responds within 24 hours after receiving your RFQ. The quote may include stock status, unit price, lead time, shipping options, and available alternatives.

    5. How soon can 2SXB150M be shipped?

    If stock is confirmed, in-stock parts can usually ship within 1–2 business days. Final lead time depends on quantity, stock source, and delivery destination.

    6. Can you suggest alternatives to 2SXB150M?

    Yes. If 2SXB150M is unavailable, obsolete, or does not meet your required lead time, we can help check similar rubycon Capacitors parts or compatible alternatives.

    RFQ

    Part Number:

    2SXB150M

    Manufacturer:

    rubycon

    Looking for Pricing? Contact us for volume pricing.

    IMPORTANT NOTICE

    Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.

    Featured Product

    Datasheet:

    Stock Status:

    Available for RFQ

    Pricing:

    Request Volume Pricing

    Quote Response:

    Within 24 Hours

    Shipping:

    In-stock parts ship in 1–2 business days

    Specification

    Type
    Parameter
    Capacitance Tolerance
    ±20%
    Dissipation Factor
    ≦0.1
    RoHS Status
    RoHS Compliant
    Damp Heat Delta C SXB SXE SLE
    Within -20〜+40% of the initial value
    Damp Heat Delta C SZE
    Within -20〜+60% of the initial value
    Damp Heat Leakage Current
    ≦300% of initial specified value
    Damp Heat Tan Delta
    ≦200% of initial specified value
    Endurance Delta C
    Within ±20% of the initial value
    Endurance Leakage Current
    ≦initial specified value
    Endurance Tan Delta
    ≦200% of initial specified value
    Leakage Current
    ≦0.04CV
    Reflow Soldering
    260°C, 10sec (MSL3)
    SLE Capacitance Range
    47〜100µF
    SLE ESR
    9mΩ
    SLE Package
    7.3 x 4.3 x 1.4 mm
    SLE Rated Voltage Range
    2〜6.3V
    SLE Ripple Current
    3,000mA
    SXB Capacitance Range
    22〜220µF
    SXB ESR
    13〜30mΩ
    SXB Package
    7.3 x 4.3 x 1.9 mm
    SXB Rated Voltage Range
    2〜10V
    SXB Ripple Current
    1,600〜3,000mA
    SXE Capacitance Range
    33〜220µF
    SXE ESR
    7〜9mΩ
    SXE Package
    7.3 x 4.3 x 1.9 mm
    SXE Rated Voltage Range
    2〜6.3V
    SXE Ripple Current
    3,000mA
    SZE Capacitance Range
    100〜150µF
    SZE ESR
    5mΩ
    SZE Package
    7.3 x 4.3 x 1.4 mm
    SZE Rated Voltage Range
    2、2.5V
    SZE Ripple Current
    3,000mA
    Surge Voltage
    Rated voltage ×1.25
    Temperature Range
    -55°C to +105°C

    Products Detail

    These capacitors feature RoHS compliance and lead-free reflow soldering capability (260°C, 10sec). The series includes: SXB (Standard), SXE (Low ESR), SLE (Low Profile, Low ESR), and SZE (Low Profile, Ultra Low ESR). Specifications include temperature range of -55°C to +105°C, various rated voltage and capacitance ranges, low ESR values, and high ripple current capability.

    Key Features

    • RoHS Compliance
    • Lead free reflow soldering available (260°C, 10sec, MSL3)
    • Series: SXB (Standard), SXE (Low ESR), SLE (Low Profile, Low ESR), SZE (Low Profile, Ultra Low ESR)

    Documents

    Datasheets:

    SXB,SXE,SLE,SZE Series2SXB150M-Rubycon-datasheet-16809382.pdf
