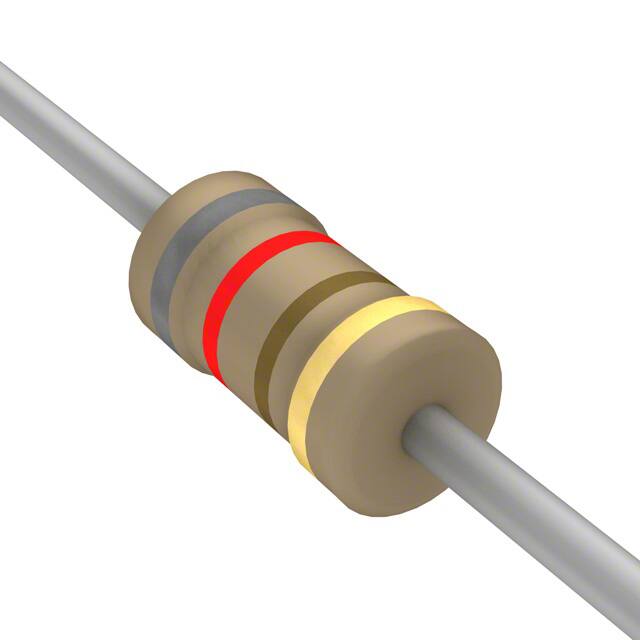

    CF18JA820R [Stackpole]

    CF18JA820R
    CF18JA820R

    Part No:

    CF18JA820R

    Category:

    Resistors

    Manufacturer:

    Stackpole

    Description:

    Axial, Through Hole FIXED RESISTOR, 820Ohm, 0.125W 1/8W, Carbon Film,

    RoHS Status:

    Product FAQ

    1. Is CF18JA820R available for RFQ?

    Yes. CF18JA820R by Stackpole is available for RFQ. Submit your required quantity and our team will confirm real-time stock, lead time, and volume pricing.

    2. Why is there no fixed price for CF18JA820R?

    Pricing for CF18JA820R can vary by order quantity, market availability, date code, packaging, and delivery destination. Request a quote to receive the latest volume pricing.

    3. What are the key specifications of CF18JA820R?

    CF18JA820R is a Stackpole Resistors with Packaging: Tape & Box (TB) and Moisture Sensitivity Level (MSL): 1 (Unlimited) and Temperature Coefficient: 0/ -400ppm/°C. Review the product details or submit an RFQ if you need confirmation before purchase.

    4. How fast can I get a quote for CF18JA820R?

    Our sales team usually responds within 24 hours after receiving your RFQ. The quote may include stock status, unit price, lead time, shipping options, and available alternatives.

    5. How soon can CF18JA820R be shipped?

    If stock is confirmed, in-stock parts can usually ship within 1–2 business days. Final lead time depends on quantity, stock source, and delivery destination.

    6. Can you suggest alternatives to CF18JA820R?

    Yes. If CF18JA820R is unavailable, obsolete, or does not meet your required lead time, we can help check similar Stackpole Resistors parts or compatible alternatives.

    RFQ

    Part Number:

    CF18JA820R

    Manufacturer:

    Stackpole

    Looking for Pricing? Contact us for volume pricing.

    IMPORTANT NOTICE

    Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.

    Featured Product

    Datasheet:

    Stock Status:

    Available for RFQ

    Pricing:

    Request Volume Pricing

    Quote Response:

    Within 24 Hours

    Shipping:

    In-stock parts ship in 1–2 business days

    Specification

    Type
    Parameter
    Factory Lead Time
    20 Weeks
    Contact Plating
    Tin
    Mount
    Axial, Through Hole
    Package / Case
    Axial
    Terminal Shape
    WIRE
    Operating Temperature
    -55°C~155°C
    Packaging
    Tape & Box (TB)
    Series
    CF
    Published
    2009
    Size / Dimension
    0.067Diax0.130L 1.70mmx3.30mm
    Tolerance
    ±5%
    JESD-609 Code
    e3
    Feature
    Flame Retardant Coating, Safety
    Pbfree Code
    yes
    Part Status
    Active
    Moisture Sensitivity Level (MSL)
    1 (Unlimited)
    Number of Terminations
    2
    ECCN Code
    EAR99
    Temperature Coefficient
    0/ -400ppm/°C
    Resistance
    820Ohm
    Composition
    Carbon Film
    Power (Watts)
    0.125W 1/8W
    HTS Code
    8533.10.00.65
    Power Rating
    125mW
    Packing Method
    AMMO PACK
    Max Power Dissipation
    125mW
    Construction
    Tubular
    Resistor Type
    FIXED RESISTOR
    Diameter
    1.7mm
    Radiation Hardening
    No
    RoHS Status
    RoHS Compliant
    Lead Free
    Lead Free
