    1. Home/
    2. All Categories/
    3. Passive Components/
    4. Resistors/
    5. CSSH2728FT20L0 Stackpole

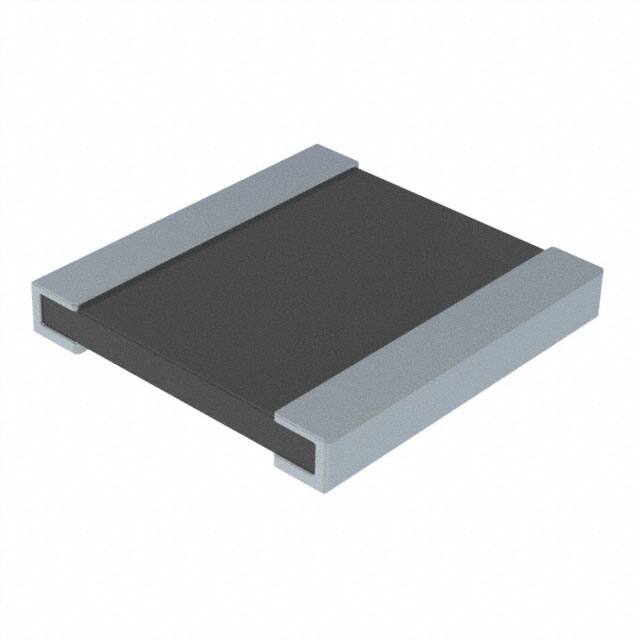

    CSSH2728FT20L0 [Stackpole]

    CSSH2728FT20L0
    CSSH2728FT20L0

    Part No:

    CSSH2728FT20L0

    Category:

    Resistors

    Manufacturer:

    Stackpole

    Description:

    FIXED RESISTOR CSSH Series, Metal Element, 20mOhm, ±1%, -55°C~225°C

    RoHS Status:

    Product FAQ

    1. Is CSSH2728FT20L0 available for RFQ?

    Yes. CSSH2728FT20L0 by Stackpole is available for RFQ. Submit your required quantity and our team will confirm real-time stock, lead time, and volume pricing.

    2. Why is there no fixed price for CSSH2728FT20L0?

    Pricing for CSSH2728FT20L0 can vary by order quantity, market availability, date code, packaging, and delivery destination. Request a quote to receive the latest volume pricing.

    3. What are the key specifications of CSSH2728FT20L0?

    CSSH2728FT20L0 is a Stackpole Resistors with Packaging: Tape & Reel (TR) and Moisture Sensitivity Level (MSL): 1 (Unlimited) and Rated Power Dissipation (P): 4W. Review the product details or submit an RFQ if you need confirmation before purchase.

    4. How fast can I get a quote for CSSH2728FT20L0?

    Our sales team usually responds within 24 hours after receiving your RFQ. The quote may include stock status, unit price, lead time, shipping options, and available alternatives.

    5. How soon can CSSH2728FT20L0 be shipped?

    If stock is confirmed, in-stock parts can usually ship within 1–2 business days. Final lead time depends on quantity, stock source, and delivery destination.

    6. Can you suggest alternatives to CSSH2728FT20L0?

    Yes. If CSSH2728FT20L0 is unavailable, obsolete, or does not meet your required lead time, we can help check similar Stackpole Resistors parts or compatible alternatives.

    RFQ

    Part Number:

    CSSH2728FT20L0

    Manufacturer:

    Stackpole

    Looking for Pricing? Contact us for volume pricing.

    IMPORTANT NOTICE

    Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.

    Featured Product

    Datasheet:

    Stock Status:

    Available for RFQ

    Pricing:

    Request Volume Pricing

    Quote Response:

    Within 24 Hours

    Shipping:

    In-stock parts ship in 1–2 business days

    Specification

    Type
    Parameter
    Factory Lead Time
    18 Weeks
    Contact Plating
    Tin
    Mount
    Surface Mount
    Package / Case
    Wide 2827 (7067 Metric), 2728
    Terminal Shape
    WRAPAROUND
    Operating Temperature
    -55°C~225°C
    Packaging
    Tape & Reel (TR)
    Series
    CSSH
    Published
    2010
    Size / Dimension
    0.264Lx0.283W 6.71mmx7.19mm
    Tolerance
    ±1%
    JESD-609 Code
    e3
    Feature
    Automotive AEC-Q200, Current Sense
    Pbfree Code
    yes
    Part Status
    Active
    Moisture Sensitivity Level (MSL)
    1 (Unlimited)
    Number of Terminations
    2
    ECCN Code
    EAR99
    Temperature Coefficient
    ±15ppm/°C
    Resistance
    20mOhm
    Composition
    Metal Element
    Additional Feature
    ULTRA PRECISION
    Power Rating
    4W
    Packing Method
    TR, Plastic, 7 Inch
    Max Power Dissipation
    4W
    Technology
    METAL ALLOY
    Construction
    Rectangular
    Resistor Type
    FIXED RESISTOR
    Case Code (Metric)
    7067
    Rated Power Dissipation (P)
    4W
    Case Code (Imperial)
    2827
    Height
    1.2446mm
    Height Seated (Max)
    0.055 1.39mm
    Radiation Hardening
    No
    RoHS Status
    RoHS Compliant
    Ratings
    AEC-Q200

    Products Detail

    Description:
    Stackpole Electronics Chip Resistor - Surface Mount CSSH2728FT20L0 is a molded SMD plastic T/R resistor with a metal alloy 2728 construction. It has a resistance of 0.02 Ohms, a tolerance of 1%, a power rating of 4W, and a temperature coefficient of ±15ppm/°C.

    Features:
    - Metal alloy 2728 construction
    - Resistance of 0.02 Ohms
    - Tolerance of 1%
    - Power rating of 4W
    - Temperature coefficient of ±15ppm/°C
    - Molded SMD plastic T/R

    Applications:
    Stackpole Electronics Chip Resistor - Surface Mount CSSH2728FT20L0 is suitable for use in a variety of applications, including power supplies, motor control, and audio/video equipment. It is also suitable for use in automotive, industrial, and consumer electronics.

    Documents

    Datasheets:

    CSS(H) SeriesResistor Packaging Spec

    Environmental Information:

    Stackpole RoHS3 Series List

    PCN Part Number:

    Global Part Number 9/Aug/2010
