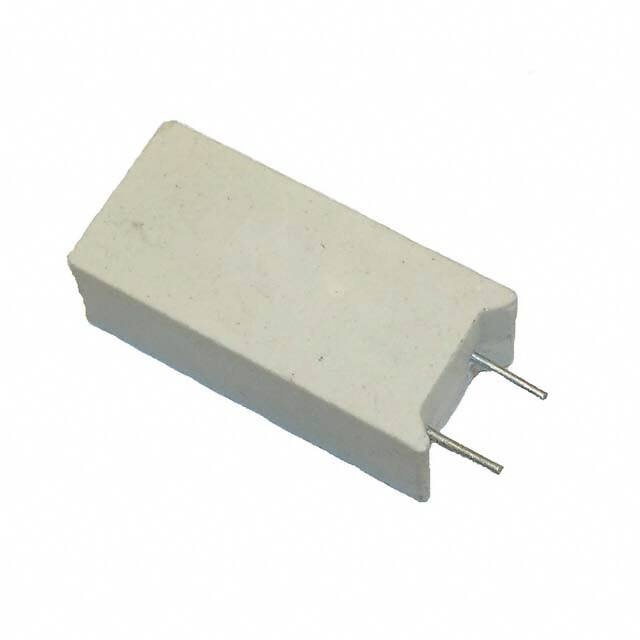

    VM7JBR680 [Stackpole]

    VM7JBR680
    VM7JBR680

    Part No:

    VM7JBR680

    Category:

    Resistors

    Manufacturer:

    Stackpole

    Description:

    Radial, Through Hole FIXED RESISTOR, 680mOhm, Wirewound,

    RoHS Status:

    Product FAQ

    1. Is VM7JBR680 available for RFQ?

    Yes. VM7JBR680 by Stackpole is available for RFQ. Submit your required quantity and our team will confirm real-time stock, lead time, and volume pricing.

    2. Why is there no fixed price for VM7JBR680?

    Pricing for VM7JBR680 can vary by order quantity, market availability, date code, packaging, and delivery destination. Request a quote to receive the latest volume pricing.

    3. What are the key specifications of VM7JBR680?

    VM7JBR680 is a Stackpole Resistors with Packaging: Bulk and Moisture Sensitivity Level (MSL): 1 (Unlimited) and Rated Power Dissipation (P): 7W. Review the product details or submit an RFQ if you need confirmation before purchase.

    4. How fast can I get a quote for VM7JBR680?

    Our sales team usually responds within 24 hours after receiving your RFQ. The quote may include stock status, unit price, lead time, shipping options, and available alternatives.

    5. How soon can VM7JBR680 be shipped?

    If stock is confirmed, in-stock parts can usually ship within 1–2 business days. Final lead time depends on quantity, stock source, and delivery destination.

    6. Can you suggest alternatives to VM7JBR680?

    Yes. If VM7JBR680 is unavailable, obsolete, or does not meet your required lead time, we can help check similar Stackpole Resistors parts or compatible alternatives.

    RFQ

    Part Number:

    VM7JBR680

    Manufacturer:

    Stackpole

    Looking for Pricing? Contact us for volume pricing.

    IMPORTANT NOTICE

    Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.

    Featured Product

    Datasheet:

    Stock Status:

    Available for RFQ

    Pricing:

    Request Volume Pricing

    Quote Response:

    Within 24 Hours

    Shipping:

    In-stock parts ship in 1–2 business days

    Specification

    Type
    Parameter
    Factory Lead Time
    20 Weeks
    Contact Plating
    Tin
    Mount
    Radial, Through Hole
    Package / Case
    Radial
    Operating Temperature
    -55°C~250°C
    Packaging
    Bulk
    Series
    VM
    Size / Dimension
    0.512Lx0.374W 13.00mmx9.50mm
    Tolerance
    ±5%
    JESD-609 Code
    e3
    Feature
    Flame Proof, Moisture Resistant, Safety
    Pbfree Code
    yes
    Part Status
    Active
    Moisture Sensitivity Level (MSL)
    1 (Unlimited)
    Number of Terminations
    2
    ECCN Code
    EAR99
    Temperature Coefficient
    ±800ppm/°C
    Resistance
    680mOhm
    Composition
    Wirewound
    Power Rating
    7W
    Max Power Dissipation
    7W
    Technology
    WIRE WOUND
    Construction
    Rectangular
    Resistor Type
    FIXED RESISTOR
    Rated Power Dissipation (P)
    7W
    Lead Length
    3.5mm
    Working Voltage
    500V
    Lead Spacing
    5mm
    Lead Diameter
    0.8 mm
    Height
    40.4876mm
    Height Seated (Max)
    1.594 40.50mm
    Radiation Hardening
    No
    RoHS Status
    RoHS Compliant

    Documents

    Datasheets:

    VM, MVM SeriesResistor Packaging Spec

    Environmental Information:

    Stackpole RoHS3 Series List

    PCN Part Number:

    Global Part Number 9/Aug/2010
