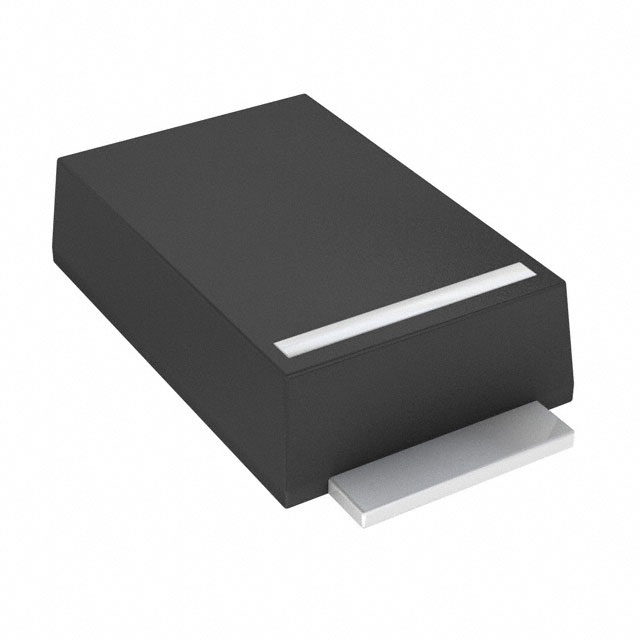

STPST5H100AF [STMicroelectronics]

Part No:

STPST5H100AF

Name: STPST5H100AF
Brand: STMicroelectronics
SKU: STPST5H100AF

Category:Diodes & Rectifiers

Manufacturer:STMicroelectronics

Description:75A 100V 680mV@5A 5A SOD-128FLAT Single Diodes ROHS

Package:-

RoHS Status:

Datasheet:

Production Status:

In Stock Status:

Specification

Type

Parameter

Package

SOD-128FLAT

Reverse Leakage Current (Ir)

11.5uA@100V

Non-Repetitive Peak Forward Surge Current

75A

Voltage - DC Reverse (Vr) (Max)

100V

Voltage - Forward(Vf@If)

680mV@5A

Current - Rectified

CNHTS

8541100000

USHTS

8541100040

TARIC

8541100000

CAHTS

8541100090

BRHTS

85411011

INHTS

85411000

MXHTS

8541.10.01

Products Detail

This 5 A, 100 V rectifier is based on ST trench technology that achieves the best-in-class VF/IR trade-off for a given silicon surface.

Integrated in flat and space-saving packages, this STPST5H100 trench rectifier is intended to be used in high frequency miniature switched mode power supplies. It is also an ideal candidate for auxiliary power supply in telecom, server, or smart metering. ST trench rectifiers are adapted to freewheeling, OR-ring or reverse polarity protection applications, and can be the perfect companion device to our transistors, drivers, or ST VIPer products.

Key features

High junction temperature capability
Low forward voltage drop
Low recovery charges
Reduces conduction, reverse and switching losses
Avalanche tested
Flat packages
ECOPACK2 compliant

Key Features

No key features available

Application scenarios

No application scenarios available

Documents

Data sheet:

Data sheet

Material Declaration:

Material Declaration
