TS9511IYLT [STMicroelectronics]

TS9511IYLT Overview

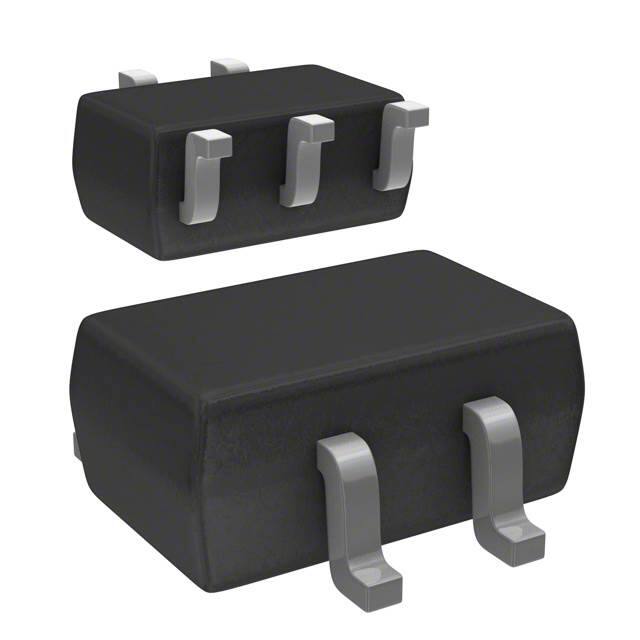

There is a SC-74A, SOT-753 case in which the instrumentation amplifier is packaged. Buffer amps of this type are called General Purpose-types. A Tape & Reel (TR) case is used to deliver the buffer op amp. The number of terminations is approaching the 5 mark. The total number of pins on linear amplifier is 5. The linear amplifier should be run at 3V at all times, so please keep that in mind when using it. In order to be more specific, this instrumentation amplifier is one of the types of Operational Amplifier devices. 5 pins are included on the operational amplifiers. As far as the input offset voltage is concerned, linear amplifier rates at 800μV. For this electronic part, it is recommended that you mount it with type Surface Mount. It is important to note that this linear amplifier works well at a temperature of -40°C~125°C when it comes to operating temperatureIt is possible to operate this buffer amplifier from a supply current of 950μA . There should be no change in the voltage gain. A linear amplifier like this has 1 circuits on it. A benefit of this op amp ic is that it outputs Rail-to-Rail signals, which is one of the many advantages it has to offer. For the packing of the instrumentation amplifier, TAPE AND REEL is adopted. The Automotive, AEC-Q100 represents the op amp's series number.

TS9511IYLT Features

5 Pins
supply voltage of 3V
86dB voltage gain
Output Type: Rail-to-Rail

TS9511IYLT Applications

There are a lot of STMicroelectronics
TS9511IYLT Instrumentational OP Amps applications.

• Subtraction operation circuits
• single/dual op amp sum and difference circuits
• Integrator circuits
• Differentiator circuits
• Logarithmic operation circuits
• Exponential operation circuits
• Multiplication circuits
• Division circuits
• Precision measurement
• Power control
