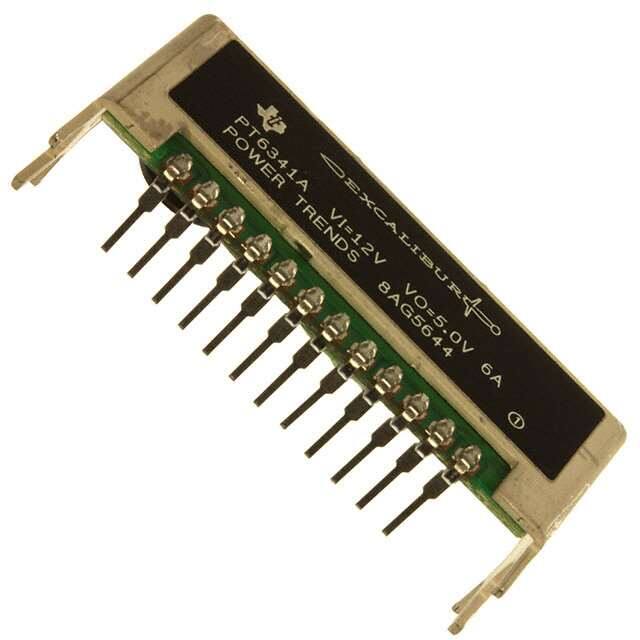

PT6341A [Rochester]

Name: PT6341A
Brand: Rochester
SKU: PT6341A
Availability: InStock

Part No:

PT6341A

Category:

DC/DC Converters

Manufacturer:

Rochester

Description:

The PT6340 Excalibur™ power modules are a series of high performance Integrated Switching Regulators (ISRs), housed in a thermally efficient solderable copper case.

Datasheet:

Stock Status:

Available for RFQ

Pricing:

Request Volume Pricing

Quote Response:

Within 24 Hours

Shipping:

In-stock parts ship in 1–2 business days

Specification

Type

Parameter

Efficiency

90%

External Input Capacitance

100µF

External Output Capacitance

330µF

Flammability

UL 94V-0

Input Voltage Range

10.8 VDC ~ 13.2 VDC

Mean Time Between Failures (MTBF)

8.8 106 Hrs

Mechanical Shock

500 G's

Mechanical Vibration

20 G's

Operating Temperature

-40°C ~ +85°C

Output Current

6A

Output Voltage Adjustable

1.1V ~ 5.5V

Package Case

Solderable Copper Case

Pin Configuration

Vertical (N/EPH), Horizontal (A/EPJ), SMD (C/EPK)

Storage Temperature

-40°C ~ +125°C

Switching Frequency

300kHz ~ 400kHz

Weight

23 grams

Products Detail

The PT6340 series are 6A output current, 12V input adjustable Integrated Switching Regulators (ISRs). They feature 90% efficiency, adjustable output voltage, standby function, short circuit protection, small footprint (0.61 in²), and solderable copper case. Designed for powering DSPs and microprocessors from a 12V input bus, they offer standard output voltages from 5VDC to 1.2VDC. The series includes external output voltage adjustment, an On/Off inhibit function, and requires external input (100µF) and output (330µF) capacitors for proper operation. Both through-hole and surface mount pin configurations are available.

Key Features

6A Output Current, Input Voltage Range: 10.8 V to 13.2 V, 90% Efficiency, Adjustable Output Voltage, Standby Function, Short Circuit Protection, Small Footprint (0.61 in²), Solderable Copper Case, 8.8 106 Hours MTBF

Application scenarios

Industrial control
consumer electronics
motor control
power management
DSP and microprocessor powering

Documents

Datasheets:

PT6340 Series PT6341A-Texas-Instruments-datasheet-10253481.pdf PT6341A-Texas-Instruments-datasheet-11445.pdf

Product FAQ

1. Is PT6341A available for RFQ?

Yes. PT6341A by Rochester is available for RFQ. Submit your required quantity and our team will confirm real-time stock, lead time, and volume pricing.

2. Why is there no fixed price for PT6341A?

Pricing for PT6341A can vary by order quantity, market availability, date code, packaging, and delivery destination. Request a quote to receive the latest volume pricing.

3. What are the key specifications of PT6341A?

PT6341A is a Rochester DC/DC Converters with Mean Time Between Failures (MTBF): 8.8 106 Hrs and External Output Capacitance: 330µF. Review the product details or submit an RFQ if you need confirmation before purchase.

4. How fast can I get a quote for PT6341A?

Our sales team usually responds within 24 hours after receiving your RFQ. The quote may include stock status, unit price, lead time, shipping options, and available alternatives.

5. How soon can PT6341A be shipped?

If stock is confirmed, in-stock parts can usually ship within 1–2 business days. Final lead time depends on quantity, stock source, and delivery destination.

6. Can you suggest alternatives to PT6341A?

Yes. If PT6341A is unavailable, obsolete, or does not meet your required lead time, we can help check similar Rochester DC/DC Converters parts or compatible alternatives.
