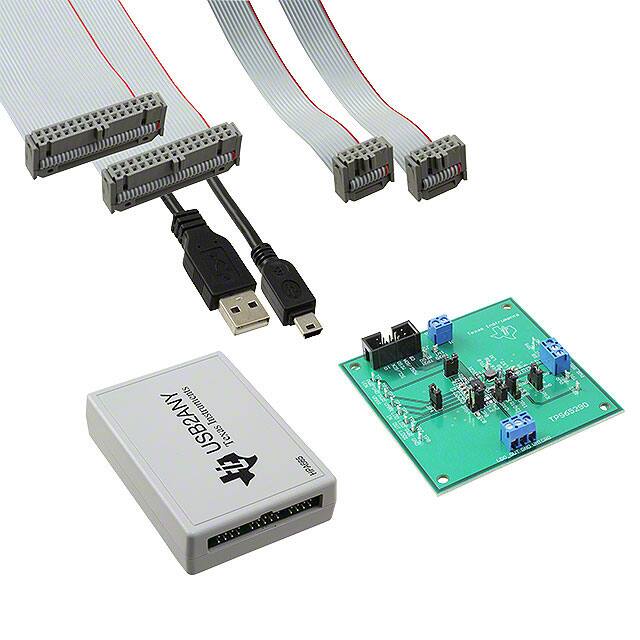

    TPS65290BMEVM [Texas Instruments]

    TPS65290BMEVM
    TPS65290BMEVM

    Part No:

    TPS65290BMEVM

    Category:

    Other Modules

    Manufacturer:

    Texas Instruments

    Description:

    TPS65290 is a PMIC designed to operate in applications dependent on efficient power management over a wide range of system load conditions ranging from fractions of a microamp to a few hundred miliamps.

    Datasheet:

    Product FAQ

    1. Is TPS65290BMEVM available for RFQ?

    Yes. TPS65290BMEVM by Texas Instruments is available for RFQ. Submit your required quantity and our team will confirm real-time stock, lead time, and volume pricing.

    2. Why is there no fixed price for TPS65290BMEVM?

    Pricing for TPS65290BMEVM can vary by order quantity, market availability, date code, packaging, and delivery destination. Request a quote to receive the latest volume pricing.

    3. What are the key specifications of TPS65290BMEVM?

    TPS65290BMEVM is a Texas Instruments Other Modules with Input Voltage Boost Converter Max: 5V and Input Voltage Boost Converter Min: 1.8V. Review the product details or submit an RFQ if you need confirmation before purchase.

    4. How fast can I get a quote for TPS65290BMEVM?

    Our sales team usually responds within 24 hours after receiving your RFQ. The quote may include stock status, unit price, lead time, shipping options, and available alternatives.

    5. How soon can TPS65290BMEVM be shipped?

    If stock is confirmed, in-stock parts can usually ship within 1–2 business days. Final lead time depends on quantity, stock source, and delivery destination.

    6. Can you suggest alternatives to TPS65290BMEVM?

    Yes. If TPS65290BMEVM is unavailable, obsolete, or does not meet your required lead time, we can help check similar Texas Instruments Other Modules parts or compatible alternatives.

    RFQ

    Part Number:

    TPS65290BMEVM

    Manufacturer:

    Texas Instruments

    Looking for Pricing? Contact us for volume pricing.

    IMPORTANT NOTICE

    Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.

    Featured Product

    Stock Status:

    Available for RFQ

    Pricing:

    Request Volume Pricing

    Quote Response:

    Within 24 Hours

    Shipping:

    In-stock parts ship in 1–2 business days

    Specification

    Type
    Parameter
    Junction Temperature
    -40°C ~ 125°C
    Supply Voltage
    2.2V ~ 5V
    Operating Temperature
    -40°C ~ 85°C
    Package
    24-Pin RHF (QFN)
    Buck Boost Converter Current
    500mA
    Input Voltage Boost Converter Max
    5V
    Input Voltage Boost Converter Min
    1.8V
    Input Voltage Ldo Max
    5V
    Input Voltage Ldo Min
    3V
    Ldo Current
    150mA
    Storage Temperature
    -55°C ~ 150°C
    TPS65290BMRHFR Packing
    reel of 3000
    TPS65290BMRHFT Packing
    reel of 250
    TPS65290LMRHFR Packing
    reel of 3000
    TPS65290LMRHFT Packing
    reel of 250
    TPS65290ZBRHFR Packing
    reel of 3000
    TPS65290ZBRHFT Packing
    reel of 250

    Products Detail

    The TPS65290 is a low quiescent current, multi-mode PMIC for battery powered and energy harvesting applications. It operates over a wide 2.2-V to 5-V input-voltage range and incorporates a very low quiescent current always-on power supply, a 500-mA buck/boost converter, a 150-mA low dropout regulator and 8 power distribution switches. The always-on supply features three different factory selectable options: 30mA buck converter with 300-nA quiescent current, 10-mA LDO with 400-nA quiescent current, and 10-mA Zero IDDQ drop with 100-nA quiescent current. The buck-boost converter employs PFM/PWM operation with forced PWM option for maximum overall efficiency. The device includes factory-selectable SPI/I2C interfaces and integrates a programmable input voltage monitor for connection and disconnection of power blocks without master processor intervention.

    Key Features

    • Operating Input Voltage Range: 2.2V to 5V, 500-mA Buck-Boost Converter, 150-mA LDO, Stand-Alone or Serial Bus (SPI or I2C) Controlled, PFM/PWM Operation With Forced PWM Option, Factory Selectable SPI/I2C Interface, -40°C to 85°C Ambient Temperature Range, 24-Pin RHF (QFN) Package, Two Power Distribution Switches Powered from Buck-Boost Output, One Power Distribution Switch Powered from Maximum of Buck-Boost or Battery Input, Two Power Distribution Switches Powered from LDO Output, One Power Switch Powered from Battery Input, One Power Switch to Connect BB Output to LDO Output and Improve System Efficiency, Automatic Power Max Function Between Battery Supply and Buck-Boost, Low Power Always-On Bias Supply for Microcontroller Sleep Mode with Three Factory-Selectable Options

    Application scenarios

    • Low Power
    • Energy Harvesting Systems
    • Battery Powered Applications

    Documents

    Datasheets:

    TPS65290 Datasheet
