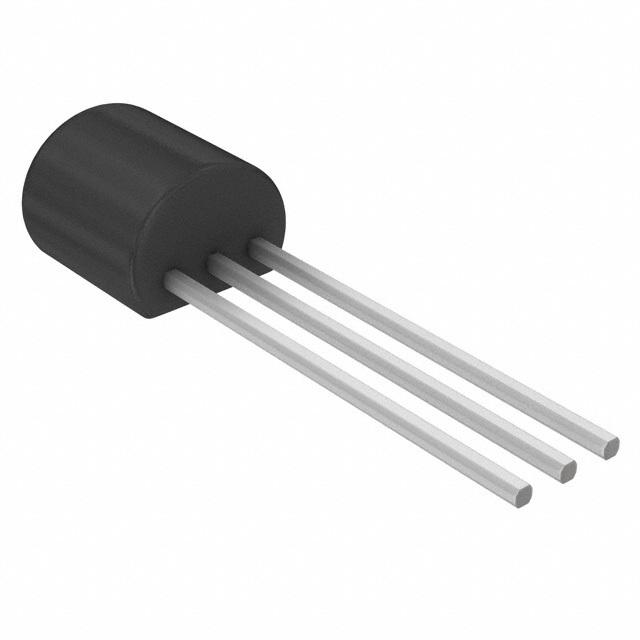

2N3903 [Unknown]

2N3903 Overview

With a collector emitter saturation voltage of 300mV, it offers maximum design flexibility.In order to achieve high efficiency, the continuous collector voltage should be kept at 200mA.If the emitter base voltage is kept at 6V, a high level of efficiency can be achieved.A transition frequency of 250MHz is present in the part.Collector current can be as low as 50nA volts at its maximum.

2N3903 Features

a collector emitter saturation voltage of 300mV
the emitter base voltage is kept at 6V
a transition frequency of 250MHz

2N3903 Applications

There are a lot of Central Semiconductor
2N3903 applications of single BJT transistors.

• Inverter
• Interface
• Driver
• Muting
