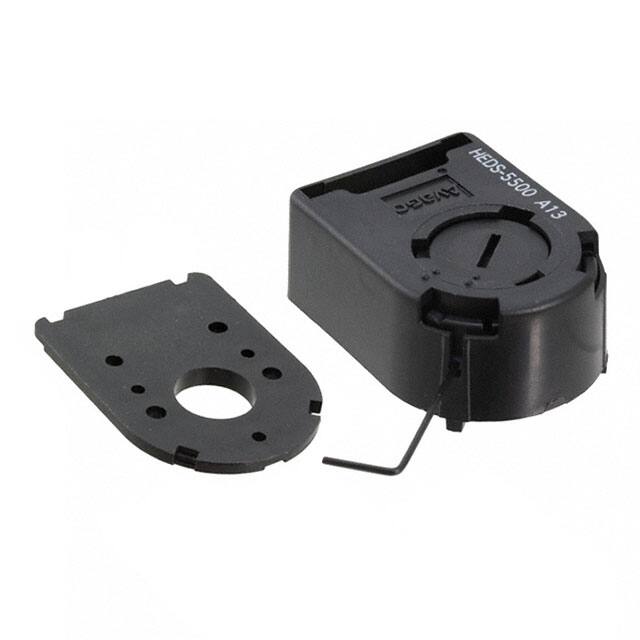

    HEDS-5500#A13 [Broadcom]

    HEDS-5500#A13
    HEDS-5500#A13

    Part No:

    HEDS-5500#A13

    Category:

    Sensor Hardware & Accessories

    Manufacturer:

    Broadcom

    Description:

    High performance, low cost, two and three channel optical incremental encoders.

    Datasheet:

    Stock Status:

    Available for RFQ

    Pricing:

    Request Volume Pricing

    Quote Response:

    Within 24 Hours

    Shipping:

    In-stock parts ship in 1–2 business days

    Specification

    Type
    Parameter
    Count Frequency
    100kHz
    HEDM-5500 Operating Temperature Max
    70°C
    HEDM-5500 Operating Temperature Min
    -40°C
    HEDM-5540 Operating Temperature Max
    85°C
    HEDM-5540 Operating Temperature Min
    -40°C
    HEDM-5600 Operating Temperature Max
    70°C
    HEDM-5600 Operating Temperature Min
    -40°C
    HEDM-5640 Operating Temperature Max
    85°C
    HEDM-5640 Operating Temperature Min
    -40°C
    HEDS-5500 Operating Temperature Max
    100°C

    Products Detail

    The HEDS and HEDM series are optical incremental encoders designed for high reliability, high resolution, and easy assembly. They feature a lensed LED source, integrated detector circuitry, and a codewheel for motion detection. Outputs include two quadrature channels with optional index pulse for three-channel versions. These encoders are low cost and suitable for various applications.

    Key Features

    • Two channel quadrature output with optional index pulse
    • Quick and easy assembly
    • No signal adjustment required
    • External mounting ears available
    • Low cost
    • Resolutions up to 1024 counts per revolution
    • Small size –40°C to 100°C operating temperature
    • TTL compatible
    • Single 5 V supply

    Application scenarios

    • Printers
    • plotters
    • tape drives
    • positioning tables
    • automatic handlers.

    Documents

    Datasheets:

    HEDS-5500%23A13-Broadcom-datasheet-37142605.pdf
