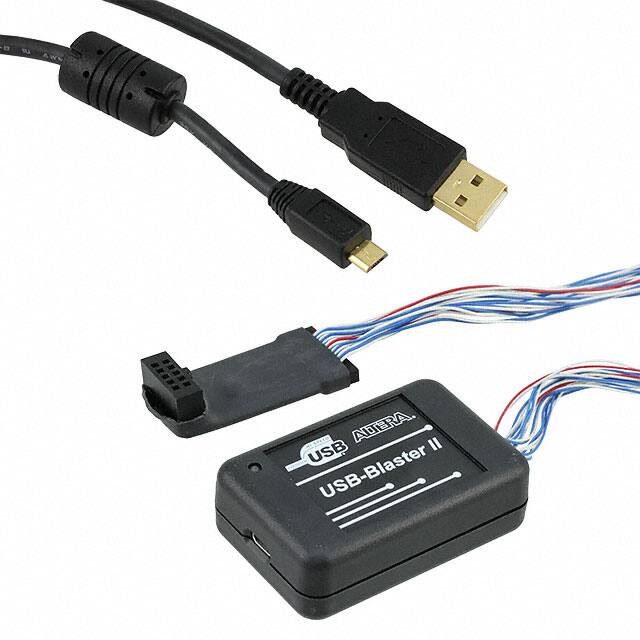

PL-USB2-BLASTER [INTEL]

PL-USB2-BLASTER Description

The PL-USB2-BLASTER is a USB-Blaster download cable. This cable interfaces a USB port on a host computer to FPGA mounted on a printed circuit board. The Intel® FPGA Download Cable connects an FPGA placed on a printed circuit board to a USB port on a host computer. The connection transmits configuration information from the host computer to an FPGA's standard 10-pin interface. The Intel FPGA Download Cable can be used to program data into a system during production or to iteratively download configuration data to a system during prototyping.

PL-USB2-BLASTER Features

• It can perform ISP of EPC2, EPC4, EPC8, EPC16, EPCS1, EPCS4, EPCS16, EPCS64 and EPCS128 devices

• Perform SignalTap II logic analysis

• Supports the joint test action group (JTAG), passive serial programming and active serial modes

• Requires 5.0V from the USB cable and between 1.5V and 5.0V from the target circuit board

PL-USB2-BLASTER Applications

• Communications & Networking

• Embedded Design & Development
