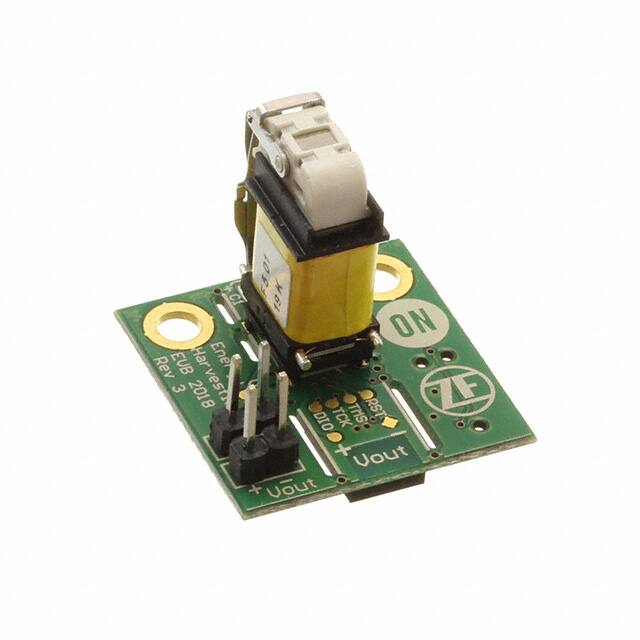

    BLE-SWITCH001-GEVB [Onsemi]

    BLE-SWITCH001-GEVB
    BLE-SWITCH001-GEVB

    Part No:

    BLE-SWITCH001-GEVB

    Category:

    Other Modules

    Manufacturer:

    Onsemi

    Description:

    RSL10 System−In−Package (RSL10 SIP) is a complete solution that provides the easiest way to integrate the industry’s lowest power Bluetooth low energy technology into a wireless application.

    RoHS Status:

    Product FAQ

    1. Is BLE-SWITCH001-GEVB available for RFQ?

    Yes. BLE-SWITCH001-GEVB by Onsemi is available for RFQ. Submit your required quantity and our team will confirm real-time stock, lead time, and volume pricing.

    2. Why is there no fixed price for BLE-SWITCH001-GEVB?

    Pricing for BLE-SWITCH001-GEVB can vary by order quantity, market availability, date code, packaging, and delivery destination. Request a quote to receive the latest volume pricing.

    3. What are the key specifications of BLE-SWITCH001-GEVB?

    BLE-SWITCH001-GEVB is a Onsemi Other Modules with NCH-RSL10-101S51-ACG Operating Temperature Max: 85°C and NCH-RSL10-101S51-ACG Operating Temperature Min: -40°C. Review the product details or submit an RFQ if you need confirmation before purchase.

    4. How fast can I get a quote for BLE-SWITCH001-GEVB?

    Our sales team usually responds within 24 hours after receiving your RFQ. The quote may include stock status, unit price, lead time, shipping options, and available alternatives.

    5. How soon can BLE-SWITCH001-GEVB be shipped?

    If stock is confirmed, in-stock parts can usually ship within 1–2 business days. Final lead time depends on quantity, stock source, and delivery destination.

    6. Can you suggest alternatives to BLE-SWITCH001-GEVB?

    Yes. If BLE-SWITCH001-GEVB is unavailable, obsolete, or does not meet your required lead time, we can help check similar Onsemi Other Modules parts or compatible alternatives.

    RFQ

    Part Number:

    BLE-SWITCH001-GEVB

    Manufacturer:

    Onsemi

    Looking for Pricing? Contact us for volume pricing.

    IMPORTANT NOTICE

    Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.

    Featured Product

    Datasheet:

    Stock Status:

    Available for RFQ

    Pricing:

    Request Volume Pricing

    Quote Response:

    Within 24 Hours

    Shipping:

    In-stock parts ship in 1–2 business days

    Specification

    Type
    Parameter
    NCH-RSL10-101S51-ACG Active Current Rx 1.25V
    1.8mA
    NCH-RSL10-101S51-ACG Bluetooth Version
    5
    NCH-RSL10-101S51-ACG Clock Speed
    48MHz
    NCH-RSL10-101S51-ACG Data Memory
    88 kB
    NCH-RSL10-101S51-ACG Deep Sleep Current 1.25V
    50 nA
    NCH-RSL10-101S51-ACG Deep Sleep Current 3V
    25 nA
    NCH-RSL10-101S51-ACG Flash Memory
    384 kB
    NCH-RSL10-101S51-ACG Operating Temperature Max
    85°C
    NCH-RSL10-101S51-ACG Operating Temperature Min
    -40°C
    NCH-RSL10-101S51-ACG Package
    SIP51
    NCH-RSL10-101S51-ACG Packing
    Tape and reel
    NCH-RSL10-101S51-ACG Program Memory
    76 kB
    RoHS Status
    RoHS Compliant
    RoHS Status
    RoHS Compliant
    NCH-RSL10-101S51-ACG Supply Voltage Max
    3.3V
    NCH-RSL10-101S51-ACG Supply Voltage Min
    1.18V
    NCH-RSL10-101S51-ACG Tx Power Max
    0 dBm
    NCH-RSL10-101S51-ACG Tx Power Min
    -17 dBm

    Products Detail

    The RSL10 SIP features an on−board antenna, RSL10 radio SoC, and all necessary passive components in one package to help minimize overall system size. Already fully qualified to FCC, CE, and other regulatory standards; RSL10 SIP removes the need for additional antenna design considerations or RF certifications. It includes an Arm Cortex-M3 processor running at up to 48 MHz, 384 kB of Flash memory, 76 kB of program memory, and 88 kB of data memory. The device supports Bluetooth 5 features including LE 2-Mbit PHY (High Speed) and is fully certified for Bluetooth 5. It also supports FOTA (Firmware Over-The-Air) updates.

    Key Features

    • Fully Certified: SIP51 8x6, Bluetooth 5 CASE 127EY, QDID, Declaration ID, FCC, CE, IC, MIC, KCC
    • Industry’s Lowest Power: Peak Rx Current = 5.6 mA (1.25 V VBAT), Peak Rx Current = 3.0 mA (3 V VBAT), Peak Tx Current (0 dBm) = 8.9 mA (1.25 V VBAT), Peak Tx Current (0 dBm) = 4.6 mA (3 V VBAT)
    • Deep Sleep Current Consumption: 50 nA (1.25 V VBAT, IO wake-up), 300 nA (1.25 V VBAT, 8 kB RAM retention)
    • Current Consumption (3 V VBAT): 25 nA (IO wake-up), 100 nA (8 kB RAM retention)
    • EEMBC ULPMark Core Profile: 1090 (3 V), 1360 (2.1 V)
    • Advanced Wireless: Bluetooth 5 features (LE 2-Mbit PHY, backwards compatibility), FOTA support, Rx Sensitivity -93 dB, Transmitting Power -17 to 0 dBm, Range up to 100 Meters
    • Other Key Features: Arm Cortex-M3 Processor at up to 48 MHz, Supply Voltage Range 1.1-3.3 V, 384 kB Flash, 76 kB Program Memory, 88 kB Data Memory, LPDSP32 DSP core, Security: AES128, Deep Sleep Mode, Standby Mode, Multi-Protocol Support, Flexible Supply Voltage

    Documents

    Datasheets:

    RSL10 SIPEVBUM2596/D Eval Board Manual
