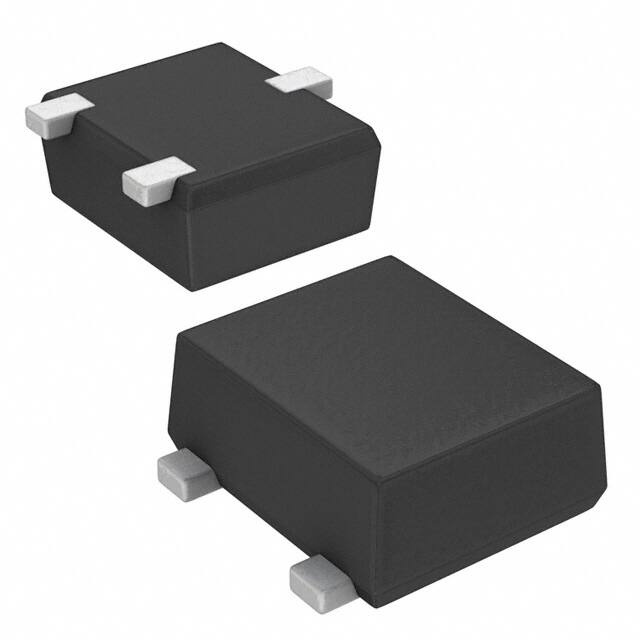

2SA1797T100P [ROHM]

2SA1797T100P Overview

As the DC current gain is the ratio of the collector current to the base current, for this device the DC current gain is 82 @ 500mA 2V.As a result of vce saturation, Ic reaches its maximum value (saturated), and vce saturation(Max) is 350mV @ 50mA, 1A.Single BJT transistor is possible to achieve a high level of efficiency by maintaining the emSingle BJT transistorter base voltage at -6V.Its current rating is -3A, which means that it can sustain a maximum current for an indefinite period of time without degrading too much.Parts of this part have transition frequencies of 200MHz.Single BJT transistor can take a breakdown input voltage of 50V volts.During maximum operation, collector current can be as low as 3A volts.

2SA1797T100P Features

the DC current gain for this device is 82 @ 500mA 2V
the vce saturation(Max) is 350mV @ 50mA, 1A
the emitter base voltage is kept at -6V
the current rating of this device is -3A
a transition frequency of 200MHz

2SA1797T100P Applications

There are a lot of ROHM Semiconductor
2SA1797T100P applications of single BJT transistors.

• Inverter
• Interface
• Driver
• Muting
