    TSC2020IYPT [STMicroelectronics]

    TSC2020IYPT
    TSC2020IYPT

    Part No:

    TSC2020IYPT

    Category:

    Current Sensors

    Manufacturer:

    STMicroelectronics

    Description:

    100 V, precision, bidirectional current sense amplifier

    Datasheet:

    Product FAQ

    1. Is TSC2020IYPT available for RFQ?

    Yes. TSC2020IYPT by STMicroelectronics is available for RFQ. Submit your required quantity and our team will confirm real-time stock, lead time, and volume pricing.

    2. Why is there no fixed price for TSC2020IYPT?

    Pricing for TSC2020IYPT can vary by order quantity, market availability, date code, packaging, and delivery destination. Request a quote to receive the latest volume pricing.

    3. What are the key specifications of TSC2020IYPT?

    TSC2020IYPT is a STMicroelectronics Current Sensors with Operating Temp Min Celsius: -40.0 and Operating Temp Max Celsius: 125.0. Review the product details or submit an RFQ if you need confirmation before purchase.

    4. How fast can I get a quote for TSC2020IYPT?

    Our sales team usually responds within 24 hours after receiving your RFQ. The quote may include stock status, unit price, lead time, shipping options, and available alternatives.

    5. How soon can TSC2020IYPT be shipped?

    If stock is confirmed, in-stock parts can usually ship within 1–2 business days. Final lead time depends on quantity, stock source, and delivery destination.

    6. Can you suggest alternatives to TSC2020IYPT?

    Yes. If TSC2020IYPT is unavailable, obsolete, or does not meet your required lead time, we can help check similar STMicroelectronics Current Sensors parts or compatible alternatives.

    RFQ

    Part Number:

    TSC2020IYPT

    Manufacturer:

    STMicroelectronics

    Looking for Pricing? Contact us for volume pricing.

    IMPORTANT NOTICE

    Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.

    Featured Product

    BEST SELL
    ATSAME70Q21B-CFN

    ATSAME70Q21B-CFN

    Microchip

    BEST SELL
    K4A4G085WF-BCTD

    K4A4G085WF-BCTD

    SAMSUNG

    BEST SELL
    K4RAH165VB-BIWM

    K4RAH165VB-BIWM

    SAMSUNG

    BEST SELL
    BQ25895RTWR

    BQ25895RTWR

    Texas Instruments

    BEST SELL
    FS32K118LFT0VLHT

    FS32K118LFT0VLHT

    NXP

    BEST SELL
    H5CG46MEBDX015N

    H5CG46MEBDX015N

    SK HYNIX

    BEST SELL
    MT29F4G08ABADAWP-IT:D

    MT29F4G08ABADAWP-IT:D

    Micron

    BEST SELL
    K4FBE3D4HM-THCL

    K4FBE3D4HM-THCL

    SAMSUNG

    BEST SELL
    MT48H32M16LFB4-6 IT:C

    MT48H32M16LFB4-6 IT:C

    Micron

    BEST SELL
    K4B4G1646E-BYK0

    K4B4G1646E-BYK0

    SAMSUNG

    Stock Status:

    Available for RFQ

    Pricing:

    Request Volume Pricing

    Quote Response:

    Within 24 Hours

    Shipping:

    In-stock parts ship in 1–2 business days

    Specification

    TypeParameter
    Supply Voltage Min Volt
    2.7
    Supply Voltage Max Volt
    5.5
    Operating Temp Min Celsius
    -40.0
    Operating Temp Max Celsius
    125.0
    ECCN US
    EAR99
    ECCN EU
    NEC
    Packing Type
    Tape And Reel
    RoHS Status
    Grade
    Automotive
    Package Name
    TSSOP-8L
    Supply Voltage Min Volt
    2.7
    Supply Voltage Max Volt
    5.5
    Operating Temp Min Celsius
    -40.0
    Operating Temp Max Celsius
    125.0
    ECCN US
    EAR99
    ECCN EU
    NEC
    Packing Type
    Tape And Reel
    RoHS Status
    Grade
    Automotive
    Package Name
    TSSOP-8L

    Products Detail

    TSC2020, TSC2021 and TSC2022 are a series of precision bidirectional current sense amplifier. They can sense current via a shunt resistor over a wide range of common-mode voltages, from -4 to +100 V, whatever the supply voltage is. It is able to sense very low drop voltages, minimizing measurement error.


    TSC2020, TSC2021 and TSC2022 are current sense amplifiers that may be used for various functions like precision current measurement, overcurrent protection, current monitoring, and feedback loops. These devices fully operate over the supply voltage range of 2.7 to 5.5 V, and over an ambient temperature range of -40 to 125 °C.

    Key features
    • Wide common-mode voltage: -4 to 100 V
    • High common-mode rejection CMR: 100 dB min.
    • Offset voltage: ±150 µV max.
    • Offset drift: 0.5 µV/°C max.
    • Enhanced PWM rejection
    • 2.7 to 5.5 V supply voltage
    • Internal fixed gain
      • TSC2020: 20 V/V
      • TSC2021: 50 V/V
      • TSC2022: 100 V/V
    • Gain error: 0.3% max.
    • Gain drift: 3.5 ppm/°C max.
    • SO8, MiniSO8 and TSSOP8 packages
    • AEC-Q100 qualified

    Documents

    Data sheet:

    Data sheet

    Material Declaration:

    Material Declaration
    Shipping & Warranty

    Fast Dispatch: Ships in 5-7 days(in-stock parts within 1-2 days)

    Unishop Global Export: 1-7 days, $40.00

    Guaranteed Delivery: Door-to-door in 30 days

    Compliant Worldwide Shipping: DHL, FedEx, SF, and UPS.

    Feature

    • 30-Day Guarantee
      30-Day Guarantee
    • Fasted Delivery
      Fasted Delivery
    • Hassle-Free Returns
      Hassle-Free Returns
    • Secure payment method
      Secure payment method

    Vivi Peng

    Sales Representative

    Ban Lv

    Sales Representative

    Lucy Lu

    Sales Representative

    Related Information
    Similar Products
    Related Products
    Related Categories
    Recently Viewed
    • Part Number
      Manufacturer
      Stock Status
      Pricing
      RoHS/Datasheet
    • TSC200IYDT
      STMicroelectronics
      Available for RFQ
      Request Volume Pricing
      -
    • TSC202IST
      STMicroelectronics
      Available for RFQ
      Request Volume Pricing
      -
    • TSC2010IST
      STMicroelectronics
      Available for RFQ
      Request Volume Pricing
    • TSC2010IYST
      STMicroelectronics
      Available for RFQ
      Request Volume Pricing
      -
    • TSC200IYST
      STMicroelectronics
      Available for RFQ
      Request Volume Pricing
      -
    • TSC2011IST
      STMicroelectronics
      Available for RFQ
      Request Volume Pricing
    • TSC103IYPT
      STMicroelectronics
      Available for RFQ
      Request Volume Pricing
      -
    • TSC210IYQT
      STMicroelectronics
      Available for RFQ
      Request Volume Pricing
      -
    • TSC2020IPT
      STMicroelectronics
      Available for RFQ
      Request Volume Pricing
      -
    • TSC201IYST
      STMicroelectronics
      Available for RFQ
      Request Volume Pricing
      -

    TSC211IYQT

    TSC211IYQT

    STMicroelectronics

    TSC210ICT

    TSC210ICT

    STMicroelectronics

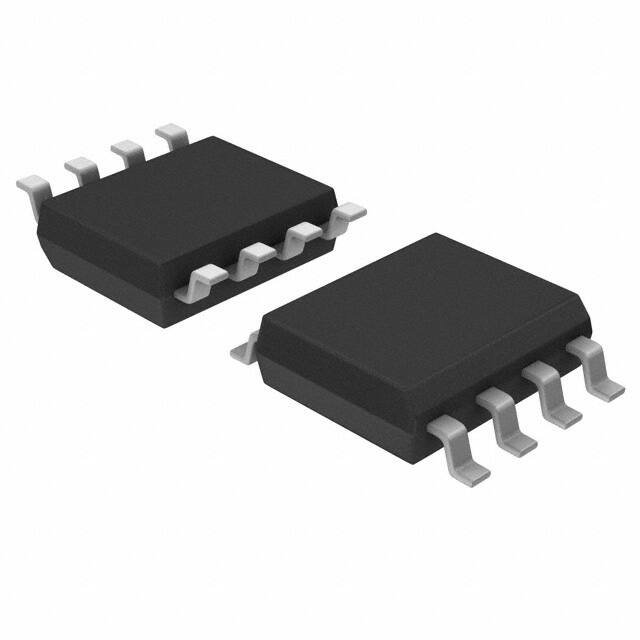

    TSC1031IYDT
