    OPB760N [Optek]

    OPB760N
    OPB760N

    Part No:

    OPB760N

    Category:

    Optical Sensors

    Manufacturer:

    Optek

    Description:

    Photologic® Reflective Object Sensor series with built-in hysteresis amplifier, available in multiple output configurations and mounting options.

    RoHS Status:

    Product FAQ

    1. Is OPB760N available for RFQ?

    Yes. OPB760N by Optek is available for RFQ. Submit your required quantity and our team will confirm real-time stock, lead time, and volume pricing.

    2. Why is there no fixed price for OPB760N?

    Pricing for OPB760N can vary by order quantity, market availability, date code, packaging, and delivery destination. Request a quote to receive the latest volume pricing.

    3. What are the key specifications of OPB760N?

    OPB760N is a Optek Optical Sensors with Output Photologic Power Dissipation: 200mW and Short Circuit Output Current Max: -100mA. Review the product details or submit an RFQ if you need confirmation before purchase.

    4. How fast can I get a quote for OPB760N?

    Our sales team usually responds within 24 hours after receiving your RFQ. The quote may include stock status, unit price, lead time, shipping options, and available alternatives.

    5. How soon can OPB760N be shipped?

    If stock is confirmed, in-stock parts can usually ship within 1–2 business days. Final lead time depends on quantity, stock source, and delivery destination.

    6. Can you suggest alternatives to OPB760N?

    Yes. If OPB760N is unavailable, obsolete, or does not meet your required lead time, we can help check similar Optek Optical Sensors parts or compatible alternatives.

    RFQ

    Part Number:

    OPB760N

    Manufacturer:

    Optek

    Looking for Pricing? Contact us for volume pricing.

    IMPORTANT NOTICE

    Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.

    Featured Product

    Datasheet:

    Stock Status:

    Available for RFQ

    Pricing:

    Request Volume Pricing

    Quote Response:

    Within 24 Hours

    Shipping:

    In-stock parts ship in 1–2 business days

    Specification

    Type
    Parameter
    Diode Forward Dc Current
    40mA
    Diode Reverse Dc Voltage
    3V
    Forward Voltage
    1.8V
    High Level Output Voltage Min
    2.4V
    Hysteresis Ratio Max
    2.0
    Hysteresis Ratio Min
    1.1
    Input Diode Power Dissipation
    100mW
    Lead Soldering Temperature
    260°C
    Led Peak Wavelength
    890 nm
    Led Threshold Current Max
    25mA
    Low Level Output Voltage Max
    0.4V
    Operating Temperature
    -40°C ~ +70°C
    Output Current
    100µA
    Output Photologic Power Dissipation
    200mW
    Output Voltage
    35V
    Reflection Distance Max
    0.220 inch
    Reflection Distance Min
    0.080 inch
    Reverse Current
    100µA
    RoHS Status
    RoHS Compliant
    RoHS Status
    RoHS Compliant
    Short Circuit Output Current Max
    -100mA
    Short Circuit Output Current Min
    -15mA
    Storage Temperature
    -40°C ~ +85°C
    Supply Current
    10mA
    Supply Voltage
    4.75V ~ 5.25V
    Supply Voltage Abs
    10V
    Total Device Power Dissipation
    300mW

    Products Detail

    The OPB760/761/762/763 and OPB770/771/772/773 series are reflective object sensors with Photologic® output. They offer TTL Totem-Pole or Open-Collector outputs, with inverter or buffer polarity. Mounting options include PCBoard mount (0.04" leads), remote mount with tabs, or 12" 26 AWG wires. All devices have a built-in hysteresis amplifier. Custom electrical, wire, and connector options are available.

    Key Features

    • Multiple mounting configurations
    • Four output configurations (TTL Totem-Pole, Open-Collector, Inv-Totem-Pole, Inv-Open Collector)
    • PCBoard mount with 0.040" leads (N and T series)
    • 12" 26 AWG wires (NZ and TZ series)
    • Built-in hysteresis amplifier
    • Custom options available

    Application scenarios

    • Non-contact Photologic® reflective object sensing
    • assembly line automation
    • machine automation
    • machine safety
    • end of travel sensor

    Documents

    Datasheets:

    OPB760-763(N,T)OPB770-773(NZ,TZ)

    PCN Design/Specification:

    OCB,OP,OPX Series 02/May/2014
    Shipping & Warranty

    Fast Dispatch: Ships in 5-7 days(in-stock parts within 1-2 days)

    Unishop Global Export: 1-7 days, $40.00

    Guaranteed Delivery: Door-to-door in 30 days

    Compliant Worldwide Shipping: DHL, FedEx, SF, and UPS.

    Feature

    • 30-Day Guarantee
      30-Day Guarantee
    • Fasted Delivery
      Fasted Delivery
    • Hassle-Free Returns
      Hassle-Free Returns
    • Secure payment method
      Secure payment method

    BEST SELL
    BQ27441DRZR-G1AG4

    BQ27441DRZR-G1AG4

    Texas Instruments

    BEST SELL
    ISO7721DR

    ISO7721DR

    Texas Instruments

    BEST SELL
    MT41K128M16JT-125 IT:KTR

    MT41K128M16JT-125 IT:KTR

    Unknown

    BEST SELL
    MTFC2GMDEA-0M WT A

    MTFC2GMDEA-0M WT A

    Micron

    BEST SELL
    CYBT-343026-EVAL

    CYBT-343026-EVAL

    Infineon

    BEST SELL
    TLP2361(TPL,E(T

    TLP2361(TPL,E(T

    TOSHIBA

    BEST SELL
    MPU-6000

    MPU-6000

    TDK

    BEST SELL
    MT25QU256ABA1EW7-0SIT

    MT25QU256ABA1EW7-0SIT

    Micron

    BEST SELL
    H9TQ64A8GTDCUR-KUM

    H9TQ64A8GTDCUR-KUM

    SK HYNIX

    BEST SELL
    IS43LQ32256A-062BLI

    IS43LQ32256A-062BLI

    ISSI

    Related Information
    • Part Number
      Manufacturer
      Stock Status
      Pricing
      RoHS/Datasheet
    • OPB741WZ
      Optek
      Available for RFQ
      Request Volume Pricing
    • OPB375N51
      Optek
      Available for RFQ
      Request Volume Pricing
    • OPB350L187
      Optek
      Available for RFQ
      Request Volume Pricing
      -
    • OPL560A
      Optek
      Available for RFQ
      Request Volume Pricing
    • OPB973N11
      Optek
      Available for RFQ
      Request Volume Pricing
    • OPB821S3Z
      Optek
      Available for RFQ
      Request Volume Pricing
      -
    • OPB696AZ
      Optek
      Available for RFQ
      Request Volume Pricing
    • OPB963N11
      Optek
      Available for RFQ
      Request Volume Pricing
    • OPL531-OCA
      Optek
      Available for RFQ
      Request Volume Pricing
    • OPB981T55Z
      Optek
      Available for RFQ
      Request Volume Pricing

    OPL583

    OPL583

    Optek

    OPB881T55Z

    OPB881T55Z

    Optek

    OPB380T55Z

    OPB380T55Z

    Optek

    OPS692

    OPS692

    Optek

    OPB963T55

    OPB963T55

    Optek

    OPB940W55Z

    OPB940W55Z

    Optek

    OPB703

    OPB703

    Optek

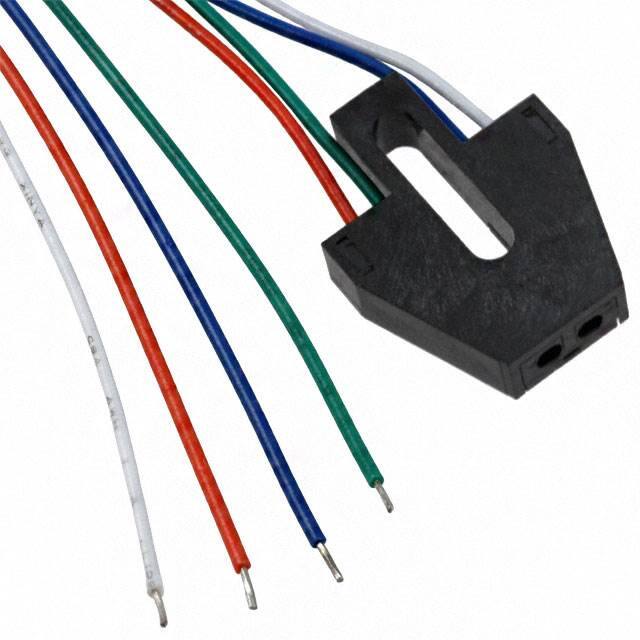

    OPB705WZ
