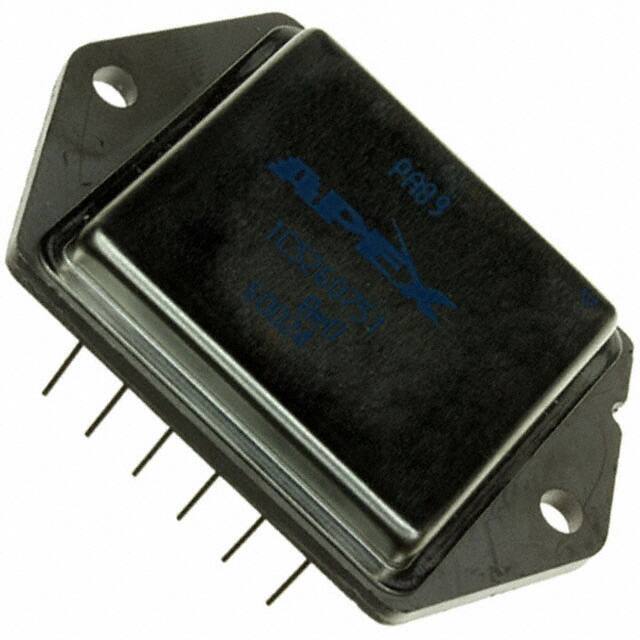

    PA89 [Apex Microtechnology]

    PA89
    PA89

    Part No:

    PA89

    Category:

    Amplifier ICs

    Manufacturer:

    Apex Microtechnology

    Description:

    The PA89 is an ultra high voltage, MOSFET operational amplifier designed for output currents up to 75 mA. Output voltages can swing over 1000V p-p.

    RoHS Status:

    Product FAQ

    1. Is PA89 available for RFQ?

    Yes. PA89 by Apex Microtechnology is available for RFQ. Submit your required quantity and our team will confirm real-time stock, lead time, and volume pricing.

    2. Why is there no fixed price for PA89?

    Pricing for PA89 can vary by order quantity, market availability, date code, packaging, and delivery destination. Request a quote to receive the latest volume pricing.

    3. What are the key specifications of PA89?

    PA89 is a Apex Microtechnology Amplifier ICs with Input Voltage Differential Max: ±25V and Continuous Output Current: 75mA. Review the product details or submit an RFQ if you need confirmation before purchase.

    4. How fast can I get a quote for PA89?

    Our sales team usually responds within 24 hours after receiving your RFQ. The quote may include stock status, unit price, lead time, shipping options, and available alternatives.

    5. How soon can PA89 be shipped?

    If stock is confirmed, in-stock parts can usually ship within 1–2 business days. Final lead time depends on quantity, stock source, and delivery destination.

    6. Can you suggest alternatives to PA89?

    Yes. If PA89 is unavailable, obsolete, or does not meet your required lead time, we can help check similar Apex Microtechnology Amplifier ICs parts or compatible alternatives.

    RFQ

    Part Number:

    PA89

    Manufacturer:

    Apex Microtechnology

    Looking for Pricing? Contact us for volume pricing.

    IMPORTANT NOTICE

    Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.

    Featured Product

    Datasheet:

    Stock Status:

    Available for RFQ

    Pricing:

    Request Volume Pricing

    Quote Response:

    Within 24 Hours

    Shipping:

    In-stock parts ship in 1–2 business days

    Specification

    Type
    Parameter
    Continuous Output Current
    75mA
    Input Voltage Differential Max
    ±25V
    Operating Temperature
    -55°C ~ +125°C
    Output Current
    100mA
    Package
    MO-127 High Voltage, Power Dip™
    Power Dissipation
    40W
    Quiescent Current
    4.8mA ~ 6.0mA
    RoHS Status
    RoHS Compliant
    Supply Voltage
    ±75V ~ ±600V

    Products Detail

    The PA89 is an ultra high voltage, MOSFET operational amplifier designed for output currents up to 75 mA with output voltages swinging over 1000V p-p. It features a safe operating area with no second breakdown limitations, high accuracy via cascode input circuit and 120dB open loop gain, and a wide supply range with excellent supply rejection. The device uses a hermetically sealed MO-127 package with Beryllia substrate for reliability and performance. External compensation provides flexibility, and the hermetic seal is tested to MIL-STD-883.

    Key Features

    • 1140V P-P Signal Output
    • Wide Supply Range — ±75V to ±600V
    • Programmable Current Limit
    • 75 mA Continuous Output Current
    • Hermetically Sealed Package
    • Input Protection

    Application scenarios

    • Piezoelectric Positioning
    • High Voltage Instrumentation
    • Electrostatic Deflection
    • Semiconductor Testing

    Documents

    Datasheets:

    PA89(A)
