The TSC240 is a high-precision current sense amplifier with enhanced PWM rejection. It can sense current via a shunt resistor over a wide range of common-mode voltages, from -4 to +100 V, regardless of the supply voltage. It is available with a preset gain of 20 V/V. Thanks to its high precision, it can sense very low drop voltages, minimizing measurement error.

The TSC240 is a current sense amplifier that can be used in various functions such as precision current measurement, overcurrent protection, current monitoring, and feedback loops. These devices fully operate over the broad supply voltage range of 2.7 to 5.5 V and over the industrial temperature range of -40 to +125 °C.

• Enhanced PWM rejection
• Excellent CMRR: 132 dB DC CMRR
• Wide common-mode range: –4 V to 100 V
• Accuracy:
  • Gain: Gain error: 0.20% (maximum) Gain drift: 2.5 ppm/°C (maximum)
  • Offset: Offset voltage: ±20 μV (maximum) Offset drift: 150 nV/°C (maximum)
• Available gains: 20 V/V
• Quiescent current: 2.4 mA (maximum)

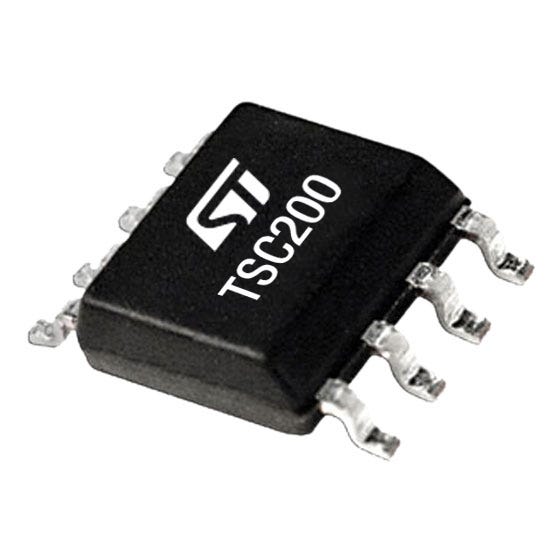

• SO8 and TSSOP8 packages
