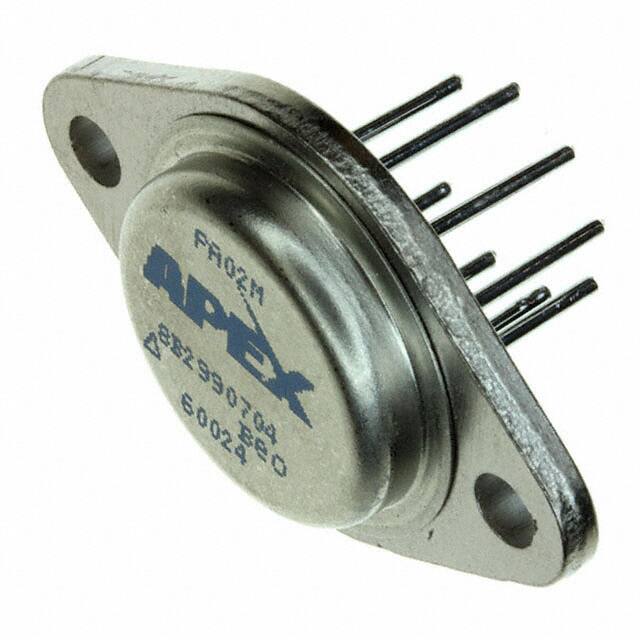

    PA61A [Apex Microtechnology]

    PA61A
    PA61A

    Part No:

    PA61A

    Category:

    Amplifier ICs

    Manufacturer:

    Apex Microtechnology

    Description:

    The PA61 and PA61A are high output current operational amplifiers designed to drive resistive, inductive and capacitive loads.

    RoHS Status:

    Datasheet:

    Stock Status:

    Available for RFQ

    Pricing:

    Request Volume Pricing

    Quote Response:

    Within 24 Hours

    Shipping:

    In-stock parts ship in 1–2 business days

    Specification

    TypeParameter
    PA61 Case Temperature Max
    +85°C
    PA61 Case Temperature Min
    -25°C
    PA61 Input Voltage Differential Max
    ±37V
    PA61 Operating Temperature Case Max
    +125°C
    PA61 Operating Temperature Case Min
    -55°C
    PA61 Output Current Max
    10A
    PA61 Package
    TO-3
    PA61 Power Dissipation Max
    97W
    PA61 Quiescent Current Max
    10mA
    PA61 Quiescent Current Typ
    3mA
    RoHS Status
    RoHS Compliant
    PA61 Supply Voltage Max
    ±45V
    PA61 Supply Voltage Min
    ±10V
    PA61 Supply Voltage Total Max
    90V
    PA61 Temperature Junction Max
    200°C
    PA61 Temperature Pin Solder Max
    350°C
    PA61 Temperature Storage Max
    +150°C
    PA61 Temperature Storage Min
    -65°C
    PA61 Thermal Resistance Ac Max
    1.2°C/W
    PA61 Thermal Resistance Ac Min
    1.0°C/W
    PA61 Thermal Resistance Air
    30°C/W
    PA61 Thermal Resistance Dc Max
    1.8°C/W
    PA61 Thermal Resistance Dc Min
    1.5°C/W
    PA61A Case Temperature Max
    +85°C
    PA61A Case Temperature Min
    -25°C
    PA61A Input Voltage Differential Max
    ±37V
    PA61A Operating Temperature Case Max
    +125°C
    PA61A Operating Temperature Case Min
    -55°C
    PA61A Output Current Max
    10A
    PA61A Package
    TO-3
    PA61A Power Dissipation Max
    97W
    PA61A Quiescent Current Max
    10mA
    PA61A Quiescent Current Typ
    3mA
    RoHS Status
    RoHS Compliant
    PA61A Supply Voltage Max
    ±45V
    PA61A Supply Voltage Min
    ±10V
    PA61A Supply Voltage Total Max
    90V
    PA61A Temperature Junction Max
    200°C
    PA61A Temperature Pin Solder Max
    350°C
    PA61A Temperature Storage Max
    +150°C
    PA61A Temperature Storage Min
    -65°C
    PA61A Thermal Resistance Ac Max
    1.2°C/W
    PA61A Thermal Resistance Ac Min
    1.0°C/W
    PA61A Thermal Resistance Air
    30°C/W
    PA61A Thermal Resistance Dc Max
    1.8°C/W
    PA61A Thermal Resistance Dc Min
    1.5°C/W

    Products Detail

    The PA61 and PA61A are high output current operational amplifiers designed to drive resistive, inductive and capacitive loads. Their complementary emitter follower output stage is the simple class C type and optimized for low frequency applications where crossover distortion is not critical. These amplifiers are not recommended for audio, transducer or deflection coil drive circuits above 1 kHz or when distortion is critical. The safe operating area (SOA) is fully specified and can be observed for all operating conditions by selection of user programmable current limiting resistors. Both amplifiers are internally compensated for all gain settings. For continuous operation under load, mounting on a heatsink of proper rating is recommended. This hybrid circuit utilizes thick film conductors, ceramic capacitors, and semiconductor chips to maximize reliability, minimize size, and give top performance. Ultrasonically bonded aluminum wires provide reliable interconnections at all operating temperatures. The 8-pin TO-3 package is electrically isolated and hermetically sealed.

    Key Features

    • Wide Supply Range: ±10 to ±45V
    • High Output Current: ±10A Peak
    • Low Cost: Class C Output Stage
    • Low Quiescent Current: 3mA
    • Internally Compensated
    • Fully Specified Safe Operating Area (SOA)
    • 8-pin TO-3 Package
    • Hermetically Sealed

    Application scenarios

    • Programmable Power Supply
    • Motor/Syncro Driver
    • Valve And Actuator Control
    • DC or AC Power Regulator
    • Fixed Frequency Power Oscillator

    Documents

    Datasheets:

    PA61, PA61A DatasheetPA61 AccessoriesTO-3-8 Pkg Drawing
    Product FAQ

    1. Is PA61A available for RFQ?

    Yes. PA61A by Apex Microtechnology is available for RFQ. Submit your required quantity and our team will confirm real-time stock, lead time, and volume pricing.

    2. Why is there no fixed price for PA61A?

    Pricing for PA61A can vary by order quantity, market availability, date code, packaging, and delivery destination. Request a quote to receive the latest volume pricing.

    3. What are the key specifications of PA61A?

    PA61A is a Apex Microtechnology Amplifier ICs with PA61A Input Voltage Differential Max: ±37V and PA61A Operating Temperature Case Max: +125°C. Review the product details or submit an RFQ if you need confirmation before purchase.

    4. How fast can I get a quote for PA61A?

    Our sales team usually responds within 24 hours after receiving your RFQ. The quote may include stock status, unit price, lead time, shipping options, and available alternatives.

    5. How soon can PA61A be shipped?

    If stock is confirmed, in-stock parts can usually ship within 1–2 business days. Final lead time depends on quantity, stock source, and delivery destination.

    6. Can you suggest alternatives to PA61A?

    Yes. If PA61A is unavailable, obsolete, or does not meet your required lead time, we can help check similar Apex Microtechnology Amplifier ICs parts or compatible alternatives.
