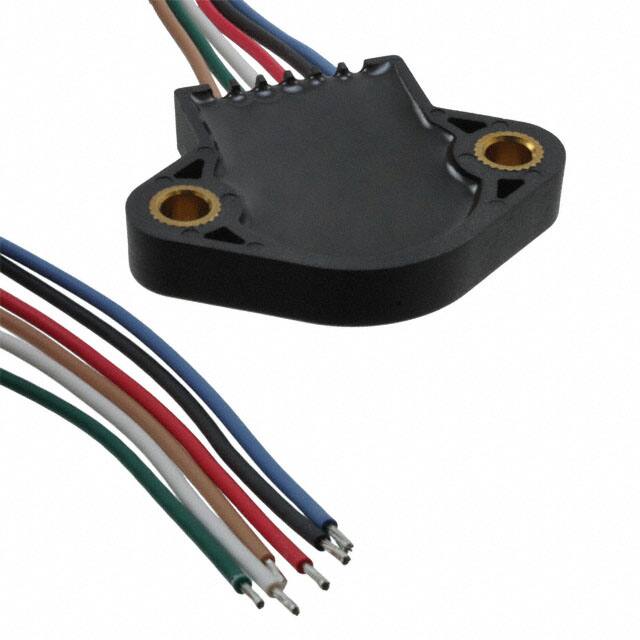

AN920032 [ZF Electronics]

Name: AN920032
Brand: ZF Electronics
SKU: AN920032
Availability: InStock

Part No:

AN920032

Motion & Position Sensors

Manufacturer:

ZF Electronics

Description:

AN9 Series For Measuring Angle Wire Leads External Magnet, Included -40°C~125°C Analog Voltage 5V ±3.5% 0° ~ 360°, Continuous Clockwise Increase Box with Wire Leads

RoHS Status:

Datasheet:

Stock Status:

Available for RFQ

Pricing:

Request Volume Pricing

Quote Response:

Within 24 Hours

Shipping:

In-stock parts ship in 1–2 business days

Specification

Type

Parameter

Factory Lead Time

18 Weeks

Mounting Type

Chassis Mount

Package / Case

Box with Wire Leads

Number of Pins

Operating Temperature

-40°C~125°C

Packaging

Bulk

Series

AN9

Published

2009

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Technology

Hall Effect

Voltage - Supply

Output

Analog Voltage

Termination Style

Wire Leads

Actuator Type

External Magnet, Included

Output Current

8mA

Linearity

±3.5%

For Measuring

Angle

Output Signal

Clockwise Increase

Rotation Angle - Electrical, Mechanical

0° ~ 360°, Continuous

RoHS Status

RoHS Compliant

Products Detail

AN920032 Overview

To prevent damage to the linear position measuring sensors, they are packaged in Box with Wire Leads packages. A Bulk package is used to package this electronic component. There are 6 pins on this sensor. It is recommended that linear position measuring sensors carry 8mA current in order to function normally.

AN920032 Features

Supply Voltage: 5V
Operating Temperature: -40°C~125°C
AN9 Series
Package / Case: Box with Wire Leads
Mounting Type: Chassis Mount
6 Pins

AN920032 Applications

There are a lot of ZF Electronics
AN920032 Angle & Linear Position Measuring Sensors applications.

Electric meters (anti tampering)
Volume control on audio equipment
Motion controllers
Dishwasher control systems
Automotive temperature range
Robotic joint position detection
Industrial motor position control
Medical robots and fitness equipment
Absolute Rotary Position Sensor
Steering Wheel Position Sensor

Documents

Datasheets:

AN9 Series Datasheet

Product FAQ

1. Is AN920032 available for RFQ?

Yes. AN920032 by ZF Electronics is available for RFQ. Submit your required quantity and our team will confirm real-time stock, lead time, and volume pricing.

2. Why is there no fixed price for AN920032?

Pricing for AN920032 can vary by order quantity, market availability, date code, packaging, and delivery destination. Request a quote to receive the latest volume pricing.

3. What are the key specifications of AN920032?

AN920032 is a ZF Electronics Motion & Position Sensors with Packaging: Bulk and Rotation Angle - Electrical, Mechanical: 0° ~ 360°, Continuous and Moisture Sensitivity Level (MSL): 1 (Unlimited). Review the product details or submit an RFQ if you need confirmation before purchase.

4. How fast can I get a quote for AN920032?

Our sales team usually responds within 24 hours after receiving your RFQ. The quote may include stock status, unit price, lead time, shipping options, and available alternatives.

5. How soon can AN920032 be shipped?

If stock is confirmed, in-stock parts can usually ship within 1–2 business days. Final lead time depends on quantity, stock source, and delivery destination.

6. Can you suggest alternatives to AN920032?

Yes. If AN920032 is unavailable, obsolete, or does not meet your required lead time, we can help check similar ZF Electronics Motion & Position Sensors parts or compatible alternatives.
