Модули преобразования данных

12-bit parallel digital-to-analog converter evaluation module (EVM) for TLV5619 and TLV5639

The TLV2553EVM-PDK is an evaluation platform for the TLV2553 12-bit, 200-kSPS SAR ADC, featuring an 11-channel analog input multiplexer and SPI digital interface.

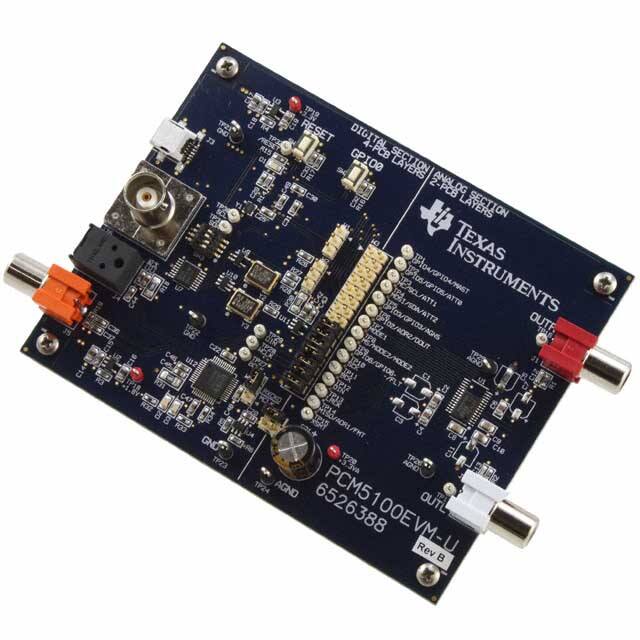

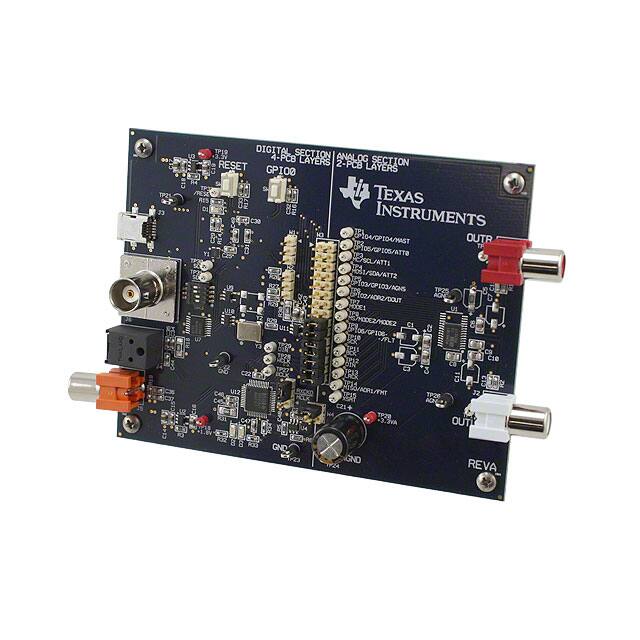

The PCM510xEVM-U is an evaluation module for the PCM5100, PCM5101, and PCM5102 stereo DACs, featuring USB interface and onboard sample rate conversion.

The PCM510x family of ICs are advanced segment, high-performance, hardware-programmable stereo digital-to-analog converters (DACs). The PCM510xEVM-U is designed to support the PCM5100, PCM5101, and PCM5102 DACs.

The LM97937EVM is an evaluation board used to evaluate the LM97937 analog-to-digital converter (ADC) from TI. The LM97937 device is a dual-channel, 9-bit ADC with SNR Boost and Bit-Burst signal processing capable of operating at sampling rates up to 370 MSPS.

The KAD5612P is a family of low-power, high-performance, dual-channel 12-bit, analog-to-digital converters.

Konverter Analyzer evaluation platform for high-speed ADCs (40MSPS to 500MSPS) with hardware and software for ADC measurement and analysis.

The KAD5512HP is the high-performance member of the KAD5512 family of 12-bit analog-to-digital converters.

Evaluation board schematics for KDC5512, KDC5512H, and KDC5514 devices.

Schematics for evaluation boards KDC5512-Q48EVAL, KDC5512H-Q48EVAL, and KDC5514-Q48EVAL.

The ISLA224S is a series of low-power, high-performance, dual-channel 14-bit, analog-to-digital converters. Designed with FemtoCharge™ technology on a standard CMOS process, the series supports sampling rates of up to 250MSPS.

The ISLA214P is a series of low power, high performance 14-bit analog-to-digital converters. Designed with Intersil’s proprietary FemtoCharge™ technology on a standard CMOS process, the series supports sampling rates of up to 250MSPS.

The ISLA110P50 is a low-power, high-performance, 500MSPS analog-to-digital converter designed with Intersil’s proprietary FemtoCharge™ technology on a standard CMOS process. It is part of a pin-compatible portfolio of 8, 10 and 12-bit A/Ds.

The ISL5x29EVAL1 evaluation board provides a quick and easy method for evaluating the ISL5629, 5729, 5829, 5929 (8-,10-, 12-, or 14-bit), 130/210MSPS high-speed dual DACs.

The ISL5x29EVAL1 evaluation board provides a quick and easy method for evaluating the ISL5629, 5729, 5829, 5929 (8-,10-,12-, or 14-bit), 130/210MSPS high-speed dual DACs.

The ISL5757 is a 10-bit, 260+MSPS (Mega Samples Per Second), CMOS, high speed, low power, D/A (digital to analog) converter, designed specifically for use in high performance communication systems such as base transceiver stations utilizing 2.5G or 3G cellular protocols.

The ISL5757 is a 10-bit, 260+MSPS, CMOS, high speed, low power, D/A converter, designed for high performance communication systems.

The ISL5x29EVAL1 evaluation board provides a quick and easy method for evaluating the ISL5629, 5729, 5829, 5929 (8-,10-, 12-, or 14-bit), 130/210MSPS high-speed dual DACs.

The ISL5x29EVAL1 evaluation board provides a quick and easy method for evaluating the ISL5629, 5729, 5829, 5929 (8-,10-, 12-, or 14-bit), 130/210MSPS high-speed dual DACs.

Dual 14 bits DAC, up to 160 MHz, 2 x interpolating. The DAC1403D160 is optimized to reduce architecture complexity and overall system cost.

The DAC1201D125 is a dual-port, high-speed, 2-channel CMOS Digital-to-Analog Converter (DAC), optimized for high dynamic performance with low power dissipation. Supporting an update rate of up to 125Msps, the DAC1201D125 is suitable for Direct IF applications.

The HI5860 is a 12-bit, 130MSPS (Mega Samples Per Second), high speed, low power, D/A converter which is implemented in an advanced CMOS process.

The HI5828EVAL2 evaluation board provides a quick and easy method for evaluating the HI5828, 125MSPS Dual High Speed DAC.

The HI5760EVAL1 evaluation board provides a quick and easy method for evaluating the HI5760, 125 MSPS high speed DAC.

The HI5741 is a 14-bit 100MHz Digital to Analog Converter designed for low glitch and high Spurious Free Dynamic Range operation.

The HI5731 is a 12-bit 100MHz Digital-to-Analog Converter designed for low glitch and high Spurious Free Dynamic Range operation, ideal for Signal Reconstruction and DDS applications.

The HI5728EVAL1 evaluation board provides a quick and easy method for evaluating the HI5728, 125MSPS Dual High Speed DAC.

Evaluation board for HI5628IN 125MSPS dual 8-bit CMOS DAC.

The DEM-DAI1742 is a complete evaluation platform for the PCM1742 24-bit, 192kHz stereo audio DAC.

The DEM-DAI1737/1739 is a complete evaluation platform for the PCM1737 and PCM1739 24-bit stereo, audio digital-to-analog converters.

DEM-DAI1738 evaluation fixture for the PCM1738 stereo digital-to-analog (D/A) converter.

Evaluation fixture for PCM1737 and PCM1739 24-bit stereo audio DACs.

The DEM-DAI1604 demonstration board provides an ideal platform for evaluating the performance and operation of the PCM1604 six-channel audio digital-to-analog converter.

The PCM1602 is a CMOS, monolithic integrated circuit that features six 24-bit audio digital-to-analog converters (DACs) and support circuitry in a small LQFP-48 package.

Evaluation fixture for the DAC90x high-speed digital-to-analog converter family, supporting 8-bit to 14-bit models.

Evaluation fixture for the DAC90x family of high-speed digital-to-analog converters, supporting SO-28 and TSSOP-28 packages.

Evaluation fixture for the DAC90x high-speed digital-to-analog converter family.

The LTC®2311-16 is a low noise, high speed 16-bit successive approximation register (SAR) ADC with differential inputs and wide input common mode range.

Analog to Digital Converters (ADCs) Evaluation Boards ROHS

Инструменты разработки ИС преобразования данных LTC2376-18 Демонстрационная плата с LTC6655-5/LT6

The LTC2487 is a 4-channel (2 differential), 16-bit, no latency DS ADC with Easy Drive technology and a 2-wire, I2C interface.

LTC2489 16-Bit 2-/4-Channel DΣ ADC with Easy Drive Input Current Cancellation and I²C Interface

This user’s guide describes the characteristics, operation, and the use of the DAC8881 evaluation module.

The DAC8562EVM is an evaluation board for the DAC7562 and DAC8562 low-power, voltage-output 12- or 16-bit digital-to-analog converters (DACs), controlled via SPI up to 50MHz and featuring a 2.5V internal reference.

The DAC7741EVM is an evaluation module for the DAC7741 high-resolution, single-channel, parallel input digital-to-analog converter. It provides a platform for evaluating the DAC7741 functionality and includes features such as a parallel interface and onboard reference circuit.

DAC1653Q and DAC1658Q are high-speed, high-performance 16-bit quad channel Digital-to-Analog Converters (DACs) with sample rates up to 2 Gsps and selectable ×2, ×4, ×8 interpolation filters.

DAC1653D and DAC1658D are high-speed, high-performance 16-bit dual channel Digital-to-Analog Converters (DACs). The devices provide sample rates up to 2 Gsps with selectable ×2, ×4 and ×8 interpolation filters optimized for multi-carrier and broadband wireless transmitters.

DAC1653Q and DAC1658Q are high-speed, high-performance 16-bit quad channel Digital-to-Analog Converters (DACs) with sample rates up to 2 Gsps.

The DAC1617D1G0 is a high-speed 16-bit dual channel Digital-to-Analog Converter (DAC) with selectable ×2, ×4 and ×8 interpolation filters. The device is optimized for multi-carrier and broadband wireless transmitters at sample rates of up to 1Gsps.

The DAC1617D1G0 is a high-speed 16-bit dual channel Digital-to-Analog Converter (DAC) with selectable ×2, ×4 and ×8 interpolation filters.
